Replacing consumable items> 90
3. Lift each of the image drum units out of the printer and
place them in a safe place away from direct sources of
heat and light.

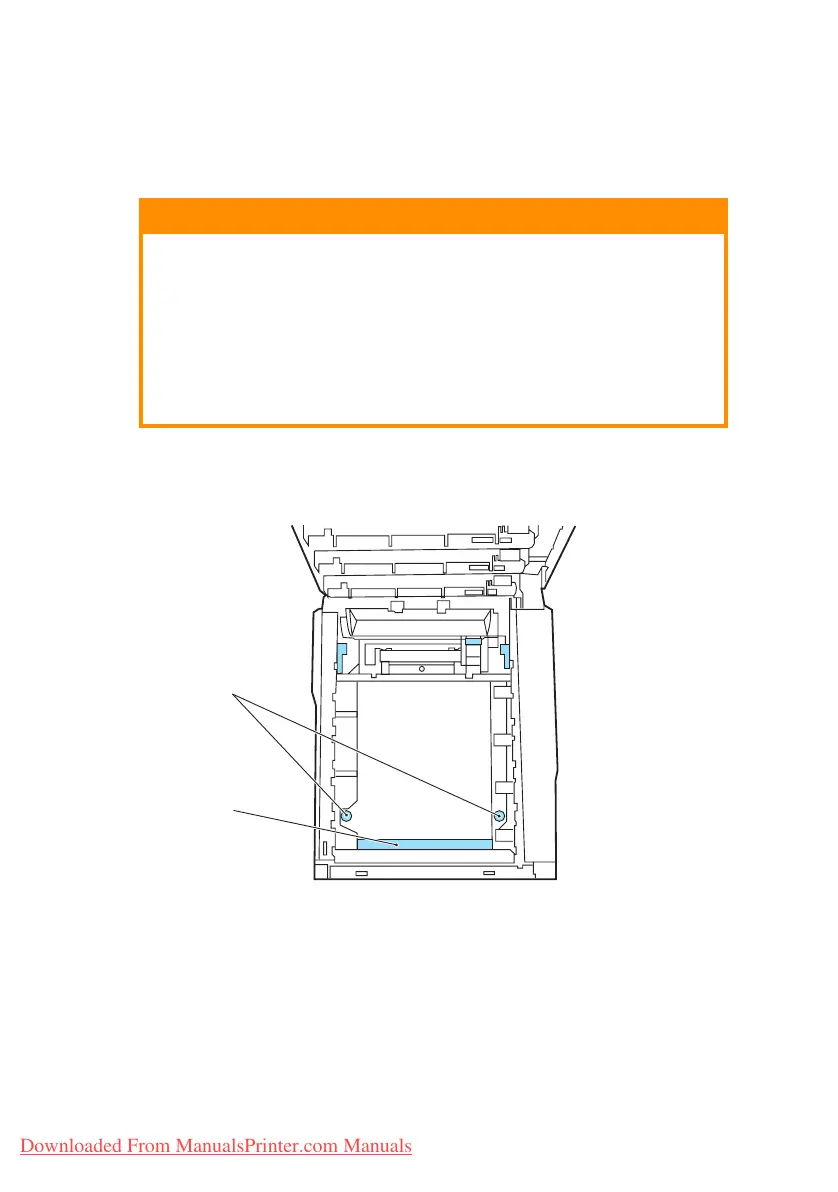

4. Locate the two fasteners (5) at each side of the belt and
the lifting bar (6) at the front end.
5. Turn the two fasteners 90° to the left. This will release the
belt from the printer chassis.
6. Pull the lifting bar (6) upwards so that belt tilts up towards
the front, and withdraw the belt unit from the printer.
CAUTION!
The green image drum surface at the base of each
cartridge is very delicate and light sensitive. Do not
touch it and do not expose it to normal room light for
more than 5 minutes. If the drum unit needs to be out of
the printer for longer than this, please wrap the
cartridge inside a black plastic bag to keep it away from
light. Never expose the drum to direct sunlight or very
bright room lighting.
