Vehicle Dimensions
Length 200.4 inches (509.0 cm). . . . . . . . . . . . . . . . .
Width 74.1 inches (188.2 cm). . . . . . . . . . . . . . . . . . .
Height 55.7 inches (141.5 cm). . . . . . . . . . . . . . . . . . .
Wheelbase 110.8 inches (281.4 cm). . . . . . . . . . . . . .
Tread Width
Front 60.4 inches (153.4 cm). . . . . . . . . . . . . . . . . . . .
Rear 60.4 inches (153.4 cm). . . . . . . . . . . . . . . . . . . .
L36 Engine Accessory Belt

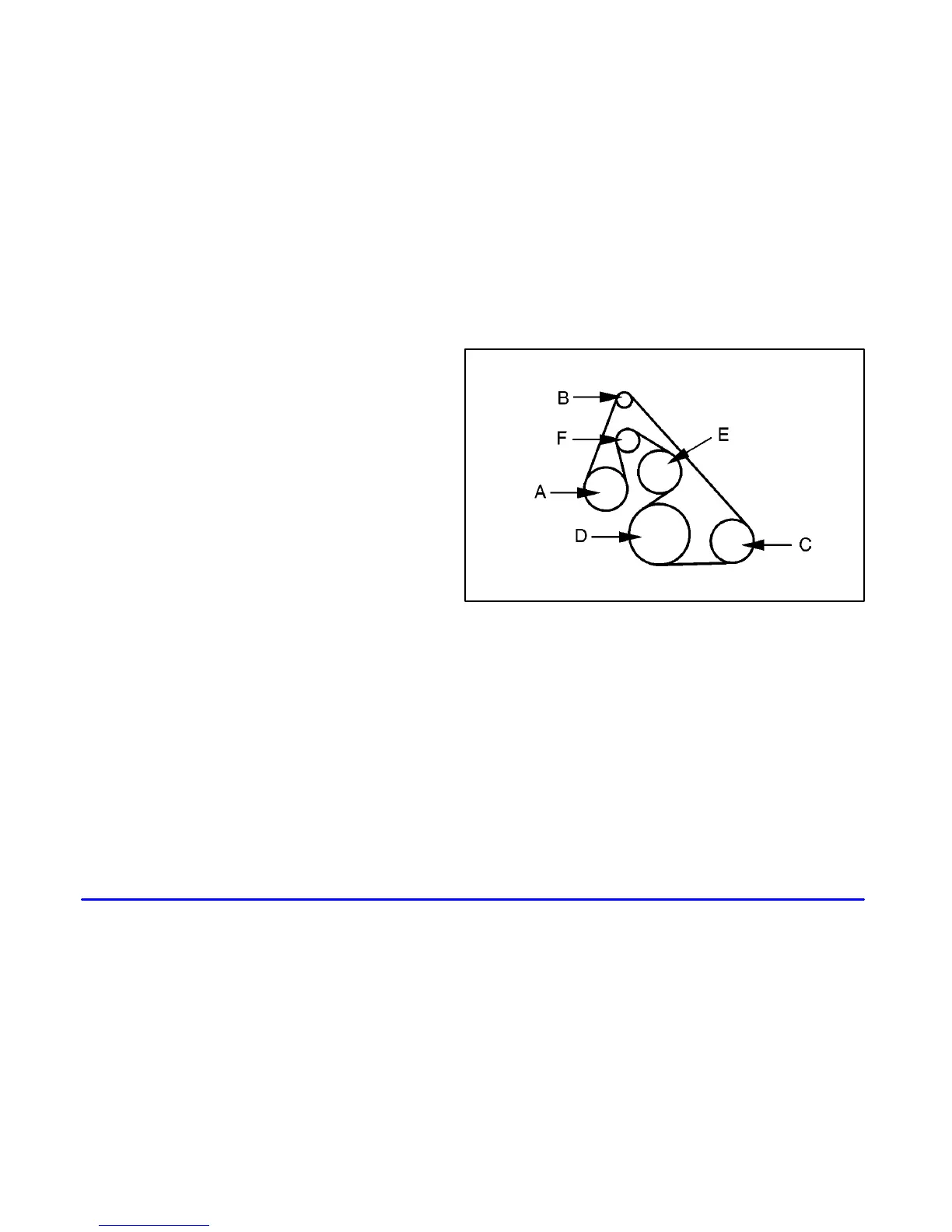

The L36 engine uses an engine accessory belt. This
diagram shows the features connected and the routing.
See “Maintenance Schedule” in the Index for when to
check the belt.
A. Power Steering
B. Generator
C. Air Conditioning
D. Crank
E. Coolant Pump
F. Tensioner
