6-11

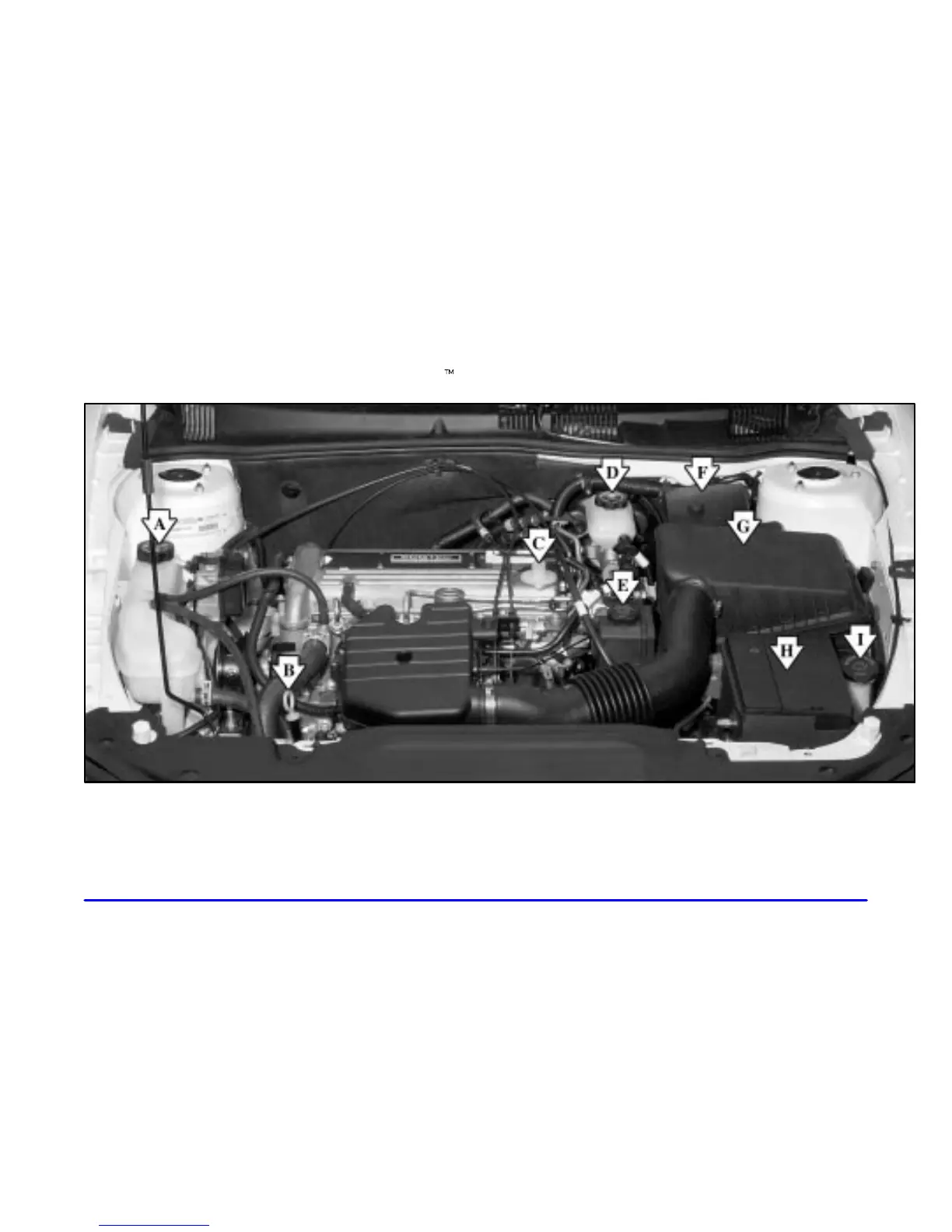

Engine Compartment Overview
When you open the hood on the 2.2L L4 ECOTEC
t
engine, you’ll see the following:
A. Engine Coolant Surge Tank
B. Engine Oil Dipstick
C. Engine Oil Fill Cap
D. Brake Fluid Reservoir
E. Power Steering Fluid Reservoir
F. Engine Compartment Fuse Block
G. Engine Air Cleaner/Filter
H. Battery
I. Windshield Washer
Fluid Reservoir
