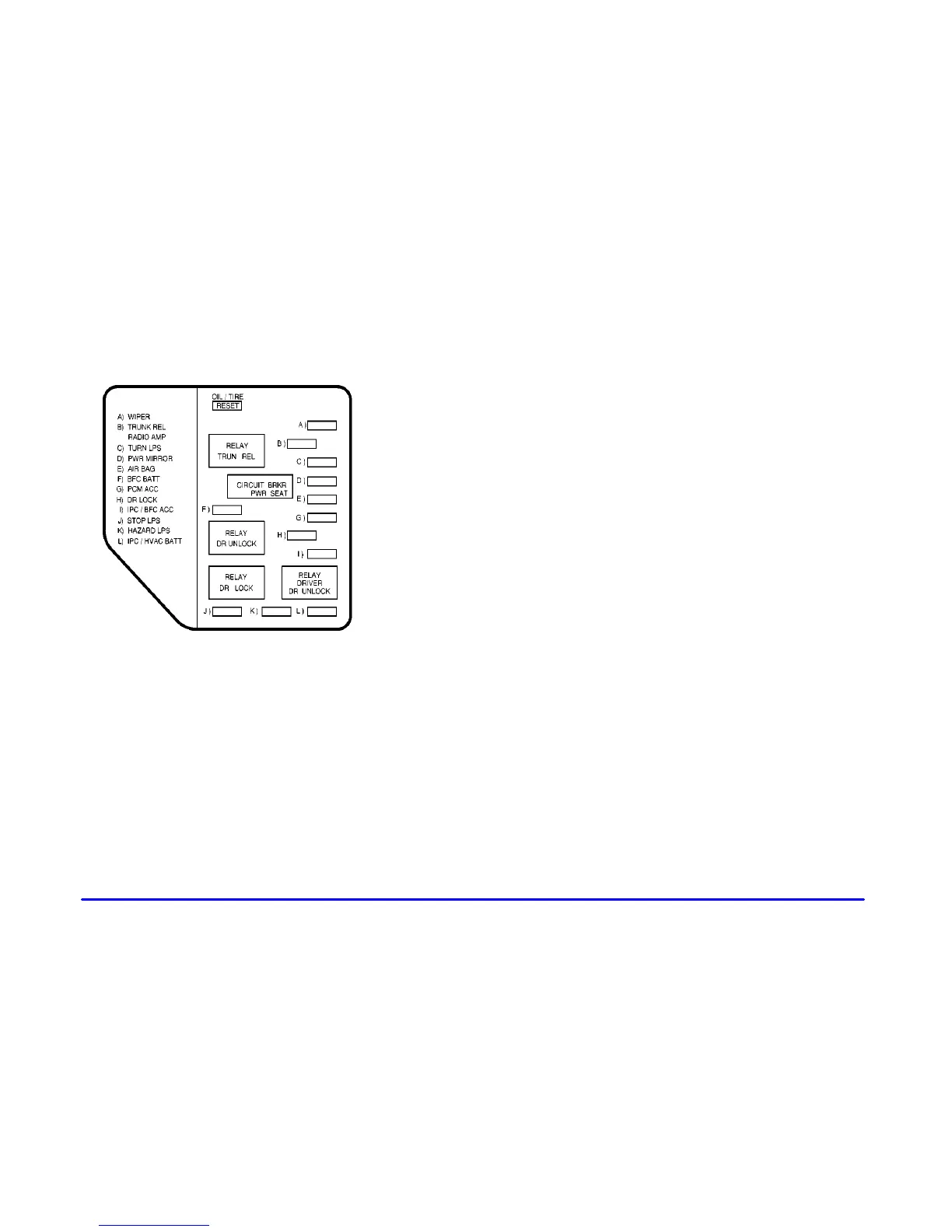

Instrument Panel Fuse Block -- Driver’s Side
Fuse Usage
WIPER Windshield Wiper Motor,
Washer Pump
TRUNK
REL/RADIO
AMP
Trunk Release Relay/Motor,
Audio Amplifier/RFA
TURN LPS Turn Signal Lamps
PWR MIRROR Power Mirrors
Fuse Usage
AIR BAG Air Bags
BFC BATT Body Computer (BFC)
PCM ACC Power Control Module (PCM)
DR LOCK Door Lock Motors
IPC/BFC ACC Cluster, Body Computer (BFC)
STOP LPS Stop Lamps
HAZARD LPS Hazard Lamps
IPC/HVAC
BATT
HVAC Head, Cluster,
Data Link Connector
Circuit Breaker Usage
PWR SEAT Power Seats
Relay Usage
TRUNK REL Trunk Relay
DR UNLOCK Door Unlock Relay
DR LOCK Door Lock Relay
DRIVER
DR UNLOCK
Driver’s Door Unlock Relay
