Taillamps, Turn Signal, and
Stoplamps

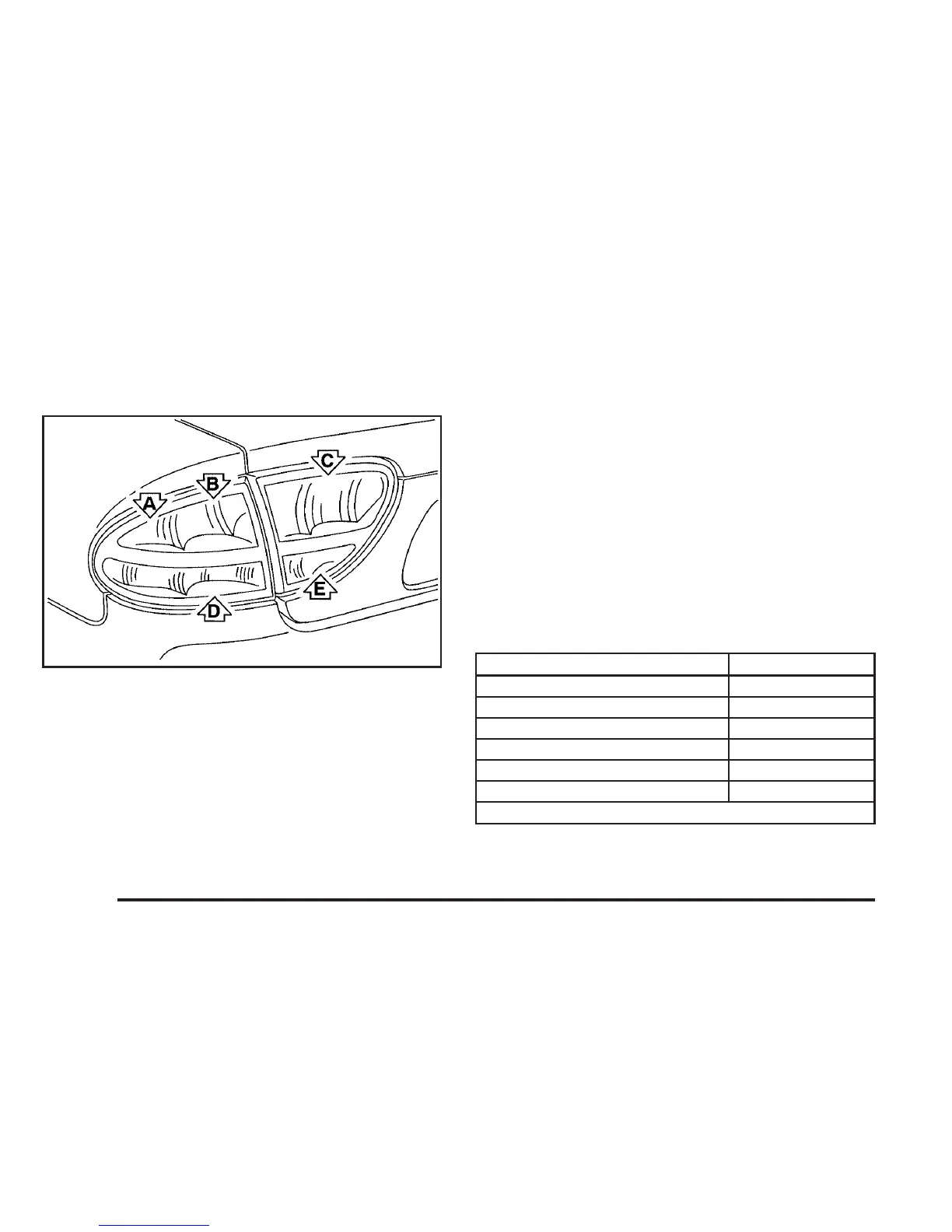

A. Taillamp
B. Tail/Brake Lamp
C. Taillamp
D. Turn Signal
E. Back-Up Lamp
1. Disconnect the cargo net in the trunk.
2. Pull back the trunk trim.
3. Remove the three wing nut bolts which fasten the
taillamp lens to the vehicle.
4. Carefully remove the taillamp lens from the body
and avoid scratching the paint or dropping it.
5. Turn the bulb socket 1/6 of a turn counterclockwise
and pull out the bulb assembly.
6. To remove a bulb, gently pull the bulb out from the
socket. Put in a new bulb.
7. Reverse Steps 3 through 5 to reassemble the
taillamp.
Replacement Bulbs
Exterior Lamps Bulb Number
Center High-Mounted Stop Lamp 912
Turn Signal Lamps 3157
Stop/Taillamps 3157
Halogen Headlamps-Low Beam 9006
Halogen Headlamps-High Beam 9005
Parking/Turn Signal Lamps 3157NA or 3157A
For any bulb not listed here contact your dealer.
