Olimpia splendid B0152 - Device Overview; Dimensions; LCD Display Key; Regulator Controls

DIMENSIONS (fig. 1)

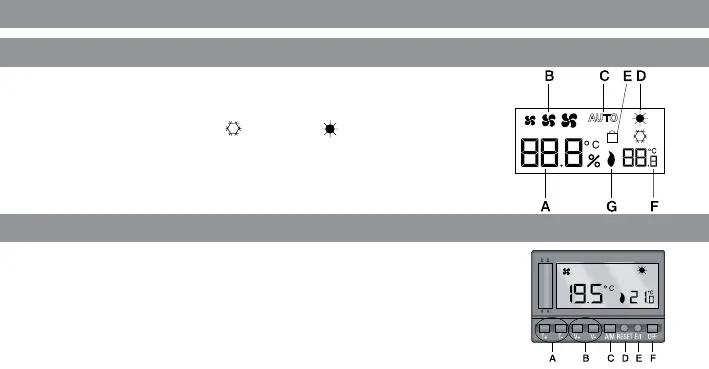

LCD DISPLAY KEY (fig. 6)
REGULATOR CONTROLS KEY (fig. 7)
A. Displays room temperature
B. Indicates fan speed
C. Automatic fan speed mode enabled
D. Summer (air conditioning) ( ) or winter ( ) mode
E. Indicates keypad lock enabled
F. Displays temperature entered
G. System working (steady light)
or locked by minimum thermostat operation (flashing light)
A. Temperature keys (T+/T-)
B. Fan speed keys (V+/V-)
C. Automatic fan mode key (A/M)
D. RESET key to restart the device (RESET)
E. Summer/winter mode key (E/I)
F. System OFF key (OFF)
230V~/50Hz (+10% -15%)
3VA
5°C÷35°C
0,1°C
0÷40°C (resolution 0,1°C)
SETTABLE (0,5K factory setting)
NTC 100K @25°C ±1%
NTC 2K @25°C with double insulation
4 Relays (3 motor speeds + 1 solenoid valve)
3(1A) – 250Vac
IP 20 (with installed product)
2
A
1K/15min.
50°C
20% .. 80% RH (non-condensing)
0÷60°C
SUMMER/WINTER (heating/air conditioning)
in standard, 3-module flush-mounting box (DIN503)
