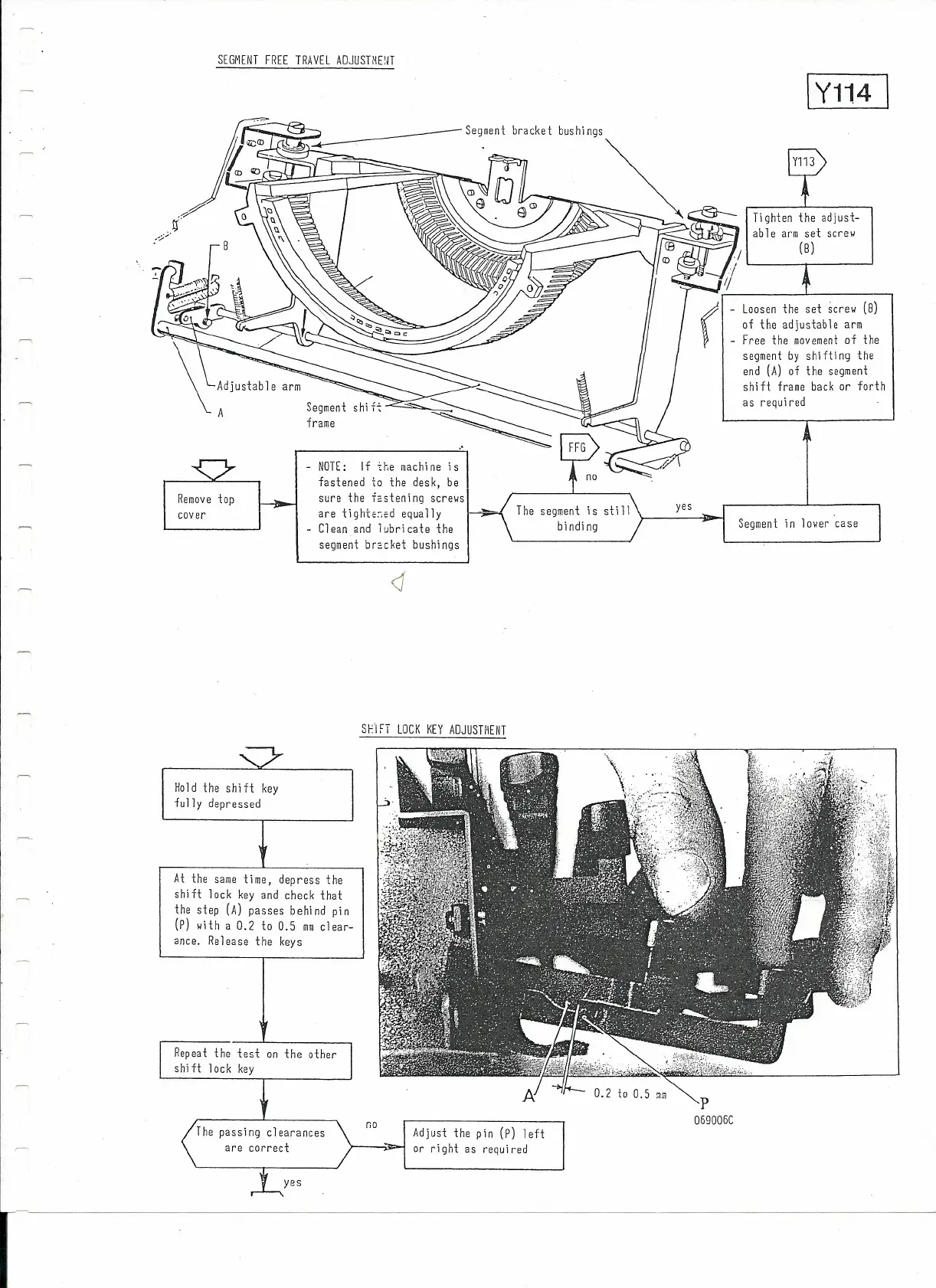

SEGMENT FREE TRAVEL ADJUSTHE~T
!Y114
I
Tighten the adjust-
able arm set scre~
(8)
~
~--------------------~,
Segment
frame
Laasen the set scre~ (B)
af the adjustable arm
Free the mavemenl af lhe
segmenl
by
shifling lhe
end (A) af the segment
shift frame back ar forth
as required
Remove tap
caver
NOTE: If :r.e machine is
fastened to lhe desk, be
sure the T"slening scre~s
are tightE~Ed equally
Clean and lubricate the
segment br=cket bushings
Segmenl in 1over ·case
S~lFT LOCK KEY ADJUSTMENT
Ho1d the shift key
fu11
y
depressed
AI the same time, depress the
shifl 10ck key and check that
the s
t
ep (A) passes behind pin
(p)
w
ith a O. 2 to O.5 mm c1ea
r-
ance. ReI ease lhe keys
Repeat lhe lesl on lhe olher
shift 1ack key
The passing c1earances
are carrect
no
P
069006C
Adjust the pin (p) 1eft
)----ilIo-l
or righl as required
