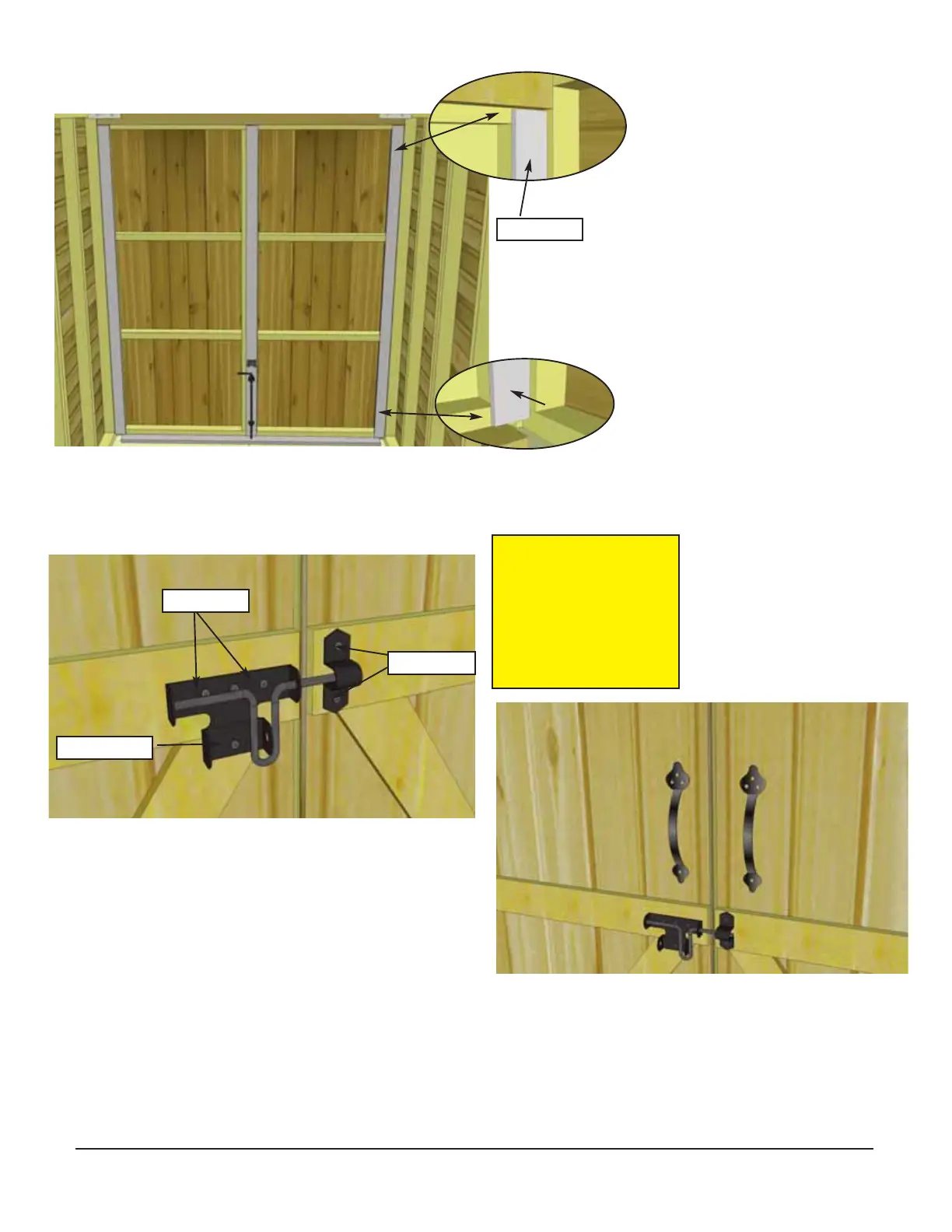

77. Attach Black Barrel Bolt (Part L) as
illustrated above with 2” & 3/4” Black Screws
(Parts I &J).
Note how female part of Barrel Bolt is positioned
higher than male. Do a dry run first to position
Barrel Bolt correctly. Important - Drill a shallow
pilot hole with 1/8” drill bit prior to securing with
screws to prevent wood splitting.
78. Attach Door Handles (Part K) with
3/4” Black Screws (Part J).
2” Screws
2” Screws
3/4” Screw
76. Position Door Stops
1/2” x 2 1/2” x 71” (Part 4U) in
each corner screwing into door
framing using 6 - 2” screws
(Part E). Before attaching stop
to door, check positioning to
confirm Door Stop does not
bind and adjust accordingly.
Door Stop
Important - Drill pilot
holes with 1/8” drill bit
prior to securing with
screws to prevent
wood splitting. On 3/4”
screw, drill shallow
pilot hole only.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 32
