A. Floor Section
Plywood Flooring - 2 pcs.
(Part 1D)
Floor Frames 2 pcs.
(Part 1A)
Floor Runners - 3 pcs.
(Part 1C)

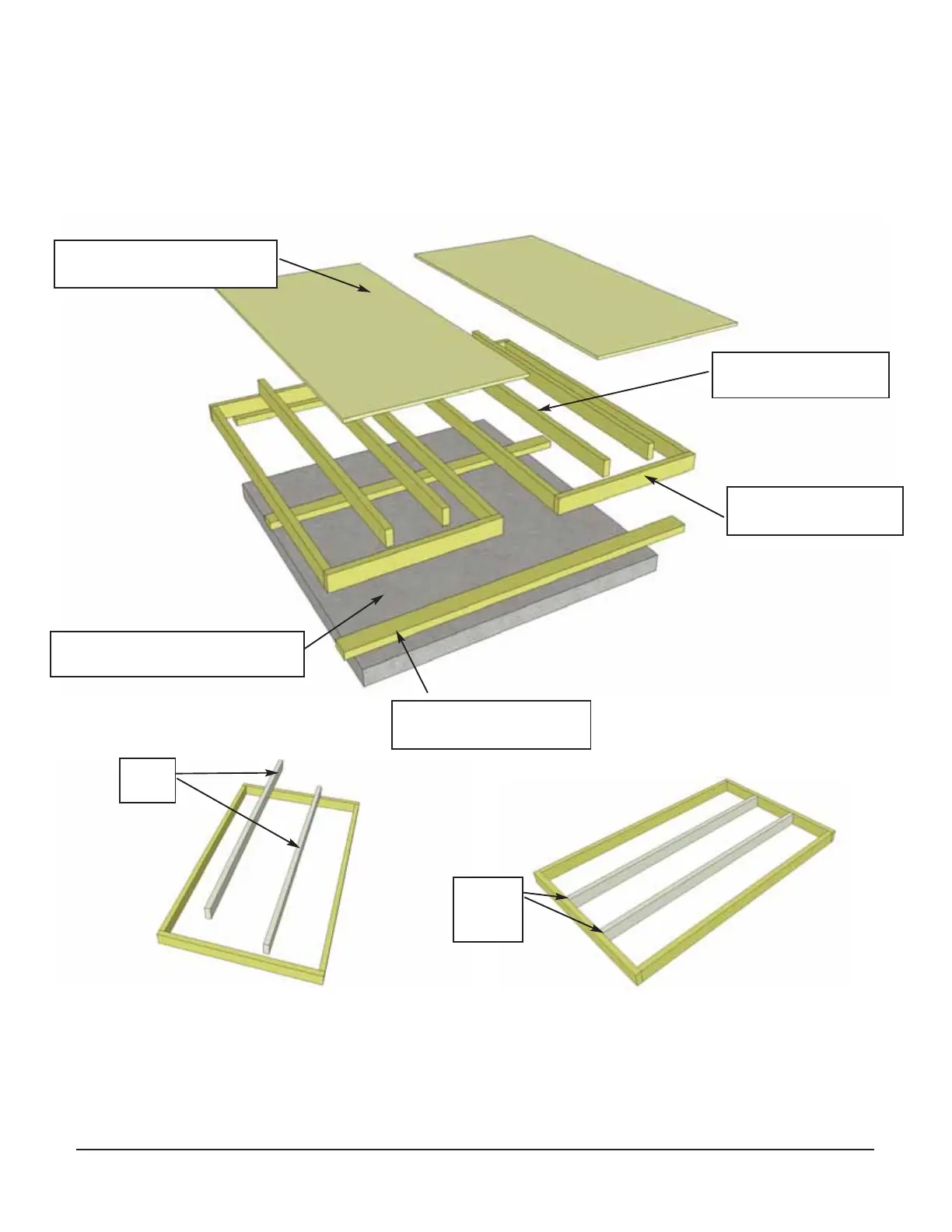

Exploded view of all parts necessary to complete
Floor Section. Identify all parts prior to starting.
Note, Floor Footprint is 70” wide x 75” deep.
Concrete Pad
(optional foundation method)
1. Lay out one Floor Frame Section (Part 1A) and Floor Joists 2 @ 1 1/2” x 3 1/2” x 72” (Part 1B)
as illustrated above. Space joists equally in floor frame section flush with framing.
Flush
with
framing
Floor Joists - 4 pcs.
(Part 1B)
Floor
Joists
Front
