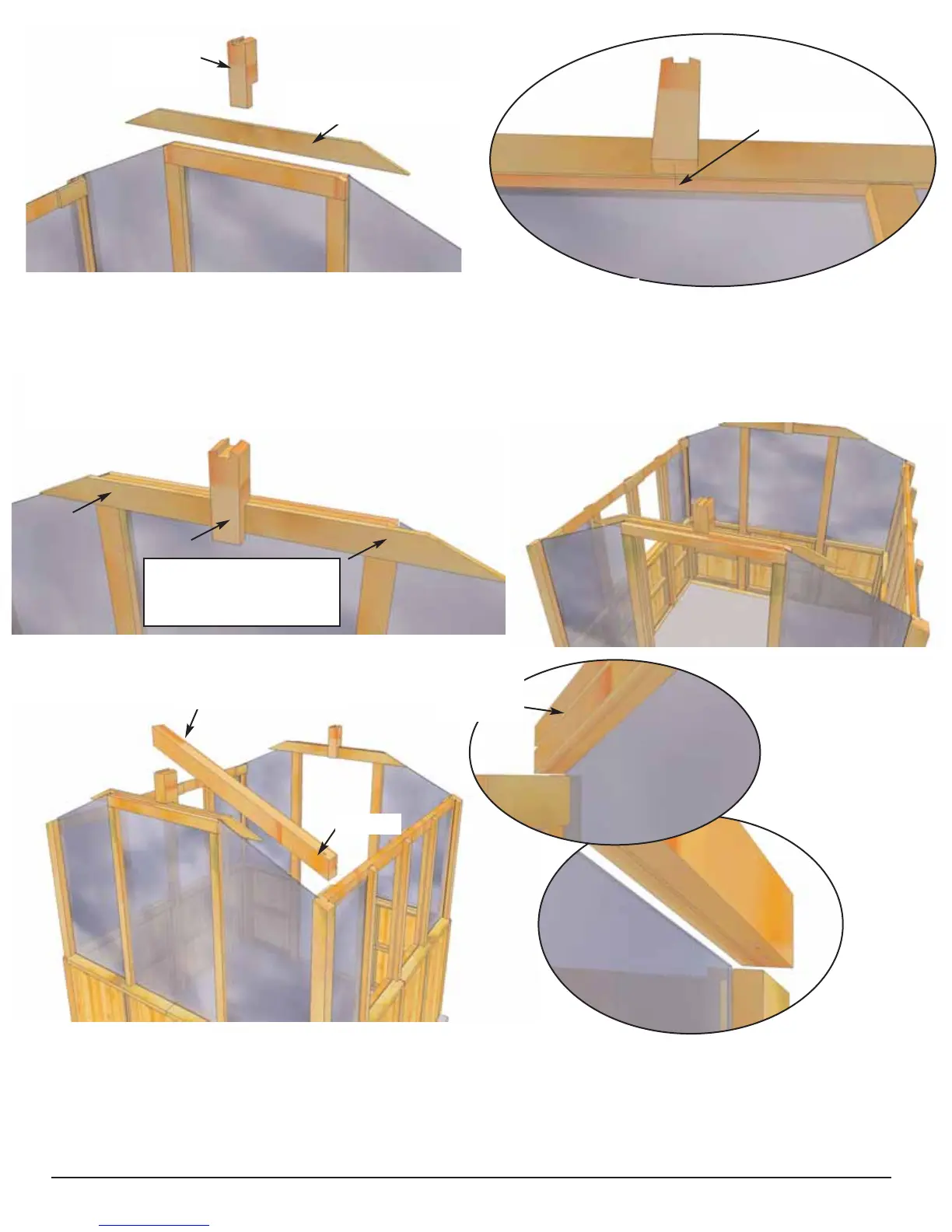

31. Locate Parts O & Q - King Stud and Gable Support Frame.
Using a tape measure, mark centers on bottoms of Horizontal Top Cap /
King Stud / Gable Support Frame. Center Gable Support on Cap and tack
together only with 2 - 2” screws. Center King Stud on Support Frame and
tack also with 1 - 3” screws. Complete both front and back pieces. In
Step 42., some adjustment may be required. Completely attach then.
Part O
King Stud.
Part Q
Gable Support Frame.
Mark Centers
32. Locate Part N - Outside Roof Rafters - 3 1/2” x 3 1/2” x 51”. There are Left and
Right Rafters. Starting with a Right Rafter as configured above, lift up and position on Post.
Outside Roof Rafter
Drilled
Dado Cut
to inside.
Tack in screws to hold
in position. Complete
in Step 42.
