Thank you for purchasing our 8x8 Cedar Greenhouse.

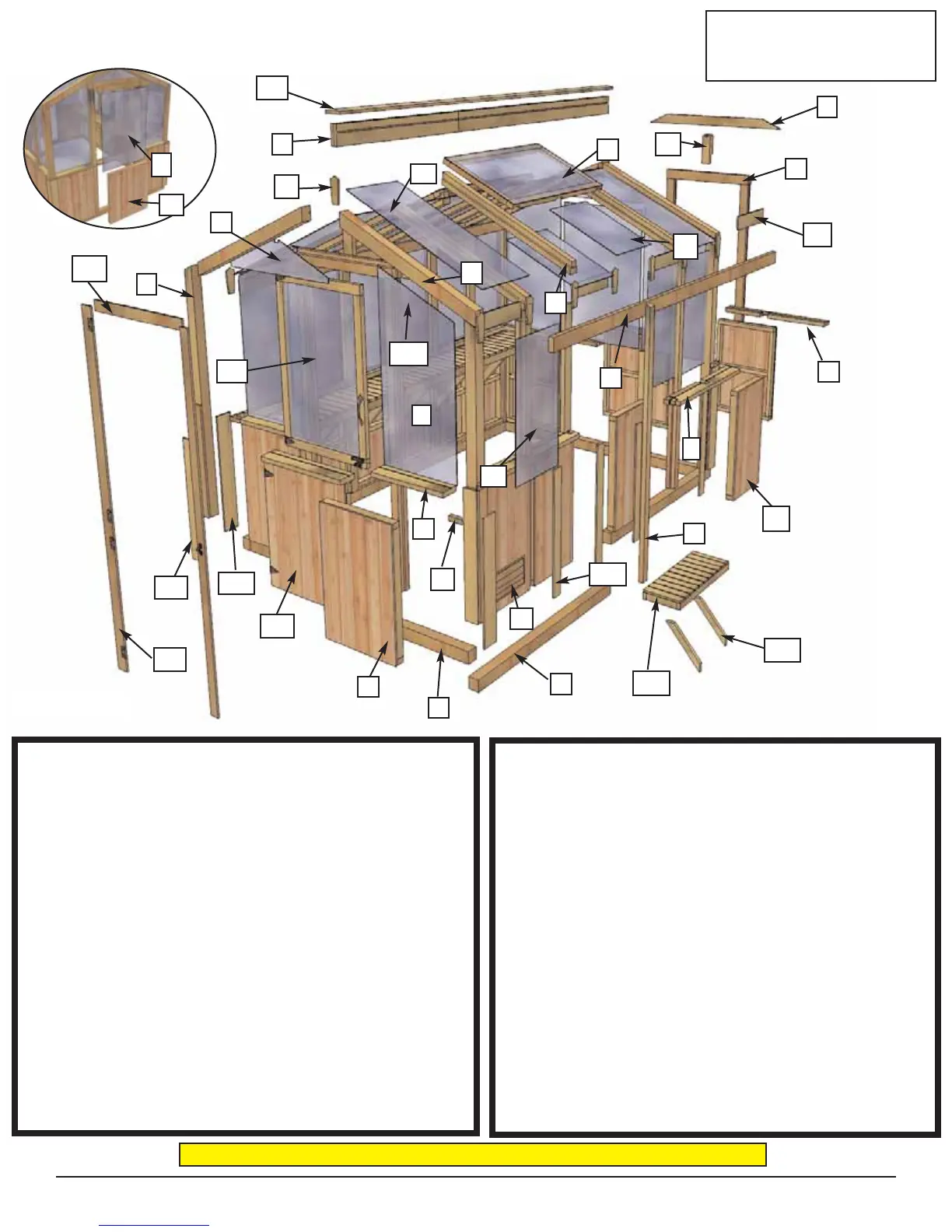

Please take the time to identify all the parts prior to assembly.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 2
Note: All Trim Pieces will be positioned rough face out when installed.
B
A
D
C
E
I
N
O
P
K
H
T
J
W
U
Q
X
Y
S
LL
II
AA
BB
R
HH
GG
FF
Z
DD
EE
JJ
M
MM
NN
KK
F
G
L
Rear
U - 3 1/4” x 3 1/2” x 50 3/4”.Roof Rafters (2x3,2x4 attached)...x 6 pcs.
V - 3/4” x 2 1/2” x 49” Inside Vent Framing Support ................x 1 pc.
W - Side Polygal Windows (21’ x 37”) ......................................x 8 pcs.
X - Roof Polygal Windows (21” x 51”).....................................x 6 pcs.
Y - Small Roof Polygal Window (21” x 24 1/2”) .....................x 2 pcs.
Z - Vent Hinged Polygal Window...............................................x 1 pcs.
AA - 32 1/2” x 35 1/2” Bottom Dutch Door ................................x 1 pc.
BB - 32 1/2” x 47” Top Dutch Door ............................................x 1 pc.
CC - 3/4” x 2 1/2” x 87 1/4” Front Vertical Door Frame Filler ...x 2 pcs.
CCC - 3/4” x 2 1/2” x 33”..Front Hor.Door Frame Filler .............x 1 pc.
DD - 1/2” x 2 1/2” x 84 1/4”......Vertical Door Trim.....................x 2 pcs.
EE - 1/2” x 2 1/2” x 38”....Horizontal Door Trim...........................x 1 pc.
FF - 1/2” x 4 1/2” x 34 7/8”.Outside Post Trim- Narrow...............x 4 pc.
GG - 1/2” x 5 1/2” x 34 7/8”....Outside Post Trim- Wide..............x 4 pc.
HH - 1/2” x 3 1/2” x 34 7/8”......Vertical Wall Trim.....................x 12 pc.
II - 1 1/2” x 1 1/2” x 5”.....Corner Post Trim................................x 8 pcs.
JJ - 1 1/2” x 3 1/2” x 10”.....Detail Caps...................................x 12 pcs.
KK - 1” x 5 1/2” x 47 5/8”....Top Ridge Cap...............................x 2 pcs.
LL - 1/2” x 4” (4@ 19 1/8” & 4@ 19 1/2”).Side Soffits ............x 8 pcs.
MM - 16” x 43 3/4”.....Potting Shelves.......................................x 4 pcs.
NN - 1 1/2” x 2 1/2” x 20 1/2”.....Potting Shelf Supports............x 8 pcs.
** Temporary Post/ Wall Supports (3” high x 2.5” wide) ..........x 2 pcs.
** Rafter Template Spacer 1 1/2” x 3 1/2” x 20 3/16” long........x 1 pc.
V - Inside Vent Frame
CC - Front Vertical Door Filler
CCC- Front Hor. Door Filler
Not Shown.
Parts list
A - 4x4 - 44.25”...Foundation Posts - Front and Rear ..................x 4 pcs.
B - 4x4 - 47 3/4”........Foundation Posts - Sides ...........................x 4 pcs.
C - 3 1/2” x 3 1/2” - 76”...Vertical Corner Posts ............................x 4 pcs.
D - 25 1/2” x 35”..Front/Rear Walls ...............................................x 4 pcs.
E - 20 1/4” x 35”..Wide Side Wall with Vent ..................................x 4 pcs
F - 20 1/4” x 35”..Wide Side Wall ..................................................x 4 pcs.
G - 32 7/8” x 35”.Wide Rear Center Wall.......................................x 1 pc.
H - 1 1/2” x 5 1/2” x 44 1/2” Rear Wall Top Cap - Notched...........x 2 pcs.
I - 3 1/4” x 3 1/2” F/R Doorway/Wall Frame (Vertical/Hor.) ..........x 2 sets.
(2 Vertical Posts - 87 1/4” / 1 Horizontal Top Cap - 38” long)
J - 1 1/2” x 5 1/2” x 25 3/8”...Front Wall Top Cap (L&R)................x 2 pcs.
K - F/R Outside Angle Cut Polygal Windows (26 1/2” x 51 1/8”).x 4 pcs.
L - Rear Center Polygal Window (33 3/4” x 48 3/8”)......................x 1 pc.
M - F/R Top Triangular Polygal Windows.......................................x 2 pcs.
N - 3 1/2” x 3 1/2” x 51”..Outside Roof Rafters (dado/drilled)........x 4 pcs.
O - F/R King Stud..........................................................................x 2 pcs.
OO - 1 1/2” x 1 1/2” x 27 1/2” Exterior Rafter/ Doorway Supports.x 4 pcs
(See Step 39, Page 20 for details)
P - 2” x 5.5” x 59 1/4”...Roof Ridge Boards...................................x 2 pcs.
Q - 3/4” x 3 1/2” x 58 1/2”.Gable Support Frame-angle cut ends..x 2 pcs.
R-3 1/4” x 3 1/2” x 75 1/4”Side Vertical Posts(2x3/2x4 attached) x 6 pcs.
S - 1 1/2” x 3 1/2” x 44 1/8” ..Side Top Supports(Bevel Edge)......x 4 pcs.
T - 1 1/2” x 5 1/2” x 44 1/8” ..Side Wall Top Cap - Notched .........x 4 pcs.
OO
To Next Page
