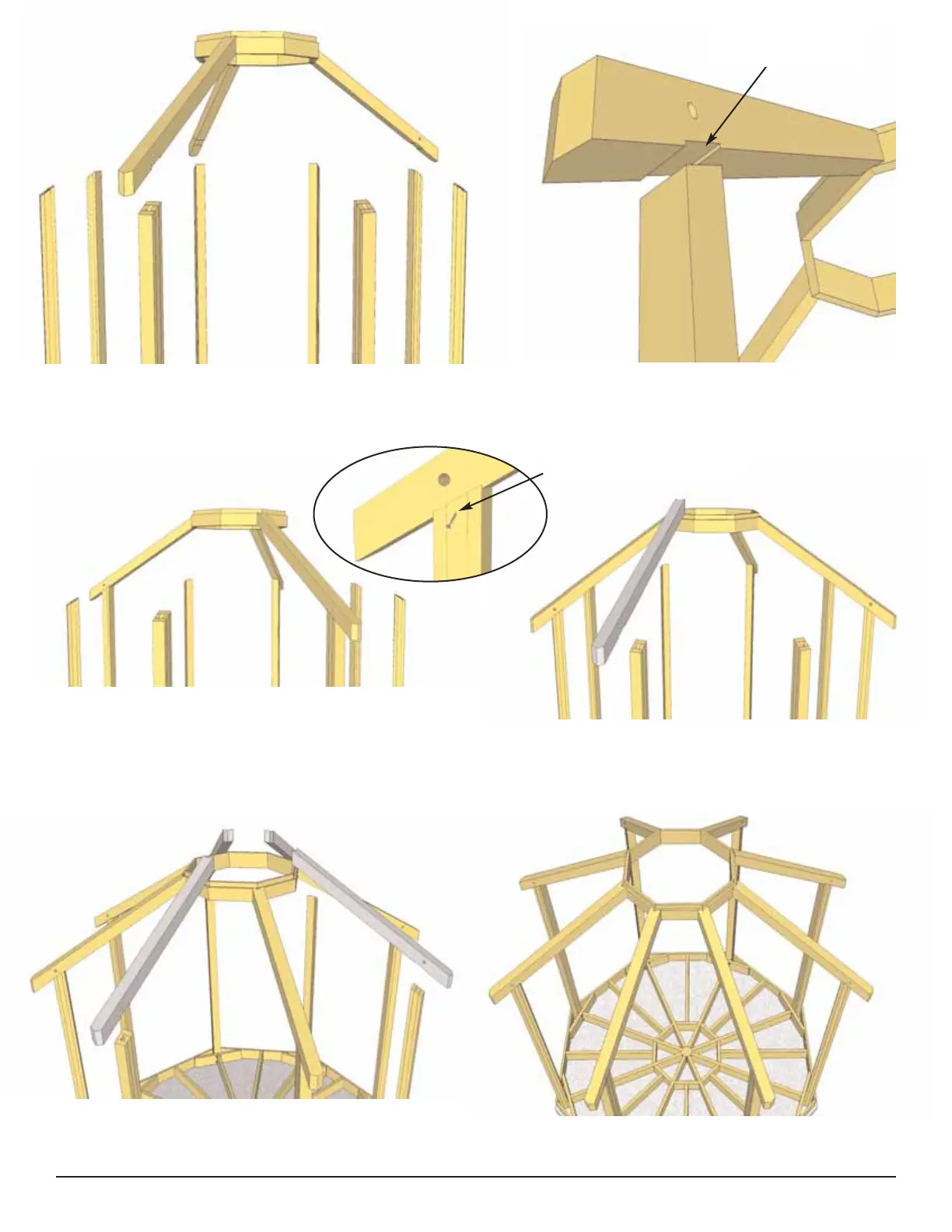

30. With the help of at least 2 assistants and Step Ladders, lift up your partially completed Skybox/
Rafter Assembly and place Rafters on top of Posts. The Post will sit in the notch of the Rafter.
31. Angle screw each Rafter/Post
connection together with 1 - 3” screw from
Post into Rafter. Slightly countersink
screwhead.
33. Complete remaining Rafter attachments and secure as per Step 27 and Step 31.
Post will sit in
notch of rafter.
32. Standing on ladders, position and attach a 4th Rafter
to the Skybox and Post as per Step 27 and Step 31.
Remember to align the Rafter correctly with Skybox ledge.
angle screw from side
