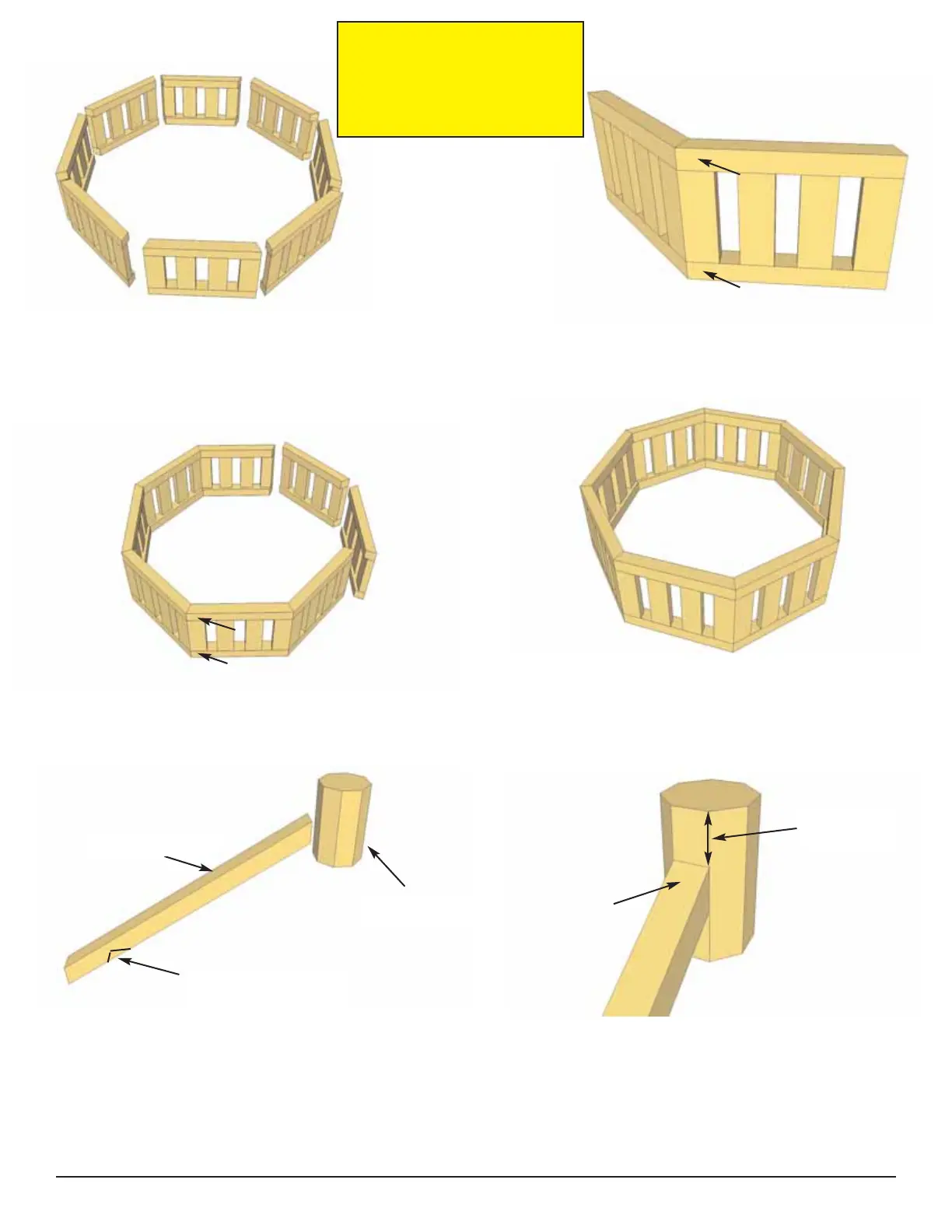

79. Locate 8 Side Rail Cupola Sections and
place in octagon shape as shown above.
80. Screw each section together with 2 - 2”
screws.
81. Continue attaching sections together.
82. Complete Side Rail Section and move to
the side
83. Locate Cupola Rafters and Core Block.
Place one Rafter against Core Block as shown
above.
84. Angle screw Rafter into Core Block
2” from top with 3” screw.
Important - Drill 1/8” Pilot Hole in Rafter
end to prevent splitting.
Core Block
Cupola Rafter
2” from top
Seat Cut in Rafter
facing down
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 29
F. Cupola Section
Important- Pre-drilling 1/8”
pilot holes in Cupola
components will help
prevent wood from splitting.
We highly recommend this.
