Side Bottom Skirting

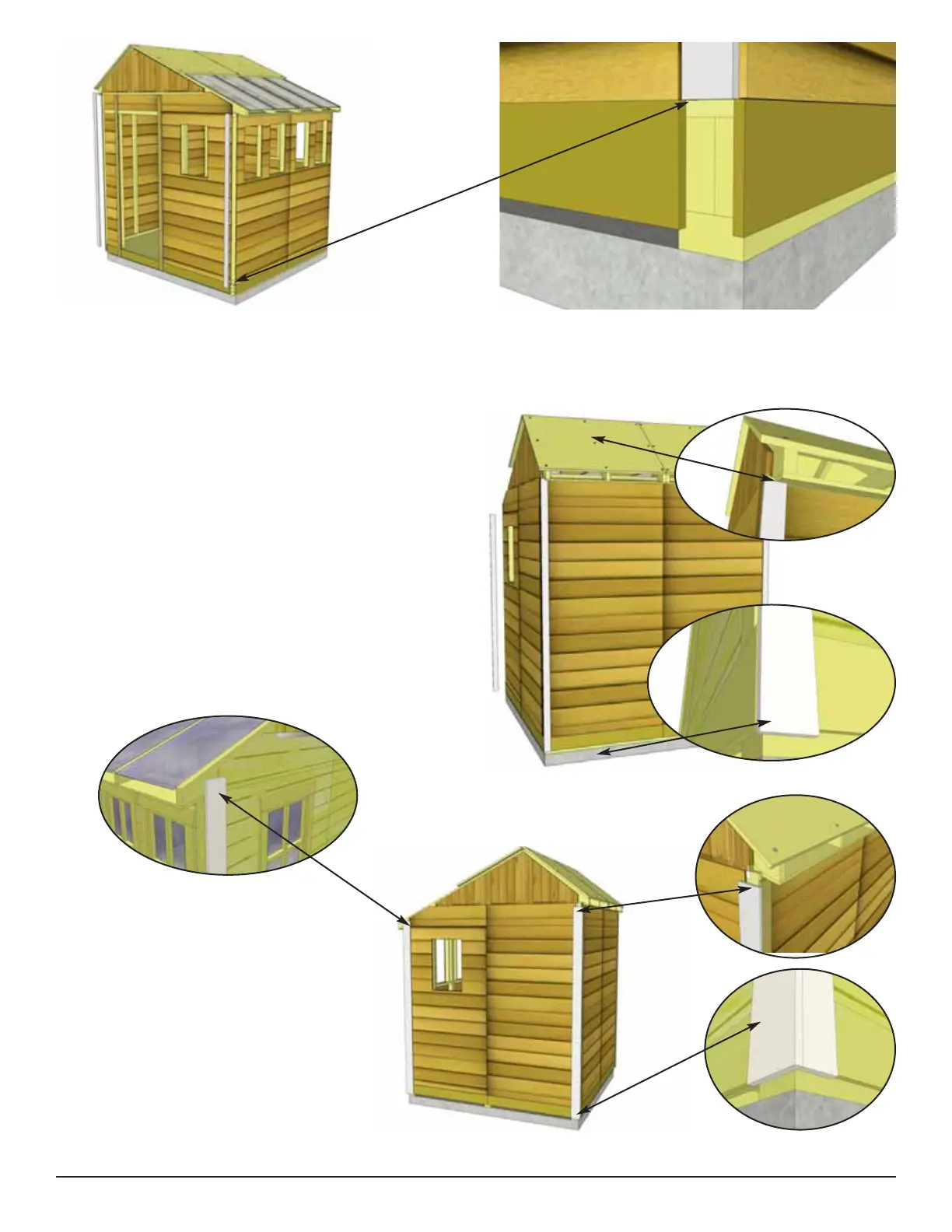

68. Attach Filler Trim - Tall and Short (2 - 5/8” x 2 1/2” x 75” & 2 - 84”) to front and rear walls in
each corner with 6 - 1 1/2” finishing nails. Strips are positioned flush with siding and bottom skirting.
69. Align and attach Narrow Trims in each
corner. There are 2 Short Wall Trims
(1/2” x 2 1/2” x 79”), and 2 Tall Wall Trims
(1/2” x 2 1/2” x 88”). Align Trim tight underneath
Soffit. Position flush with Filler Trim so Wide
Trim will cap it when attached in Step 70. Use
8 - 1 1/2” finishing nails to secure each piece.
Note that Narrow Trim will sit slightly below
Bottom Skirting when correctly attached.
4 1/2”
70. Position Wide Trims in each
corner. There are 2 Short Wall Trims
(1/2” x 4 1/2” x 82”), and 2 Tall Wall
Trims (1/2” x 4 1/2” x 87”). Align to
cover Filler Trim and cap Narrow
Trim. Wide Trim will be flush with
Narrow Trim at bottom. Secure trim
with 8 - 1 1/2” finishing nails.
Complete remaining corner trims.
2 1/2”
rear of shed
