73. Position Mid Ridge Caps evenly spaced
on mid rafters. Attach as per Step 72.
71. Attach remaining Narrow Wall Trims around the Sunshed. Narrow trims are used where wall
panels come together and leave a seam. Note: the Narrow Trim on the Short Wall side is only 79”
long. Attach with 8 - 1 1/2” finishing nails per piece. Align Trim flush at bottom with corner trim.

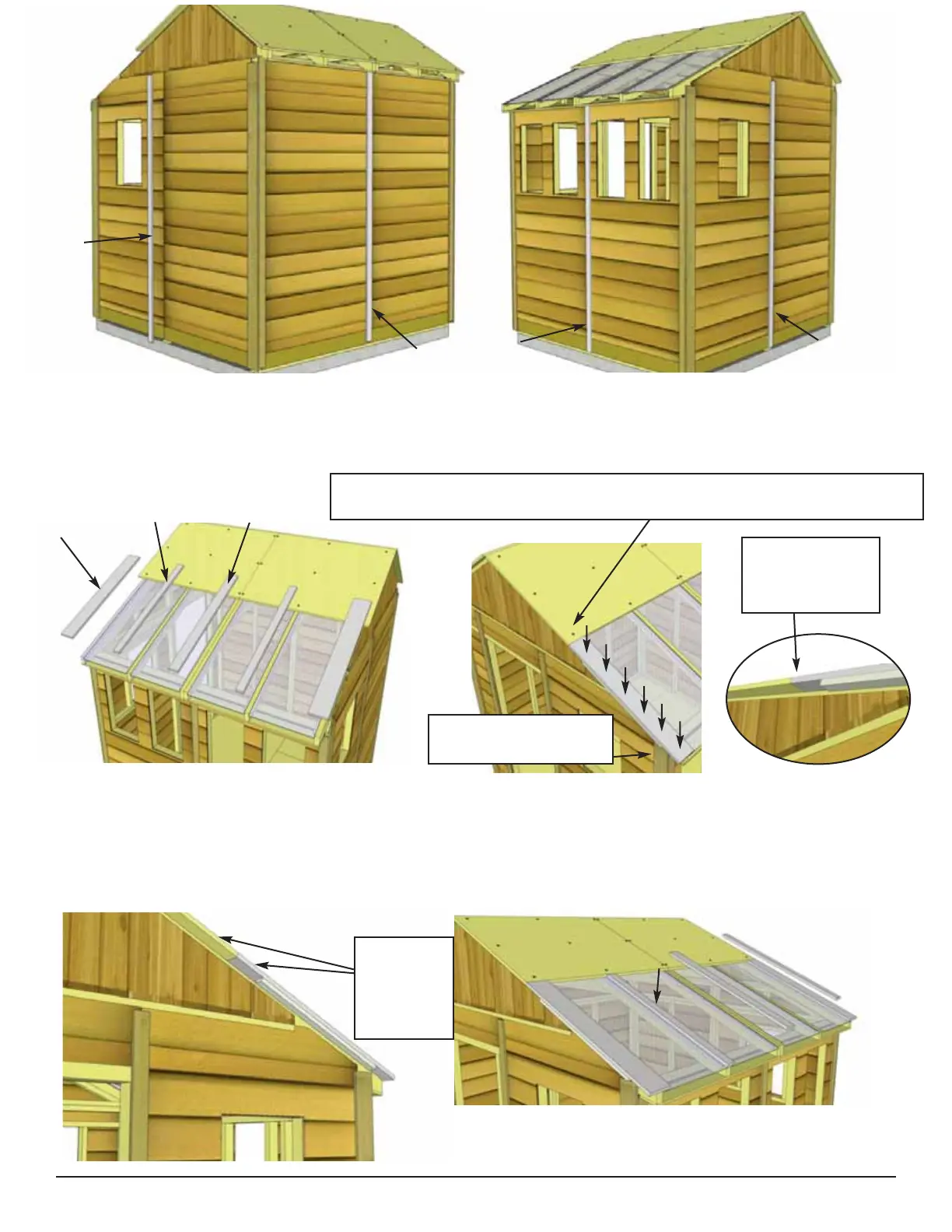

72. Locate all Ridge Caps for Polygal Panels (41 1/2” long - 2 Outside / 2 Mid / 1 Center). Starting from
the outside, position a 5 1/2” wide cap so outside edge is aligned with plywood of roof and Cap end makes
contact with plywood. When correctly aligned, attach Cap to center of outside rafter with 6 - finishing nails.
See below for diagram of allignment. Outside Ridge Cap has nailing strip attached.
5 1/2” wide
3 1/2” wide
2 1/2” wide
79”
88”
87”
Ridge Cap slides up to Roof Panel and has nailing strip attached to
outside underside of it. Strips allows facia to attach easier in Step 75.
Cap overhangs rafter
end by approx 1/2”
Align outside cap
so it is even with
outside of plywood
on roof.
Plywood
and cap
evenly
aligned.
87”
