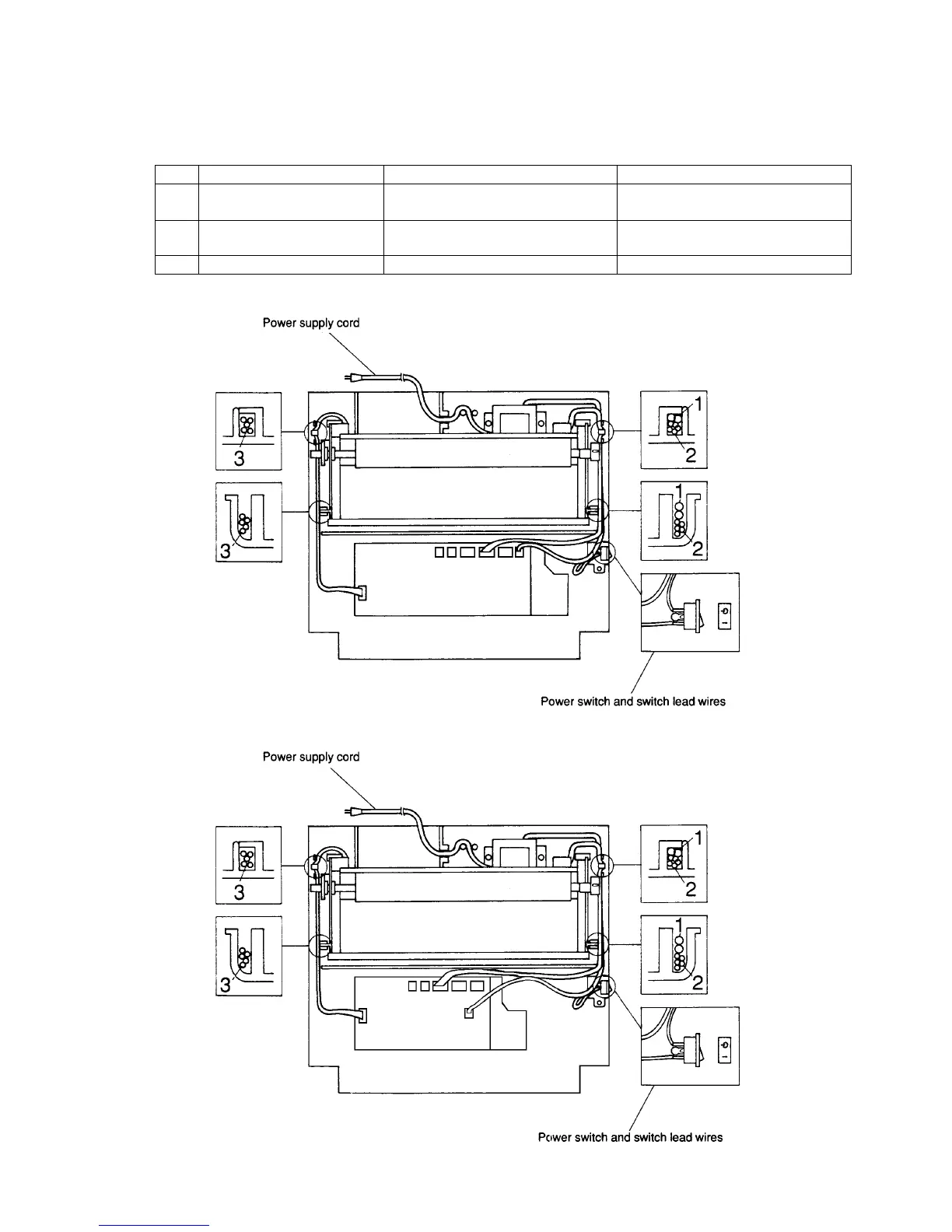

5.8 Wire Routing

Bottom cabinet

No. Lead wires Connector for lead wires side Connector for control PCB side

Power supply cord and

power switch

White (2 pins) White (CN201)

2 Carrier motor

Yellow/Matsushita motor (6 pins)

White/NMB-MAT motor (6 pins)

Yellow (CN204)

3 LF motor White (6 pins) White (CN205)

Original version (Control PCB:Artwork No. 999-32300)

2nd version (Control PCB:Artwork No. 999-35810)

5-25
