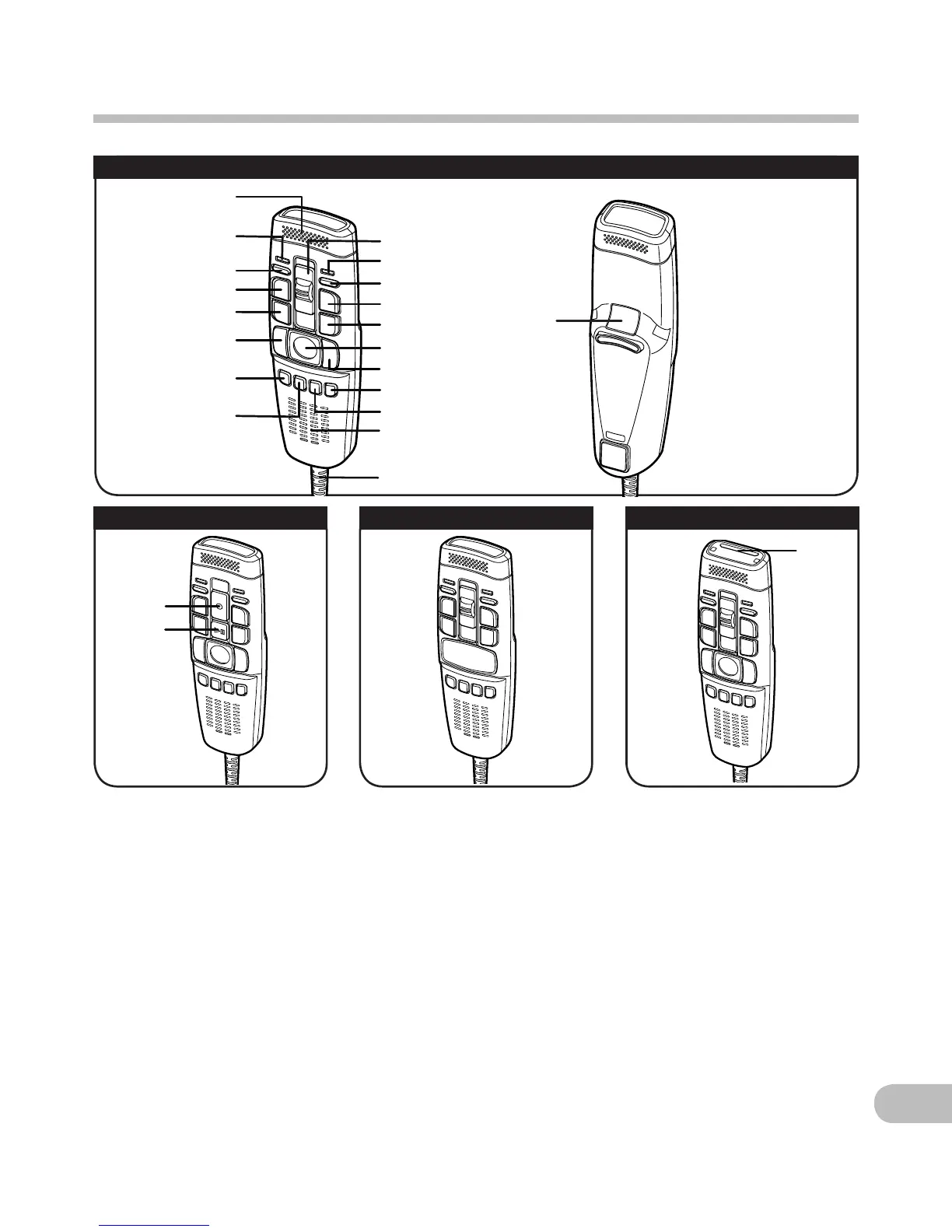

Identification of parts
1 Built-in microphone
2 Recording three color LED (red,
green and blue)
3 Volume down button
4 NEW button
5 REW (Rewind) button
6 LEFT button
7 F1 (Function 1) button
8 F2 (Function 2) button
9 Slide REC (Record)/STOP/PLAY/
REV (Review) switch
0 Insert Recording LED (green)
! Volume up button
DR-1200 DR-2100
DR-2200
DR-2300
-
=
1
2
3
4
5
6
7
8
9
0
!
@
#
$
^
&
*
(
%
q
@ Insert / Overwrite button
#FF (Fast Forward) button
$ Trackball
%
RIGHT button
^ F4 (Function 4) button
& F3 (Function 3) button
* Built-in speaker
( USB cable
) BACK button
- REC button
= PLAY/PAUSE button
q Barcode slot
)
