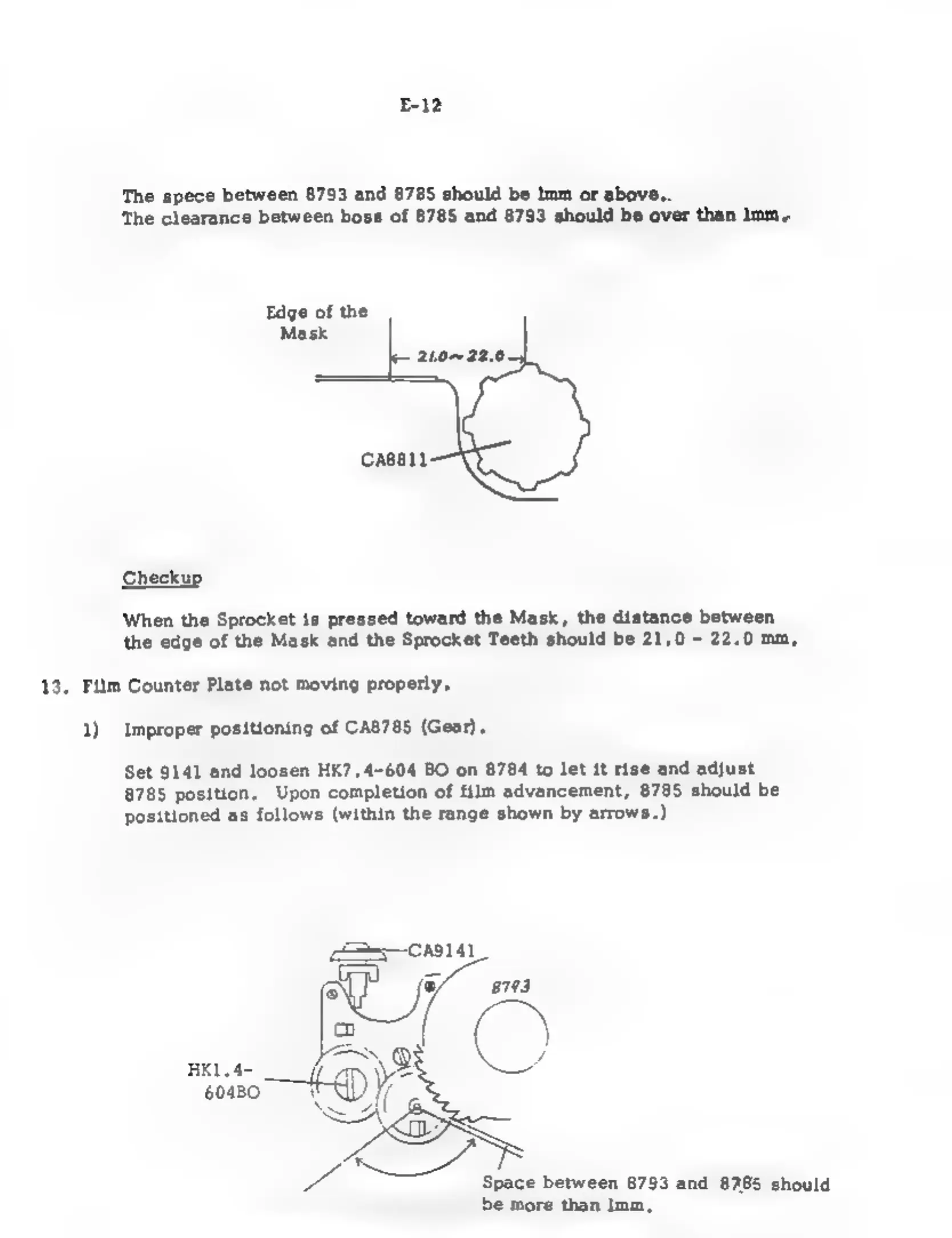

The spece between 8793 and 8785 should be Imm or above..
The
clearance
between
boss
of
8785
and
8793
should
be
over
than
1mm,
Checkup
When
the
Sprocket
is
pressed
toward
the
Mask,
the
distance
between
the edge
of the Mask
and the Sprocket
Teeth
should
be 21,0
- 22.0
mm,
13.
Film
Counter
Plate
not
moving
properly.
1)
Improper
positioning
of
CA8785
(Gear).
Set
9141
and
loosen
HK7,4-604
BO
on
8784
to
let
it
rise
and
adjust
8785
position.
Upon
completion
of
film
advancement,
8785
should
be
positioned
as
follows
(within
the
range
shown
by
arrows.)
HKl.4-
604BO
A
Space
between
8793
and
8285
should
be
more
than
Imm,
