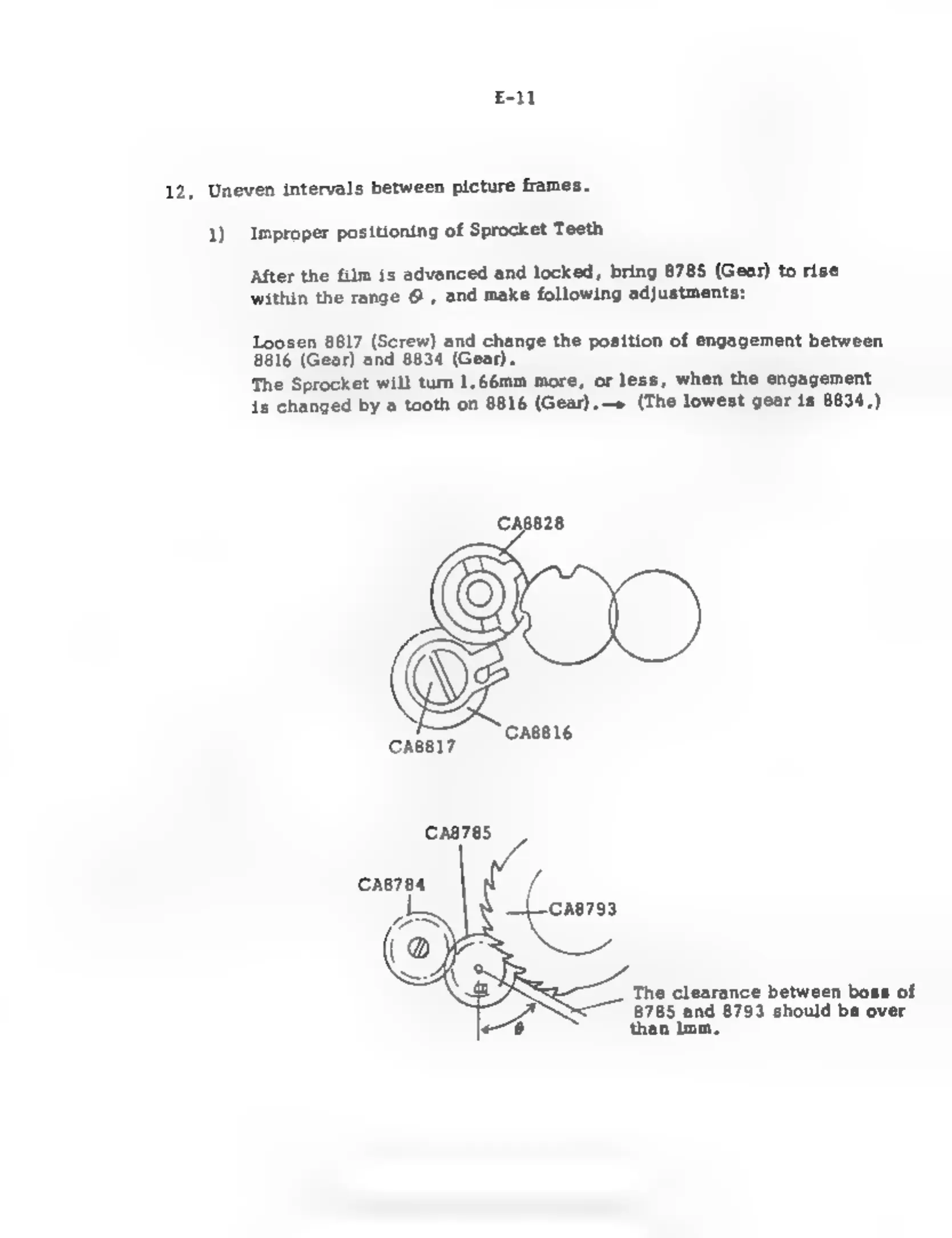

£-11
12,
Uneven
intervals
between
frames.
1)
Improper
positioning
of
Sprocket
Teeth
After
the
film
is
advanced
and
locked,
bring
8785
(Gear)
to
rise
within
the
range
@
,
and
make
following
adjustments:
Loosen
8817
(Screw)
and
change
the
position
of
engagement
betw:
8816
(Gear)
and
8834
(Gear).
үе
а
Уа
аш
The
Sprocket
will
turn
1.66mm
more,
or
less,
when
the
engagement
is
changed
by
a
tooth
on
8816
(Gear).—»
(The
lowest
gear
is
8834,)
CA8785
CA8784
-CA8793
The clearance between boss of
8785 and 8793 should be over
than Imm.
