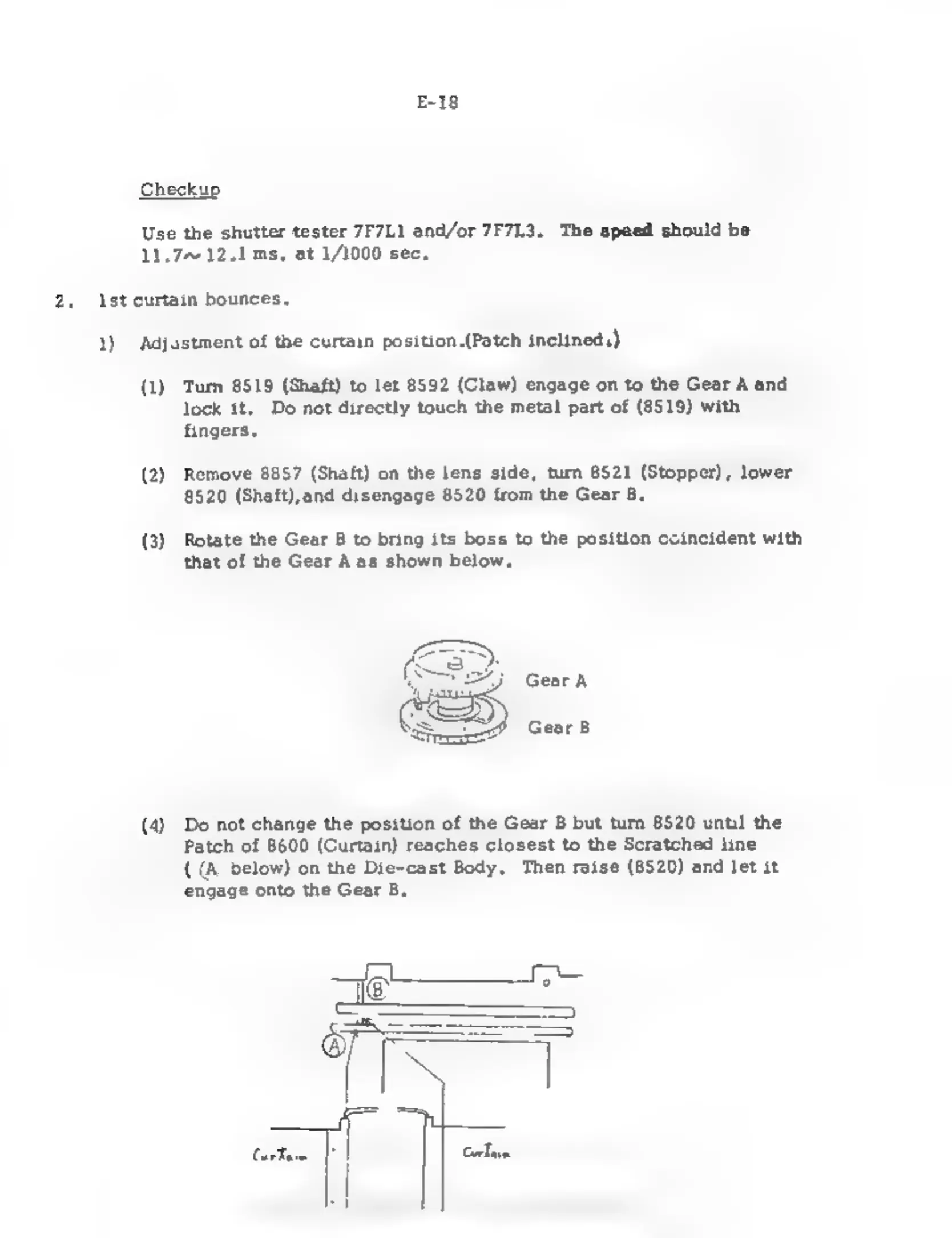

E-18.
Checkup
Use
the
shutter
tester
7F7L1
and/or
7F7L3.
The
speed
should
be
11.727
12.1
тз.
at
1/1000
sec.
2,
181
curtain
bounces.
1)
Adjustment
of
the
curtain
position.(Patch
inclined)
(1)
Tum
8519
(Shaft)
to
let
8592
(Claw)
engage
on
to
the
Gear
A
and
lock
it.
Do
not
directly
touch
the
metal
part
of
(8519)
with
fingers.
(2)
Remove
8857
(Shaft)
on
the
lens
side,
turn
8521
(Stopper),
lower
8520
(Shaft),
and
disengage
8520
from
the
Gear
В.
(3) Rotate the Gear B to bring its boss to the position coincident with
that of the Gear A as shown below,
(4)
Do
not
change
the
position
of
the
Gear
B
but
tum
8520
until
the
Patch
of
8600
(Curtain)
reaches
closest
to
the
Scratched
line
(
(А
below)
on
the
Die-cast
Body.
Then
raise
(8520)
and
let
it
engage
onto
the Gear
B.
