E-43
Checkup
8957 should always be protrusive from the surface where 8879 1s
joined with 8702.
A little space may be permissible between 8957 and 8879. (If the
roller selection is made allowing no space between them, 1t
sometimes causes poor returns of 8879.)
5) Spring pressure of CA8951 (Holder) too strong.
8951 should be checked for filth or deformity. Make necessary
repairs or adjustments.
4. Improper Adjustment of the Cam gear positioning screw:
1) Adjustment of the Cam gear positíoning screw.

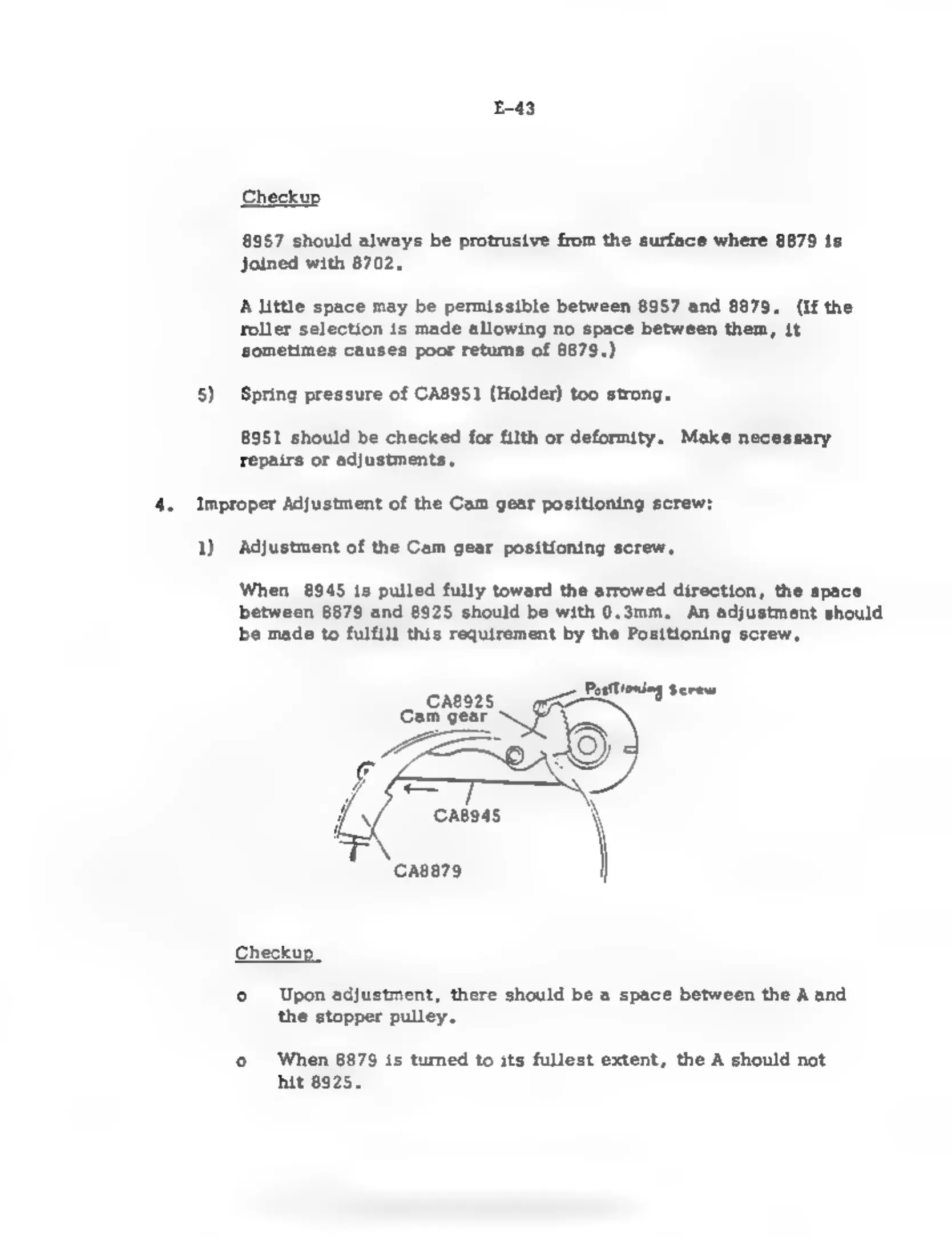

When 8945 is pulled fully toward the arrowed direction, the space
between 8879 and 8925 should be with 0.3mm, An adjustment should
be made to fulfill this requirement by the Positioning screw,
Pos tioniag Screw
CA8925
Cam gear
28
САВ945
Checkup
о Upon adjustment, there should be a space between the A and
the stopper pulley.
o When 8879 is turned to its fullest extent, the A should not
hit 8925.
