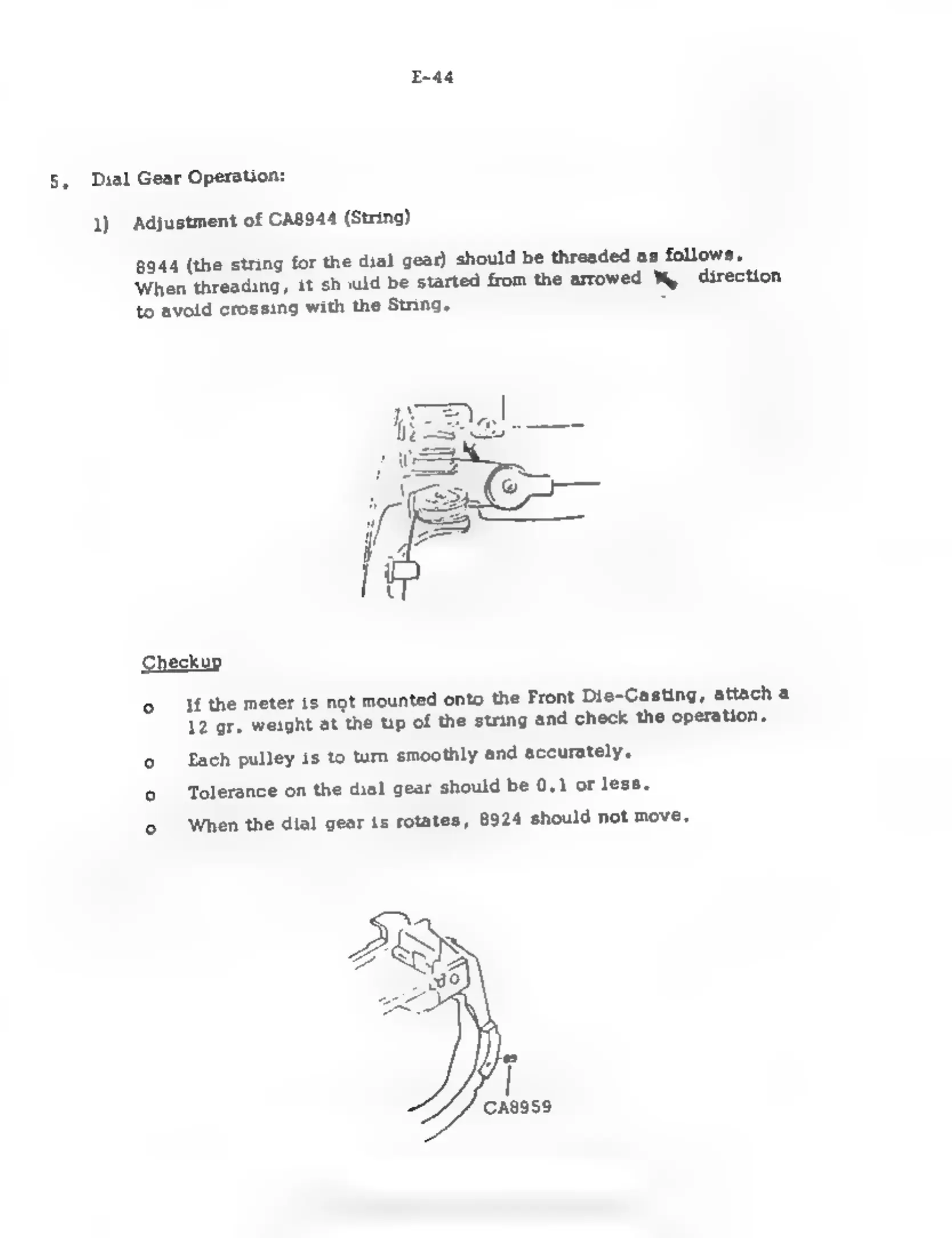

Operation:
1)
Adjustment
of
CA8944
(String)
8944
(the
string
for
the
dial
gear)
should
be
threaded
as
follows.
When
threading,
it
should
be
started
from
the
arrowed
W,
direction
to
avoid
crossing
with
the
String.
г
Checkup
o
И
the
meter
is
not
mounted
onto
the
Front
Die-Casting,
attach
а
12
gr.
weight
at
the
tip
of
the
string
and
check
the
operation.
o
Each
pulley
is
to
turn
smoothly
and
accurately.
o
Tolerance
on the
dial
gear
should
be
0.1
or
less.
o
When
the
dial
gear
is
rotates,
8924
should
not
move.
СА8959
