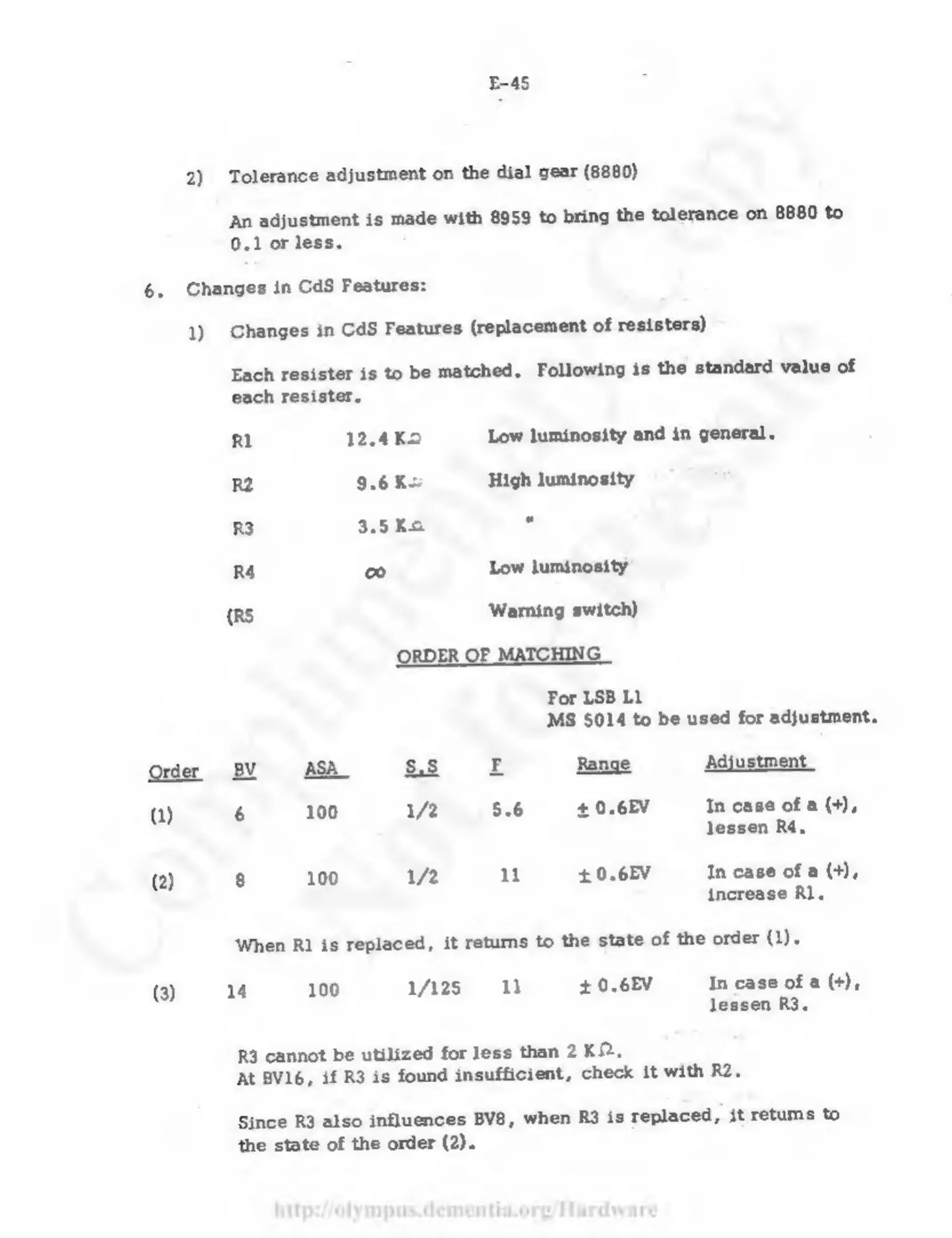

2)
Tolerance
adjustment
on
the
dial
gear
(8880)
An
adjustment
is
made
with
8959
to
bring
the
tolerance
on
8880
to
0.1
or
less.
6.
Changes
in
CdS
Features:
1)
Changes
in
CdS
Features
(replacement
of
resisters)
Each
resister
is
to
be
matched.
Following
is
the
standard
value
of
each
resister.
R1
12.4
K2
Low
luminosity
and
in
general,
R2
9.6
Ks
High
luminosity
R3
3.5
Ка
*
R4
о
Low
luminosity
(А5
Warning
switch)
ORDER
OF
MATCHING
For
LSB
L1
MS
5014
to
be
used
for
adjustment.
Order
ВУ
АЗА
SS
Е
Range
Adjustment.
Q)
6
100
12
5.6
+
0.6EV
In
case
of
a
(4),
lessen
R4.
(2)
8
100
1/2
11
+0.6EV
In
case
of
a
(+),
increase Rl.
When
RI
is
replaced,
it
returns
to
the
state
of
the
order
(1).
(3)
14
100
1/125
11
+
0.6EV
їп
case
of
a
(+),
lessen
R3.
ЕЗ
cannot
be
utilized
for
less than
2
КО.
At
BV16,
if
R3
is
found
insufficient,
check
it
with
R2.
Since
R3
also
influences
BV8,
when
R3
is
replaced,
it
retums
to
the
state
of
the
order
(2).
