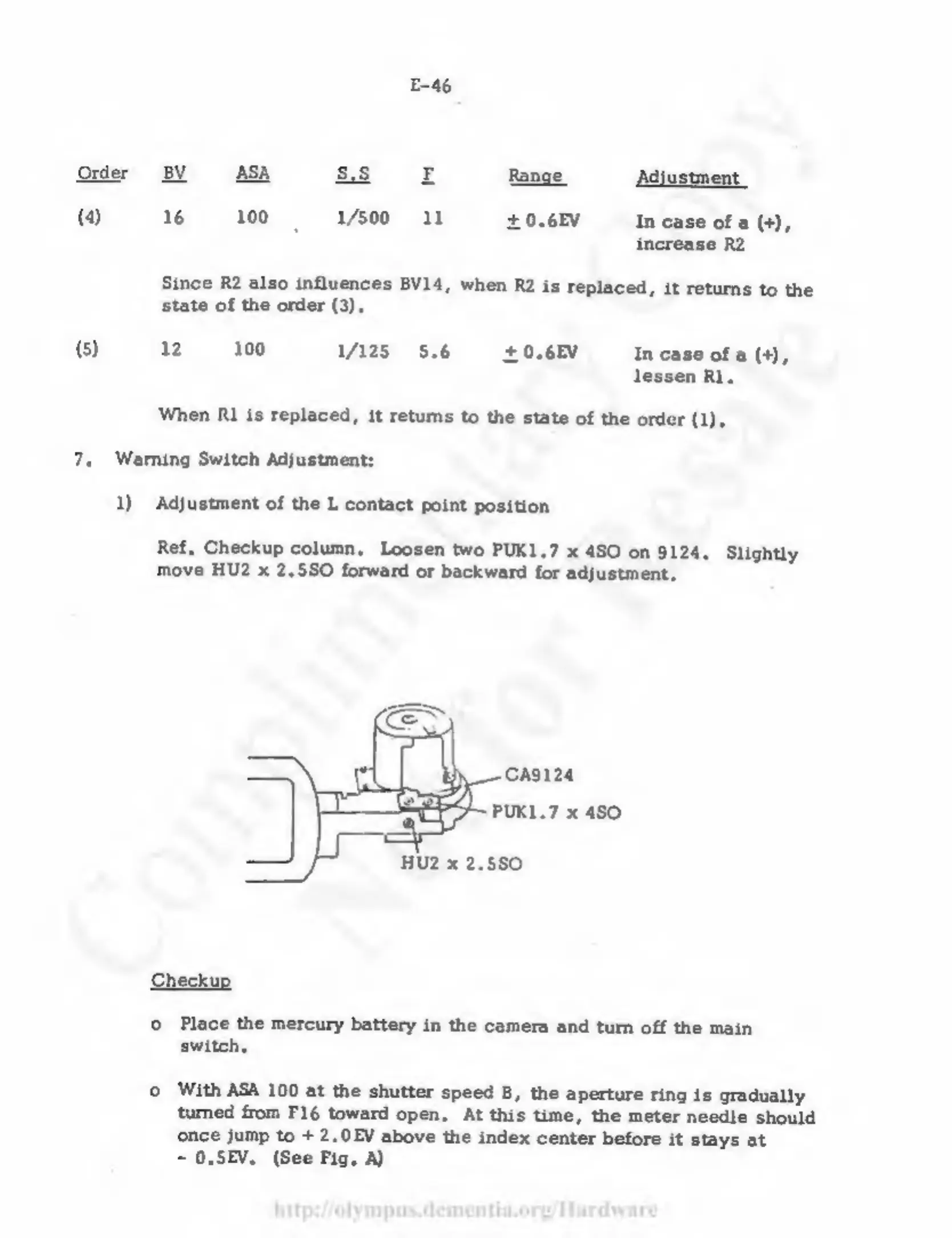

Olympus OM-1 - Page 47

E-46
Order
ВУ
АА
8.8
E
Range.
Adjustment
(4)
16
100
1/500
11
+0.6EV
In
case
of
a
(+),
increase
R2
Since
R2
also
influences
BV14,
when
R2
is
replaced,
it
returns
to
the
state
of
the
order
(3).
(5) 12 100 1/25 5.6 + 0.6EV In case of a (+),
lessen Rl.
When
КІ
is
replaced,
it
retums
to
the
state
of
the
order
(1).
7.
Warning
Switch
Adjustment:
1)
Adjustment
of
the
L
contact
point
position
Ref,
Checkup
column.
Loosen
two
PUK1.7
x
4SO
on
9124.
Slightly
move
HU2
х
2.550
forward
or
backward
for
adjustment.
CA9124
PUK1.7
x
4SO
HU2 x 2.580
Checkup
©
Place
the
mercury
battery
in
the
camera
and
turn
off
the
main
switch,
o
With
ASA
100
at
the
shutter
speed
B,
the
aperture
ring
is
gradually
turned
from
F16
toward
open.
At
this
time,
the
meter
needle
should
once
jump
to
+
2.0EV
above
the
index
center
before
it
stays
at
-
0.SEV.
(See
Fig.
А)
