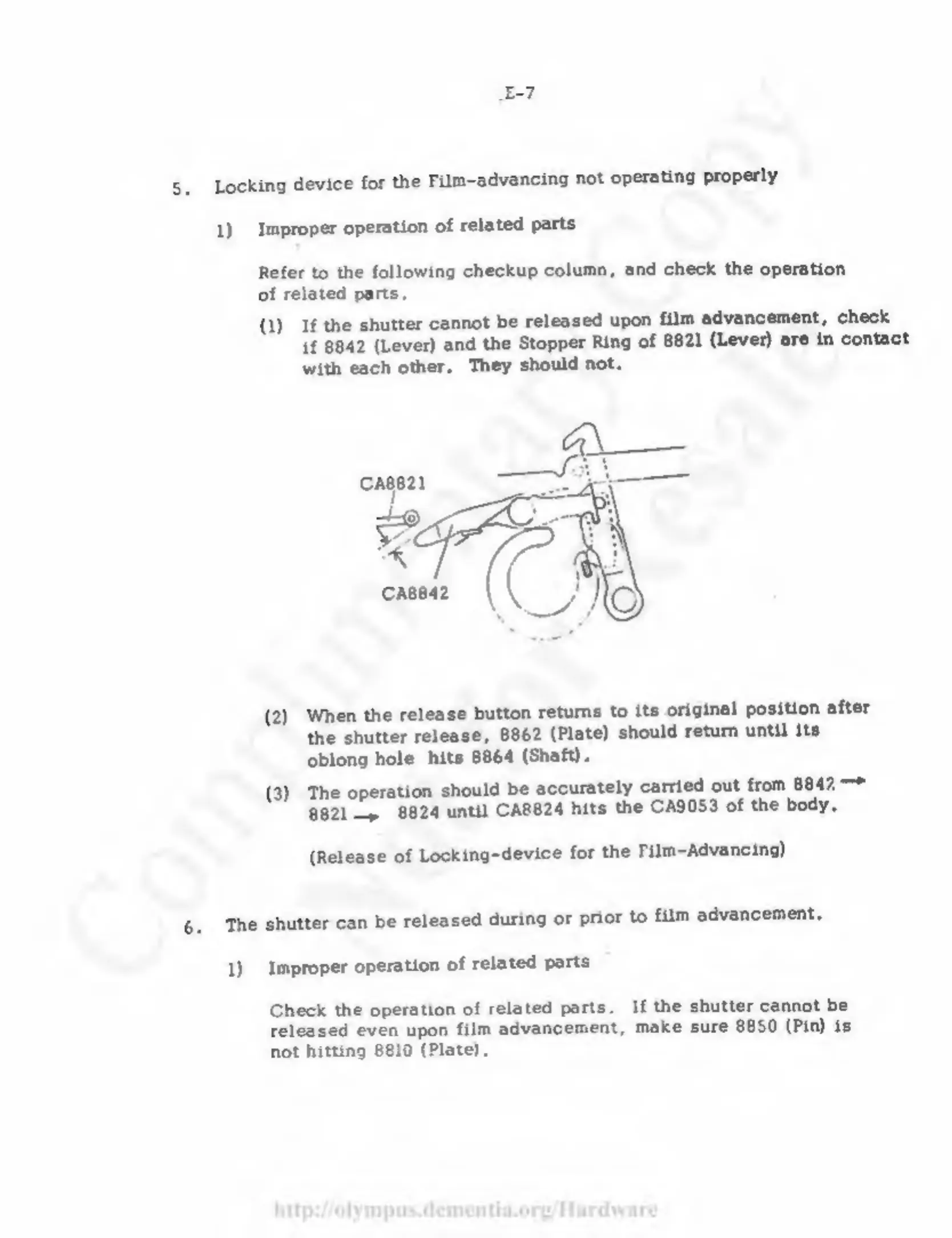

5.
Locking
device
for
the
Film-advencing
not
operating
properly
1)
Improper
operation
of
related
parts
Refer
to
the
following
checkup
column,
and
check
the
operation
of
related
parts.
(1)
If
the
shutter
cannot
be
released
upon
film
advancement,
check
if
8842
(Lever)
and
the
Stopper
Ring
of
8821
(Lever)
are
in
contact
with
each
other,
They
should
not.
Gage21
ҮР
(
CA8842
(4
Е;
(2)
When
the
release
button
returns
to
its
original
position
after
the
shutter
release,
8862
(Plate)
should
return
until
its
oblong
hole
hits
8864
(Shaft).
(3)
The
operation
should
be
accurately
carried
out
from
8842
—*
8821.
8824
until
CA8824
hits
the
СА9053
of
the
body.
(Release
of
Locking-device
for
the
Tilm-Advancing)
6.
The
shutter
сап
be
released
during
or
prior
to
film
advancement,
1)
Improper
operation
of
related
parts
Check
the
operation
of
related
parts.
If
the
shutter
cannot
be
released
even
upon
film
advancement,
make
sure
8850
(Pin)
is
not
hitting
8810
(Plate).
