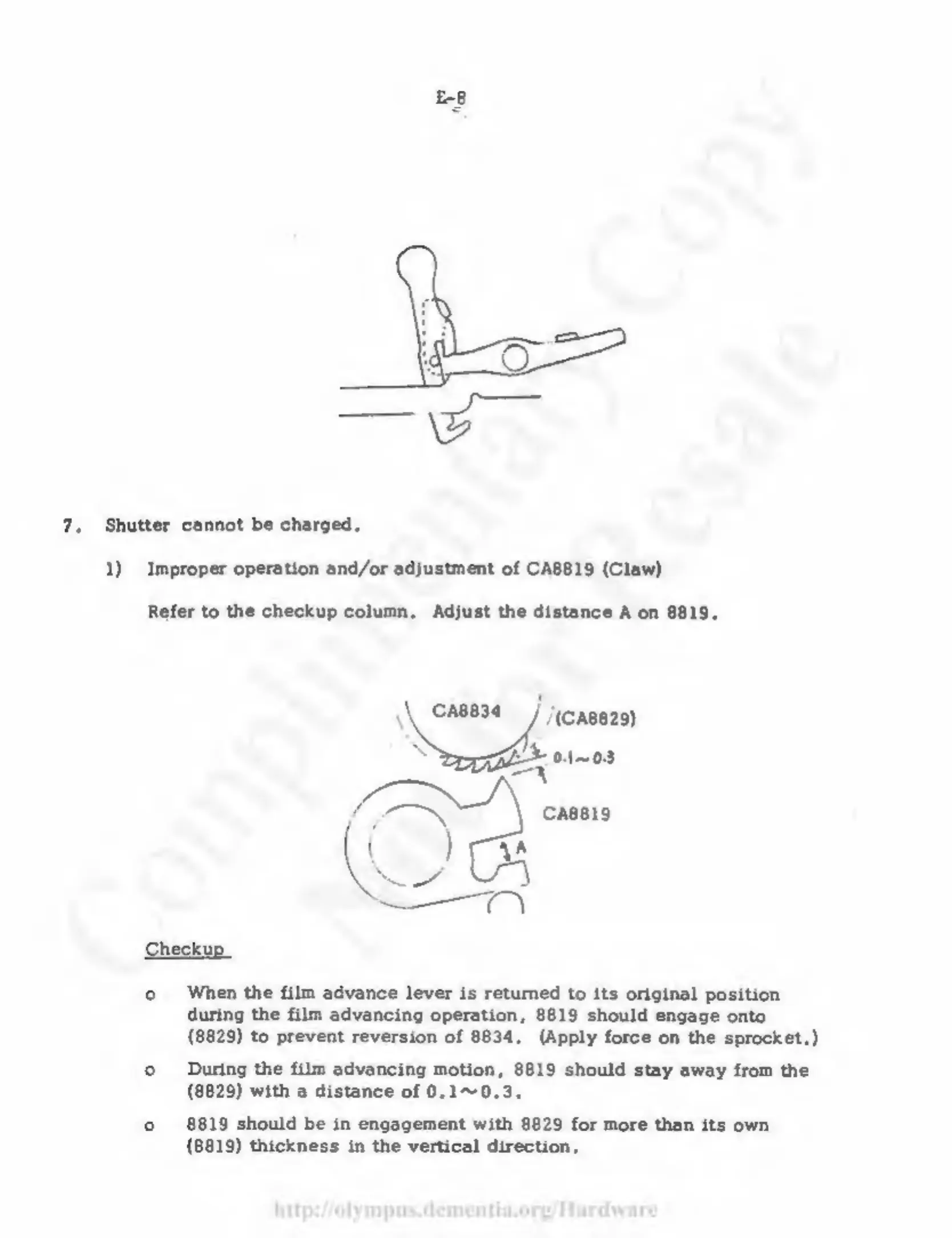

7. Shutter cannot be charged.
1) Improper operation and/or adjustment of CA8819 (Claw)
Refer to the checkup column, Adjust the distance A on 8819.
CA8834 / /(сдвв29)
N А. 0.1.03
ро Е
aN СА8819
) [73^
ur d A
ncc d
Checkup
o
When
the
film
advance
lever
is
returned
to
its
original
position
during
the
film
advancing
operation,
8819
should
engage
onto
(8829)
to
prevent
reversion
of
8834.
(Apply
force
on
the
sprocket.)
о During the film advancing motion, 8819 should stay away from the
(8829) with a distance of 0.1~0.3.
o 8819 should be in engagement with 8829 for more than its own
(8819) thickness in the vertical direction,
