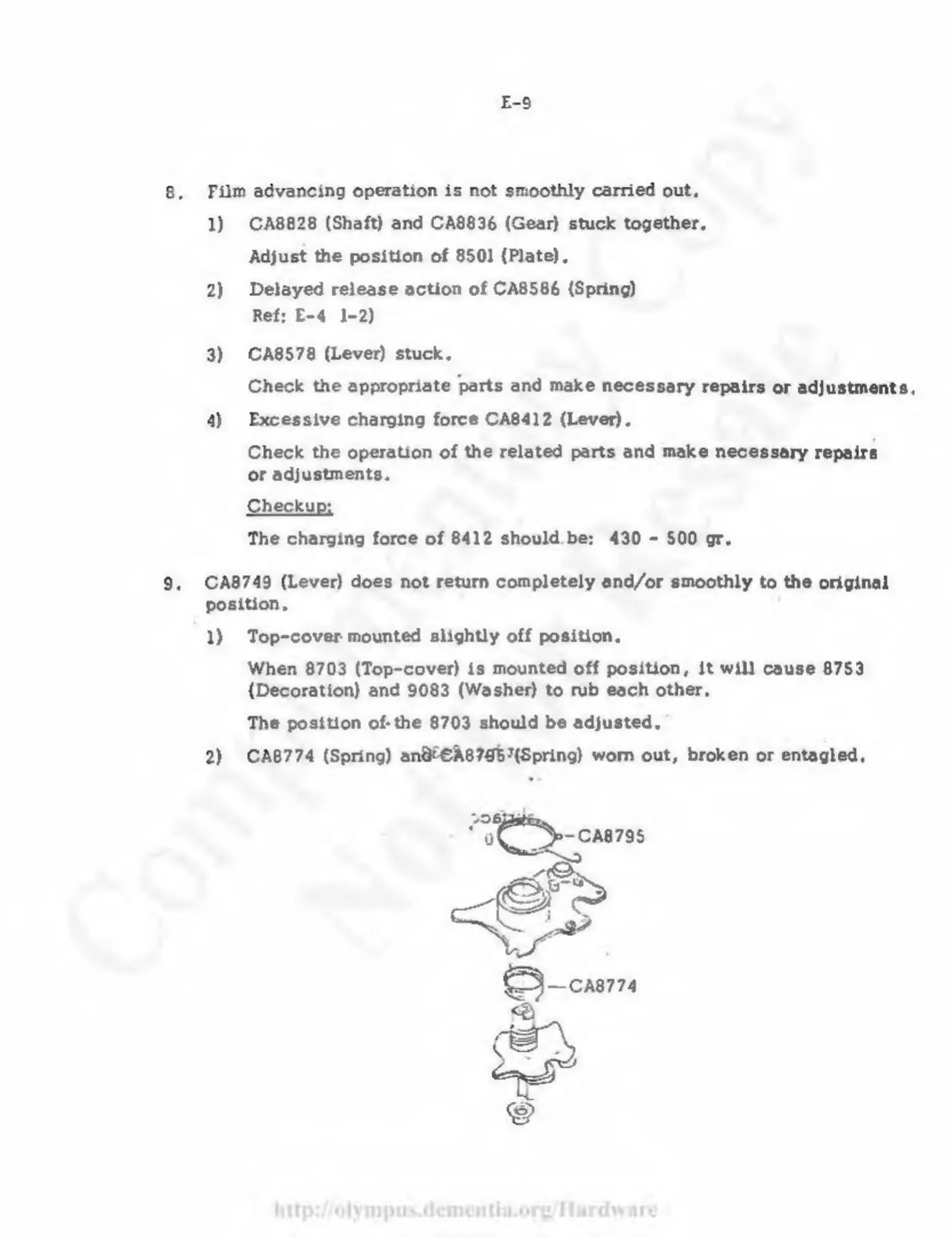

E-9
Film advancing operation is not smoothly carried out,
1) СА8828 (Shaft) and CA8836 (Gear) stuck together.
Adjust the position of 8501 (Plate).
2) Delayed release action of CA8586 (Spring)
Ref: E-4 1-2)
3) CAB8578 (Lever) stuck.
Check the appropriate parts and make necessary repairs or adjustments.
4) Excessive charging force CA8412 (Lever).
Check the operation of the related parts and make necessary repairs
or adjustments.
Checkup:
The charging force of 8412 should.be: 430 - 500 gr.
CA8749 (Lever) does not return completely and/or smoothly to the original
position.
1) Top-cover mounted slightly off position.
When 8703 (Top-cover) is mounted off position, it will cause 8753
(Decoration) and 9083 (Washer) to rub each other.
The position of-the 8703 should be adjusted.
2) СА8774 (Spring) апаёЄА89%:(5ргіпо) worn out, broken or entagled.
