Olympus SZ-10 - Names of Parts; Camera unit

9
EN
Names of Parts
Names of Parts

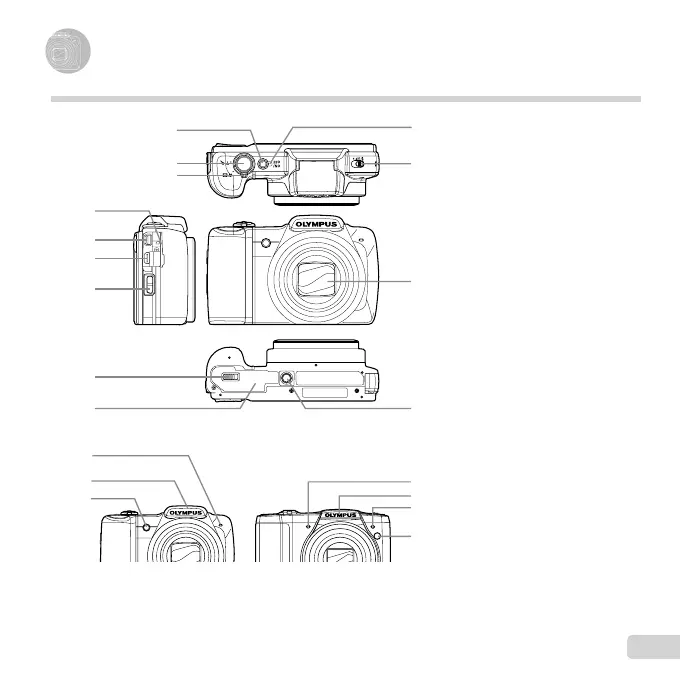

Camera unit
1
5
6
7
8
9
3
2
4
12
13
11
10
1
5
1
5
14
16
15
16
14
SZ-10 SZ-20
1 n button .......p. 17, 19
2 Shutter button ........p. 20, 60
3 Zoom lever .............p. 21, 24
4 Connector cover ....p. 14, 16
5 Multi-connector
..................p. 14, 16, 52, 55
6 HDMI micro connector
....................................p. 52
7 Strap eyelet .................p. 10
8 Battery/card compartment
lock .............................p. 13
9 Battery/card compartment
cover ...........................p. 13
10 Indicator lamp ........p. 14, 16
11 Flash switch .................p. 34
12 Lens .............................p. 65
13 Tripod socket
14 Flash ............................p. 34
15 Microphone ............p. 43, 45
16 AF illuminator ...............p. 41
Self-timer lamp ............p. 35
