Olympus X - Eyepieces; Objectives

- 7 - - 8-
i\lagnification
GIO x
G20
>..

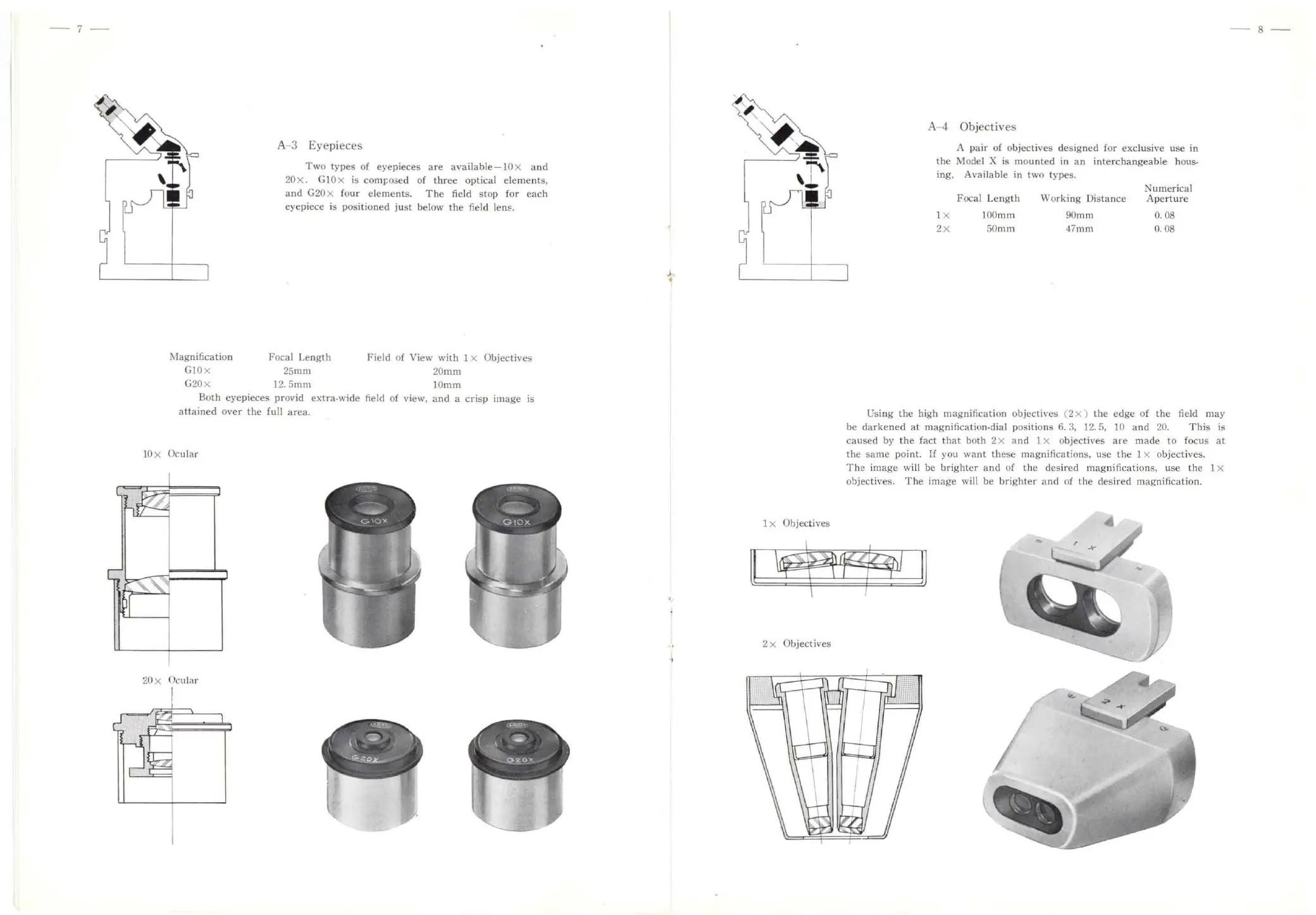

A 3 Eyepieces
Two types of eyepieces are available-lO X and
20x . GlO x is comJ:o.>ed of th ree optical elements,
and G20 x four elements. The field stop for each
eyepiece is positioned jus t below the field lens .
Focal Length
25mm
12.
5mm
Field of View with 1 X Objectives
20mm
10mm
Both eyepieces provid extra-wide field of view, and a cr i sp image is
attained over the full area.
lO x Ocular
20x Ocul
ar
)
.
1 x Objectives
2 x Objectives
A-4 Objectives
A pair of objectives designed for exclusive use in
the Model X is mounted in an in terch angeab le hous·
ing. Available in two types.
1x
2X
Focal L ength
100 mm
50 mm
Working Distance
90mm
47mm
Numerica l
Aperture
0. 08
0.08
Using the high magnification objectives ( 2 X) the edge of the field may
be darkened at magnification·dial positions 6. 3, 12. 5, 10 and 20. This is
caused by the fact that both 2 X and l x objectives are made to focus at
the same point. lf you want these magnifications. u se th e 1 X objectives.
The image wi ll be br i ghter an d of the desired magnifications, u se the 1 X
objectives.
The image will be brighter and of the desired magnification.
