Olympus X - Stand; Stage; Pillar

-1 3-
C 1 Stage

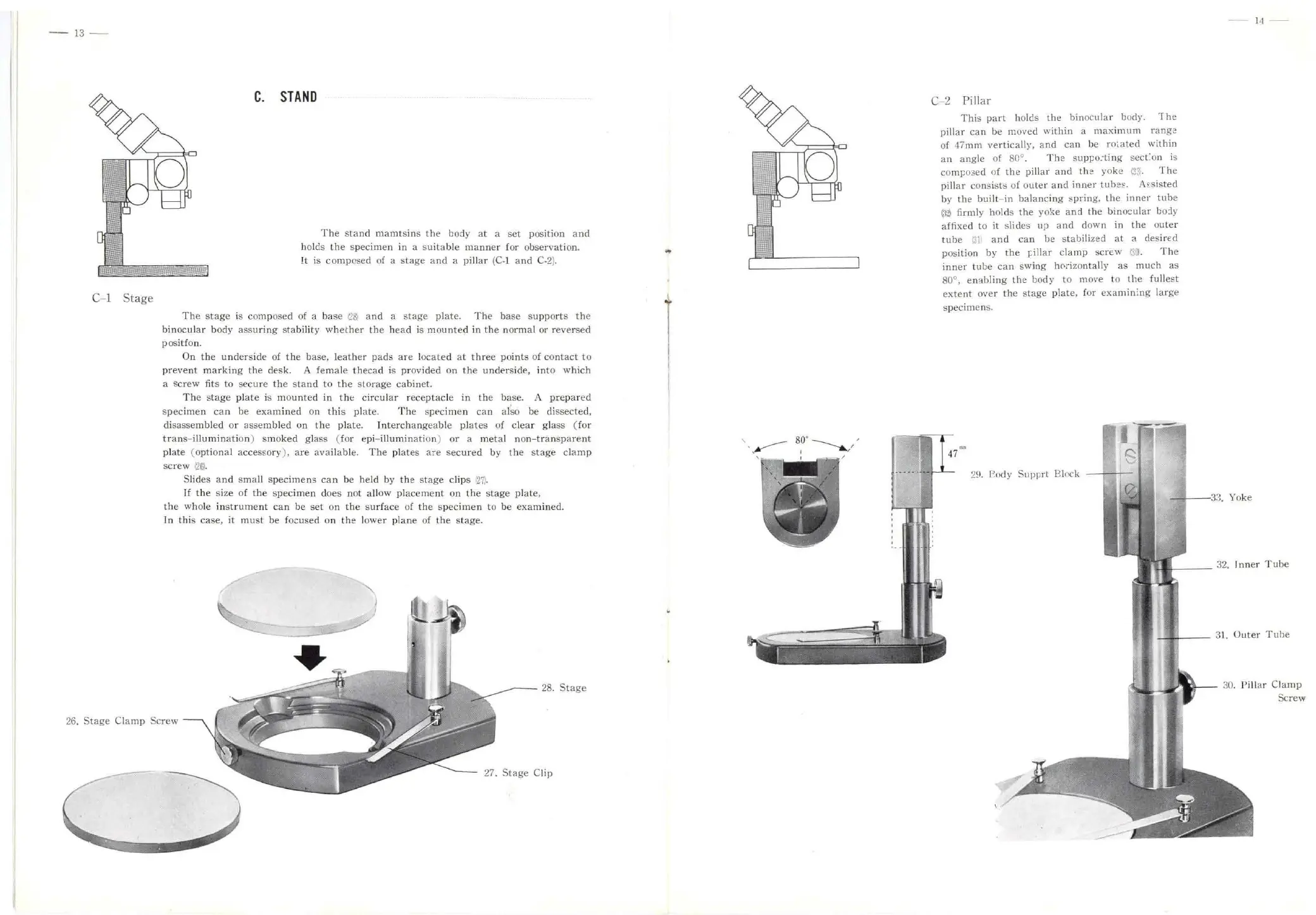

C. STAND
The s tand mamtsins the body at a set position and
holds the s pecimen in a s uitable ma nner for o bs e rv ation.
It is co mp os ed of a s tage a nd a pillar ( C-1 and C·2).
The st age is co mp osed of a ba se ·2Si and a s ta ge plate. The ba se s upp o rt s th e
binocular body a ss uring s tability whether th e head is mo unted in t he no rmal or re vers ed
positfon.
On the under side of the base , l eather pad s ar e located at three po int s of co ntac t to
prevent marking the desk. A female thecad is provided on the und erside, in to which
a s crew fits lo secure the stand to the storage cabinet.
The stage pl ate is mounted in the:: circular receptac le in th e base. A prepar ed
specimen can be examined on th is plate. The specimen ca n al So be dissected,
disassembled or ass e mbled on the pl ate. Interchangeable plat es of cl ear gla ss (for
trans - illum i nation ) smoked glass (for epi- illumin a tion ) or a meta l non- transparent
pl ate ( opt i ona l access ory ) , are availab le. The plates are secured by t he stage cla mp
screw (261.
Slides and small specimens can be held by the stage clips 12'(1 .
If the size of the specimen does not allow placement on the stage plate ,
the whole in strument can be set on t he surface of the specimen to be examined.
In this case, it mu st be focused on the lower plane of the stage.
28. Stage
26. S ta ge Clamp Scr ew
27. Sta ge Clip
..
80
• '
' ' ' ----- ----- .
~ I ............ ... /
/
C - ~ Pillar
This part holds the binocular body. The
pillar can be moved within a max i mum range
of 47mm vertically, and can be ro iat ed within
an angle of 80°. The suppo:ting secfon is
compo3ed of the pillar and the yoke < !3 ·. The
pillar consists of oute r and inner tube~. A£si sted
by the bu ilt in ba l ancing sp r ing , the inner tube
''W firmly holds the yoke and the binocula r bo:ly
affixed
to it slides up and down in the oute r
tube 131 and can be stabilized at a desired
p osit ion by th e ):illar clamp scr ew , 30 . The
in ne r tube can swing hNizontally as much as
80 °, enabling the body to move to the fullest
ex
tent over the stage plate, fo r examining lar ge
specimens.
:29 . Eody Su pprt Block
14--
