Olympus X - Trans-Illuminating Stand; Sub-Stage Base; Illuminating Lamp; Hand-Rests

- 15-
0

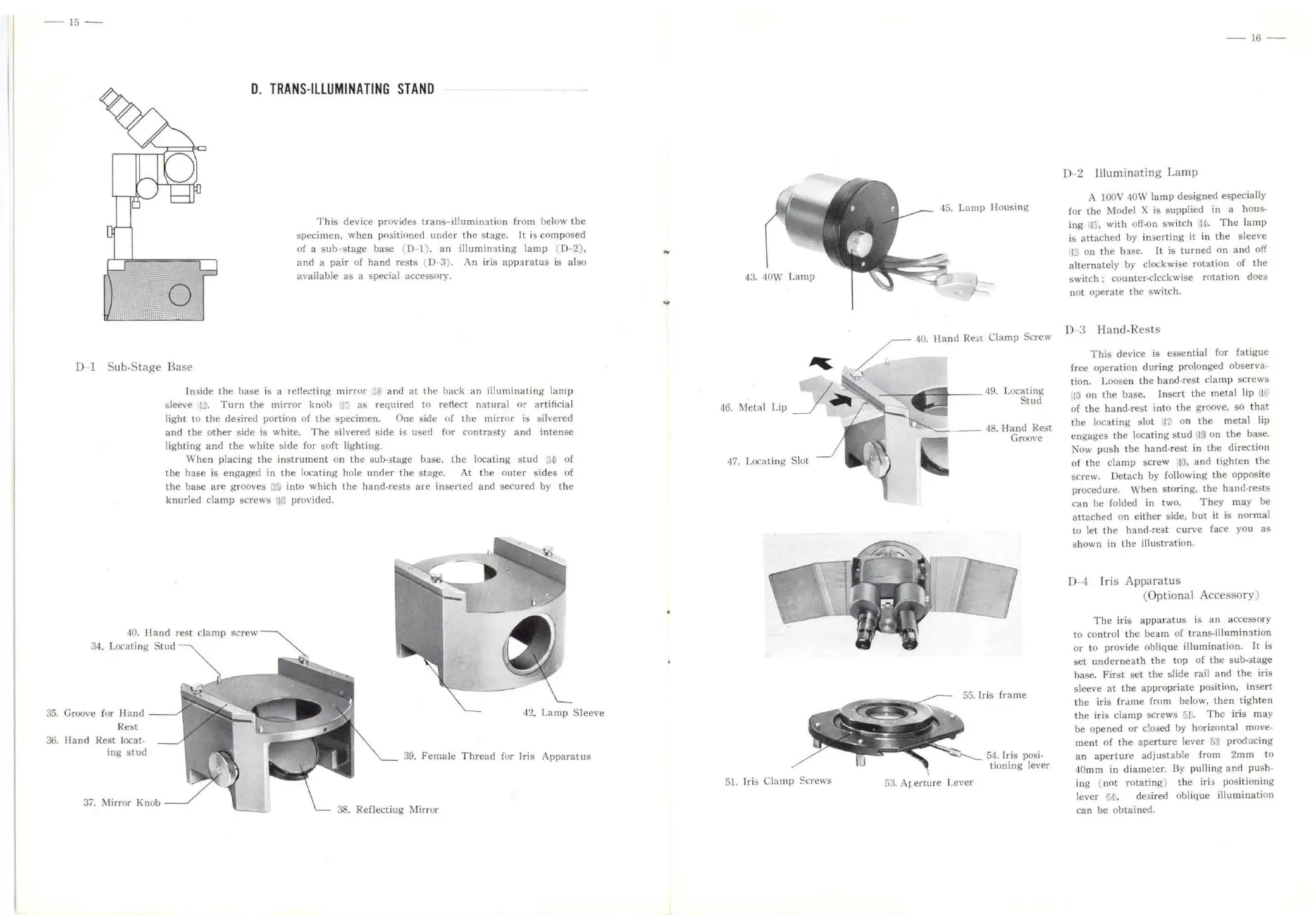

D. TRANS - ILLUMINATING STAND
This device pr ovides trans i llumination from below th e
specim
en, whe n po sit i oned un de r th e s tag e. lt is co mp osed
of a sub - stage base ( D 1 ). an i llumin'ltin g lamp ( D- 2) ,
and a pair of hand r es ts l 0 3). :\n iris apparatus is al so
available as a special accessory.
D-1 Sub-Stage Ba se
Inside the base is a reflecti ng mi rr or 3~ an d at t he back an illu minatin g la mp
sleeve 1?. T urn the mirror kn ob 37 as requi r ed to reflect natural or ar ti ficial
light to the des ired portio n of the specimen. One side of th e mirror is silver ed
and the other side is white. The silvered side is used for co n trasty and intense
li ghti ng a nd th e white side for sof t li g htin g.
When placing th e instrument on the sub·3 ta ge base, the locati ng stud Cl 4 of
the base is engaged in the locat in g h ole un der th e stage. At the o uter sides of
the base are grooves ,35 int o whi ch the hand-rests a1 e inserted and secured by the
knurled clamp sc r ews '10 provided.
40. ll a nd res t cl amp sc r ew
34. Locating Stud
3 5. Groove f or !l and
R est
36. H and H est l ocat.
ing stud
37. i\ lirror Knob
42. L amp S l eeve
39. Fema le Th r ea d for Iris Apparatus
...
43. 40W Lamp
46. Metal Lip
47. Locati ng Slot
51. Iris Cla mp Screws
45. Lamp llousing
}
j-
H and R e~t Clamp Screw
__ 48. H and Rest
Groove
55. Iris frame
53. A1. erture L ever
54. Iris pOsi -
tioning lever
-16 -
D 2 Illuminatin g L amp
A lOOV 40\V la mp designed especially
f or the i\ l ode l X is sup plied in a hous-
ing 1 5' , wit h off-on sw it ch I ~ 1. T he lam p
is
at ta ch ed by in se rting it in th e sleeve
1~ on the base. It is turned on and off
al
ternately by clockwi se rotation of the
switch; counter-clcckw i se rotation does
no t opera te the switch.
D-3 H an d -Rests
This device is essent i al f or fa ti gue
free operat i on during pr ol onged observa-
tion. Loo£en the hand-r es t cl am p scr ews
( ~0 on thE' base. J n ser t the metal l ip 116
of the hand-rest into the groove, so that
the locating slot 1 71 on the metal lip
engages the locat in g st ud '1 91 on th e base.
Now pu sh the hand -rest in th e direction
of the clam p sc rew ( 40'. a nd tig hten th e
screw. Det ac h by following the opposite
procedure. When st or in g, the hand-rests
can be folded in two. They may be
attac h ed on eit he r side, b ut it is normal
to Je t th e hand -rest c ur ve face you as
shown in th e i ll ust ration.
D -4 Iris Apparatus
( Optional Accessory )
Th e iris a pp arat us is an accessory
to co ntr ol t he bea m of trans-illumination
or to provide obliq ue illumination. It is
se t und e rn eath the top of the sub-s ta ge
base. Fir st se t the s li de rail and the iris
sl
eeve at the app rop riat e position, in ser t
th e iris fr ame from below, th en tight en
the iris
cla mp sc rew s 5 1. The iris ma y
be opened or c~ose d by hor izo ntal move-
ment of the aperture lever .53 producing
an aperture adjustable from 2mm to
40mm in di ameter. By pullin g a nd pu sh-
i ng ( not rotating ) t he iri3 position in g
lever 54, de.;;ired obli que illumin ation
can be ob t ai ned.
