Names of Parts
Names of Parts

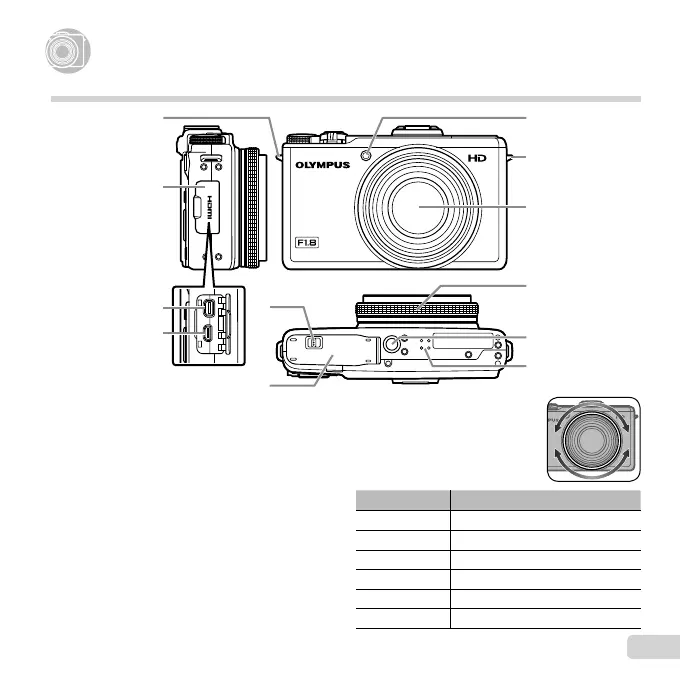

Camera unit
1 Strap eyelet...................................................p. 13
2 Connector cover ................... p. 15, 17, 60, 61, 64
3 Multi-connector ........................... p. 15, 17, 60, 64
4 HDMI micro connector .................................. p. 61
5 Self-timer lamp..............................................p. 38
AF illuminator ................................................p. 50
6 Lens ........................................................ p. 76, 91
7 Control ring ....................................... p. 27, 29, 30
8 Tripod socket
9 Speaker
10 Battery/card compartment lock ..................... p. 13
11 Battery/card compartment cover...................p. 13
The Control Ring
The Control Ring
Rotate the control ring to adjust
settings during shooting.
Shooting mode Affected setting
P / h
ISO sensitivity
A / M Aperture
S Shutter speed
SCN Scene mode
ART Art fi lter mode
C Same as original shooting mode
1
5
1
6
8
7
9
2
10
11
3
4
