5
●

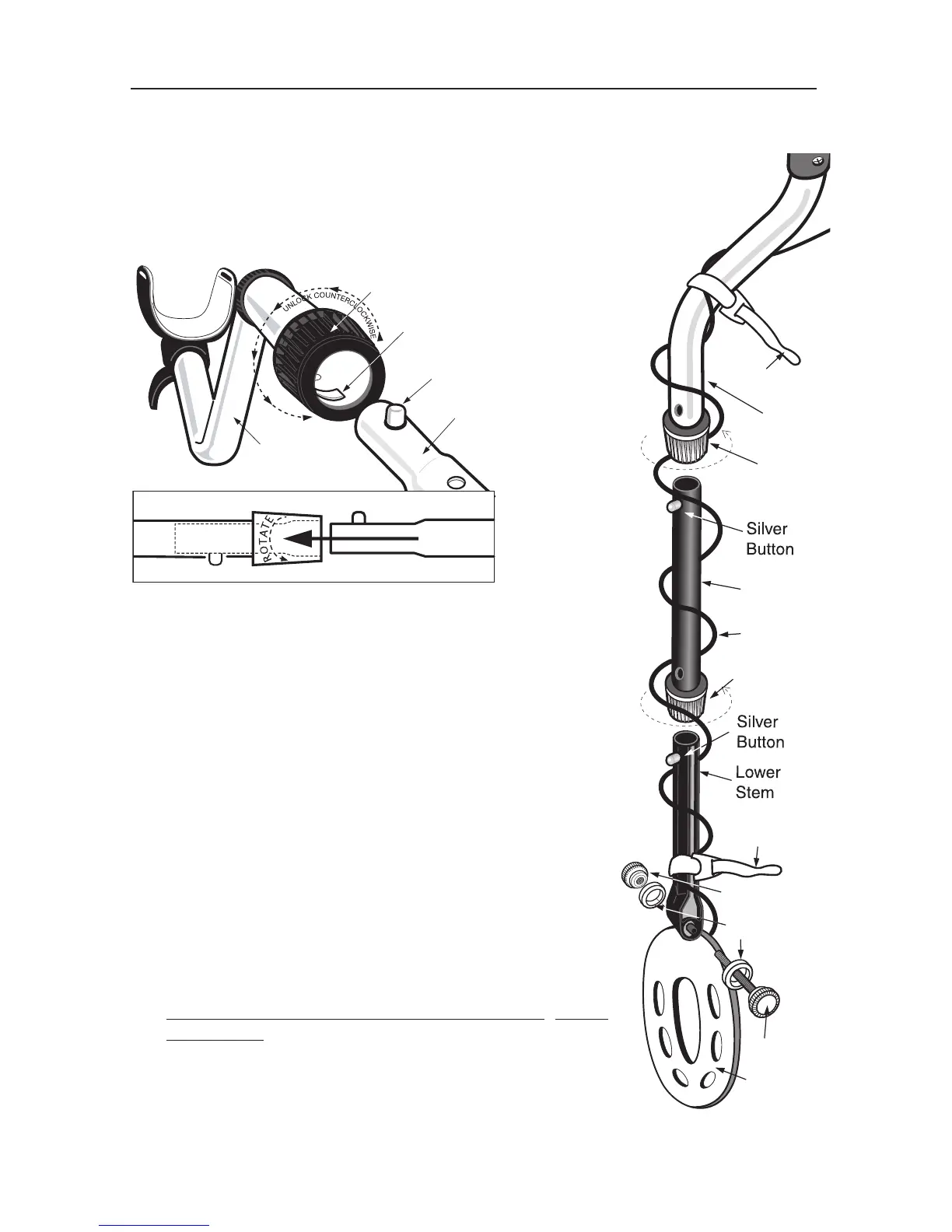

1 Position S-Rod upright.
●
2 Rotate the LOCKING COLLAR fully in the
counterclockwise direction.
●
3 Insert your finger inside the tube and make sure the
INTERNAL CAM LOCK is flush with the inside of the
tube.
●
4
Insert the MIDDLE STEM into the S-ROD,
with the SILVER BUTTON pointed upward.
●
5 Rotate the MIDDLE STEM until the SILVER BUTTON
locates in the hole.
●
6 Twist the LOCKING COLLAR fully in the clockwise
direction until it locks.
●
7 Repeat this process on the LOWER STEM.
●
8 Using the BOLT and KNURLED KNOB, attach the
SEARCHCOIL to the LOWER STEM.
●
9
Adjust the LOWER STEM to a length that lets you maintain
a comfortable upright posture, with your arm relaxed at your
side, and the SEARCHCOIL parallel to the ground in front
of you.
●
10
Wind the CABLE securely around the STEMS.
●
11
Connect CABLE PLUG to housing.
Do not twist the Cable or Plug. Turn Locking Ring only.
Use minimal finger pressure to start the threads
. Do not
cross-thread. When the Locking Ring is fully engaged
over the threaded connector, give it a firm turn to make
sure it is very tight. When the Locking Ring is fully
engaged over the threaded connector, it may not cover all
of the threads.
●
12
Tighten both LOCKING COLLARS.
●
2
●
3
●
4
●
4
●
5
*
Note: Very tall users can purchase the optional Extended Lower Stem (TUBE5X), for extended reach.
Caution:
Forcing in MIDDLE STEM with CAM LOCK raised may form a burr on
cam lock. If this happens, remove burr with knife to allow insertion.
