DISASSEMBLY
19

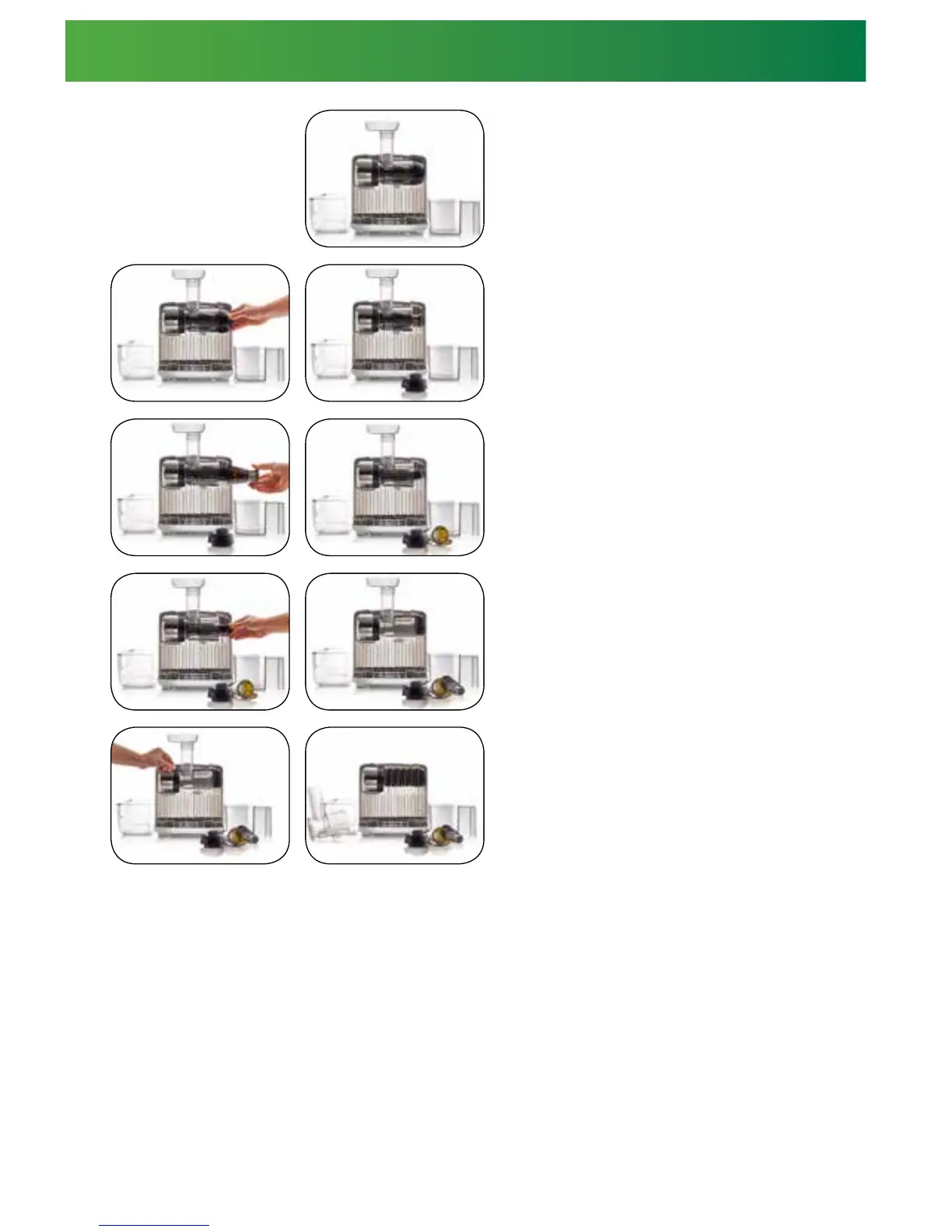

1. Remove the juice bowl and the
pulp bowl.
2a. Adjust the tension adjust knob
clockwise to release it from the
adjustable end cap. Remove.
2b. Set adjustable end cap
to the side.
3a. Remove the juicing cone
(or homogenizer cone) by pulling
it straight out.
3b. Set juice cone to the side.
4a. Remove the auger by pulling it
straight out.
4b. Set the auger to the side.
5. Remove the hopper from the top
of the feed chute by pulling it up
and off.
5a. To remove the drum, adjust the
locking clip counter-clockwise to
OPEN. This will release the drum.
5b. Set the hopper and drum to the side.
1
2a 2b
3a
4a
5a
3b
4b
5b
