HOW TO ASSEMBLE

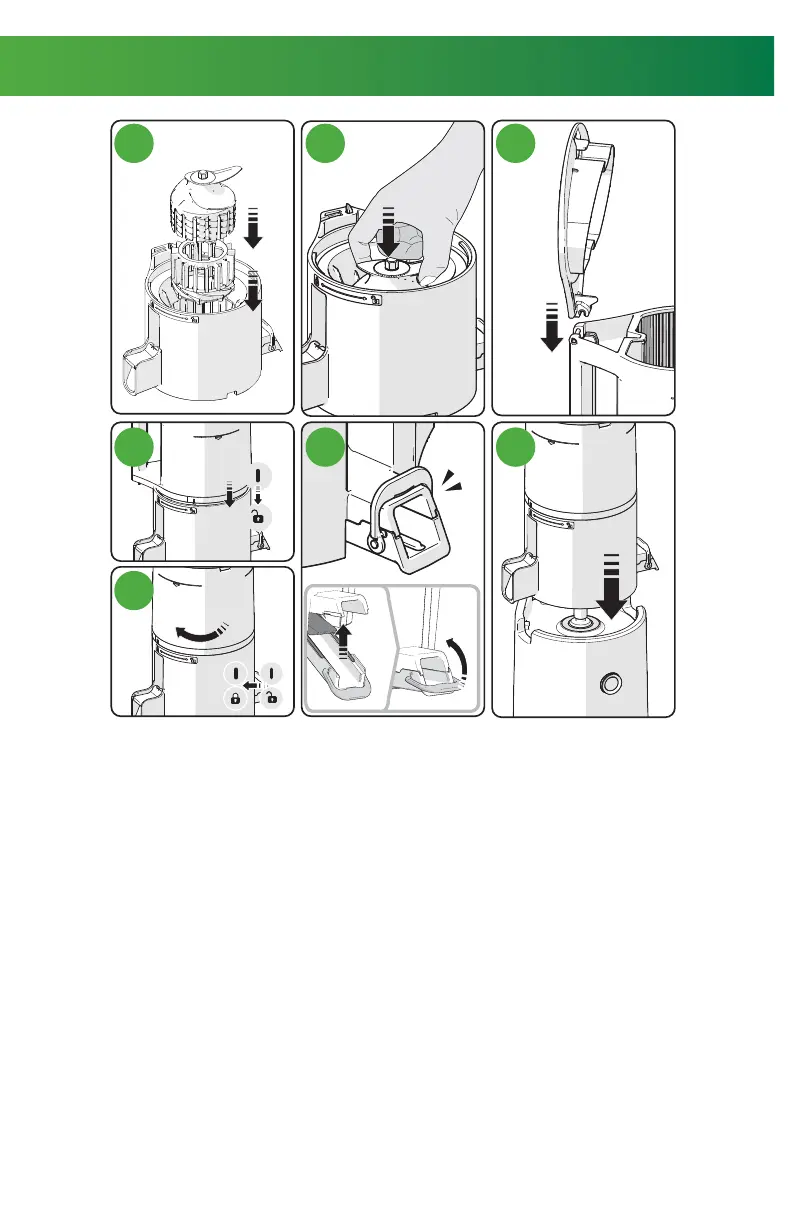

1 Insert the bottom part of auger into the chamber, and insert the top part of the
auger as shown in the gure.
2 Firmly press down the top part of the auger and the bottom part of auger
assembled in the chamber.
3 Assemble the hopper cover vertically onto the hopper.
4 Align the hopper assembly guide mark with the chamber assembly guide
mark to assemble them.
5 Turn the assembled hopper clockwise up to the chamber assembly guide mark.
If the internal parts are not assembled correctly, the hopper will not close.
6 Check if the discharge cover and the loop of the chamber are properly closed.
1. Lift the discharge cover to close it and fasten it with the loop.
2. If the packing is not correctly assembled or the lever is not properly
closed, juice may leak or the lever may open during extraction.
7 Place the correctly assembled chamber set onto the top housing.
Assemble the chamber set rst and then install it on the product body.
1 2 3
