Omega JCUBE500 - Homogenizing Assembly Procedure

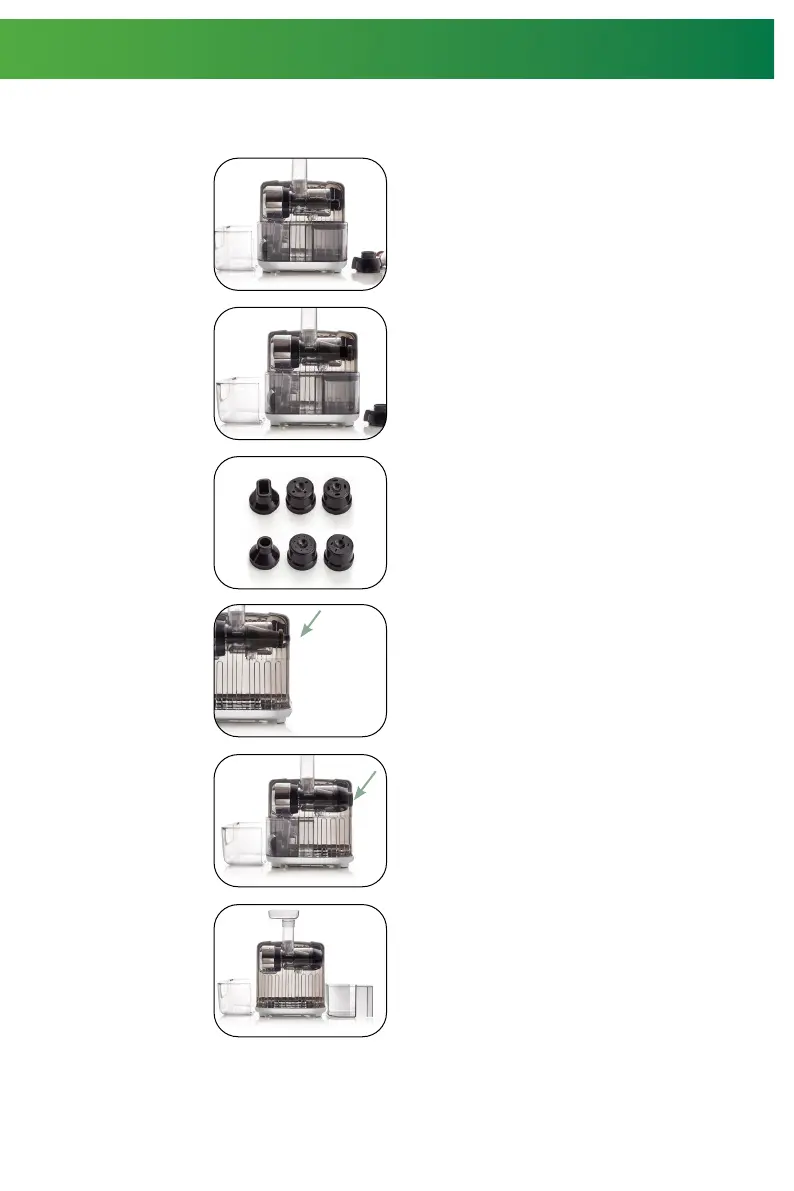

ASSEMBLY FOR HOMOGENIZING
1. Follow steps 1-7 in Assembly.
2. Place auger into the drum. Straight
in, until the auger clicks into place.
3. Insert the homogenizer cone over
the auger. The extended part of the
homogenizer cone should be
facing down.
4. Select the nozzle
5. Place the selected nozzle inside the
homogenizer.
6. Screw the adjustable end cap
onto the end of the drum.
7. Place the pulp bowl at the end of
the chute to begin homogenizing.
