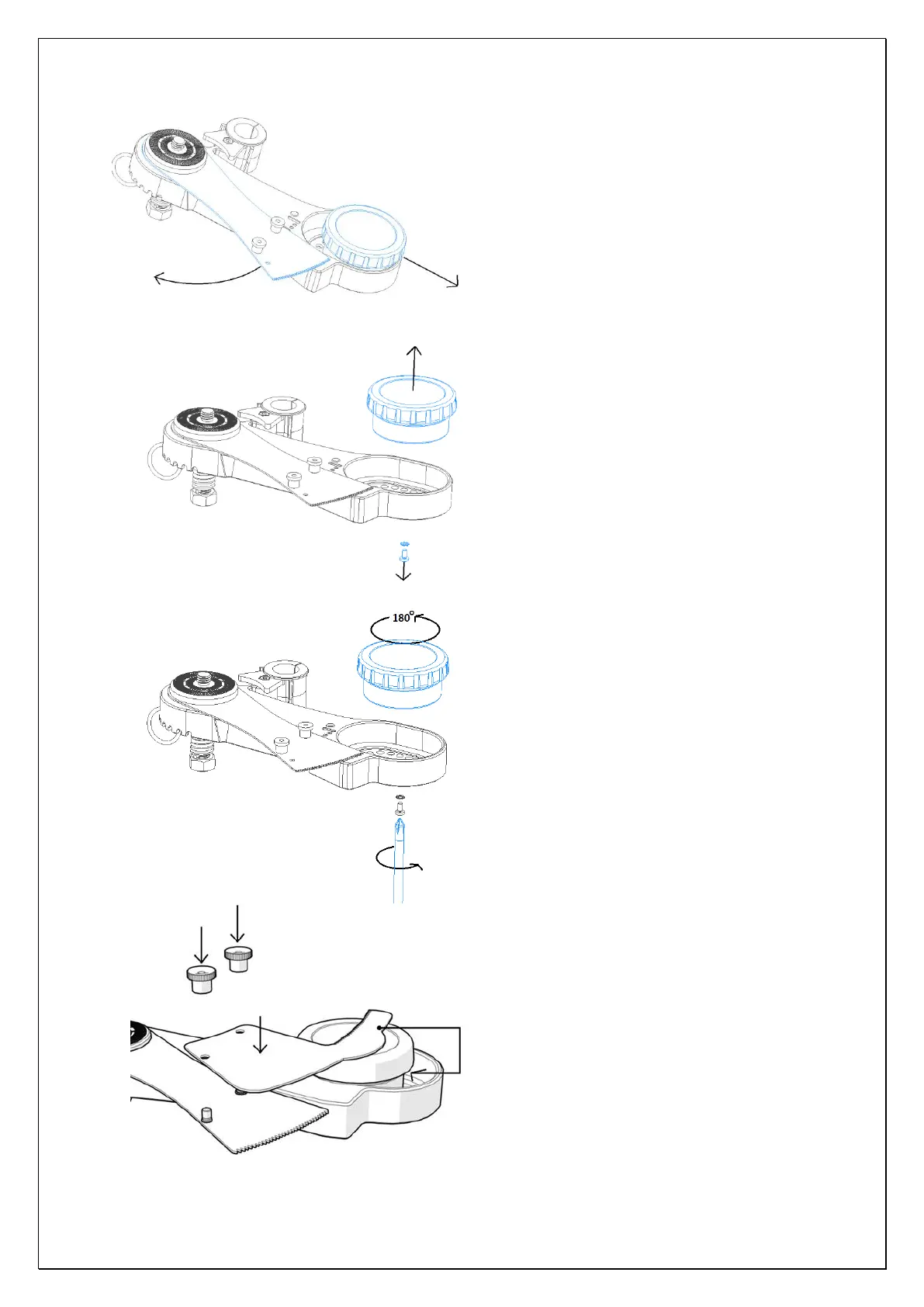

7.3. Push the winding knob (#7) away from the arm in
order to slide the arm to the left – please make sure to
just give it a slight push and make sure the spring is not
preventing this movement.
7.4. Remove the winding knob (#7) and the timer screw
and washer (#10) as shown.
7.5. Turn the winding knob (#7) 180 degrees form its
original position (upside down) and screw back the timer
screw and washer (#10 Side B) but do not tighten it yet!
7.6. Place the south arm (C) and adjust it to the arm so
the it is placed between the winding knob and the timer.
Make sure that the two protruding studs and the arm’s
through holes are aligned. The winding knob should
move freely and be easily-adjustable to the south arm’s
teeth.
