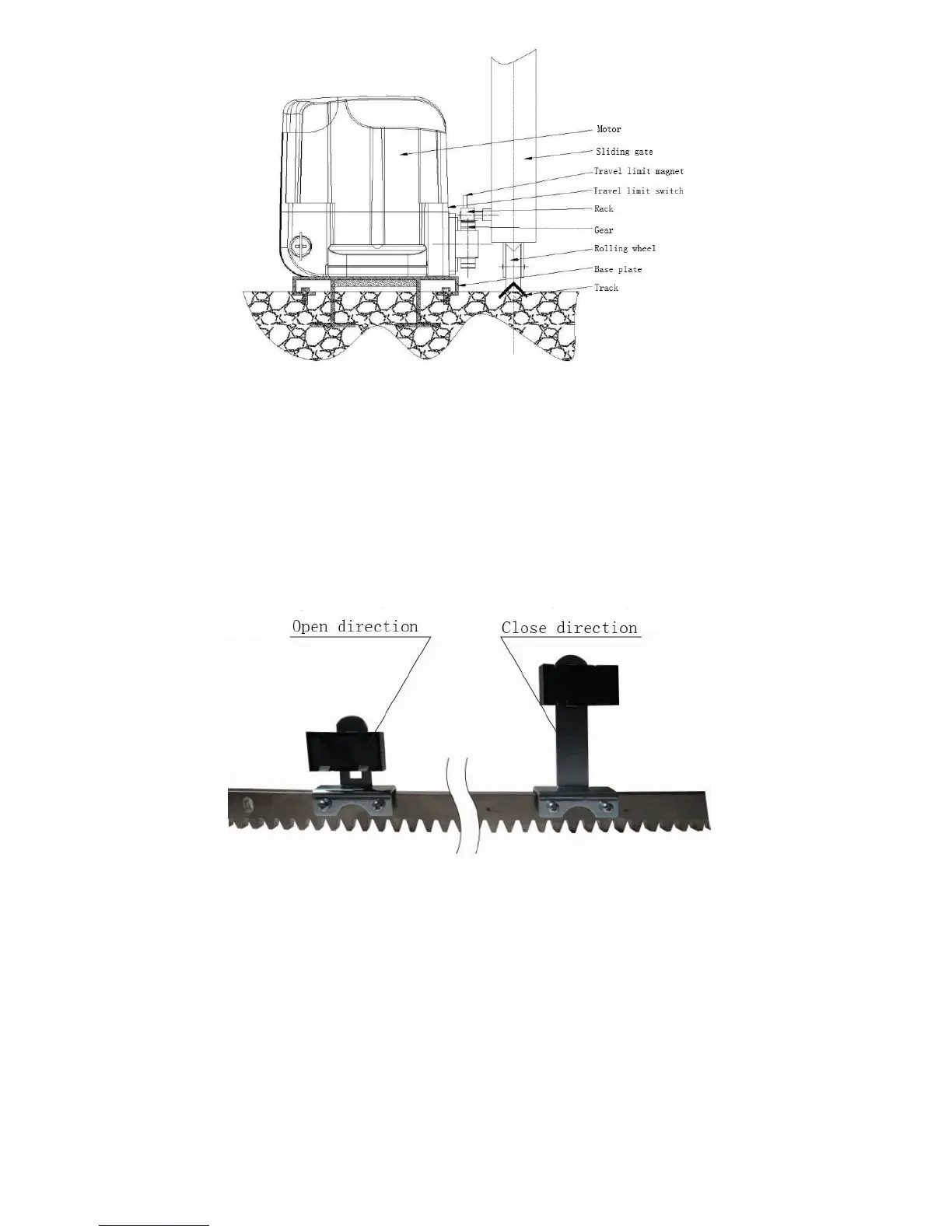

Fig.8
5-5 Limit switch bracket installation:
Move the gate manually to the open limit and close limit,mark the points on the rack,then fix
the magnet bracket at the limit points on the rack.
Pay attention to the direction of limit switch bracket: if it is anti-installed, the motor can not be
positioned .
Fig.9
5-6 Clutch lock:
When the motor is out of electricity or has faults, can not work normally, customer can use
clutch key to release clutch lock then realize manual operation to open or close the door.
Note: Engage the clutch when the motor resume normal work.
