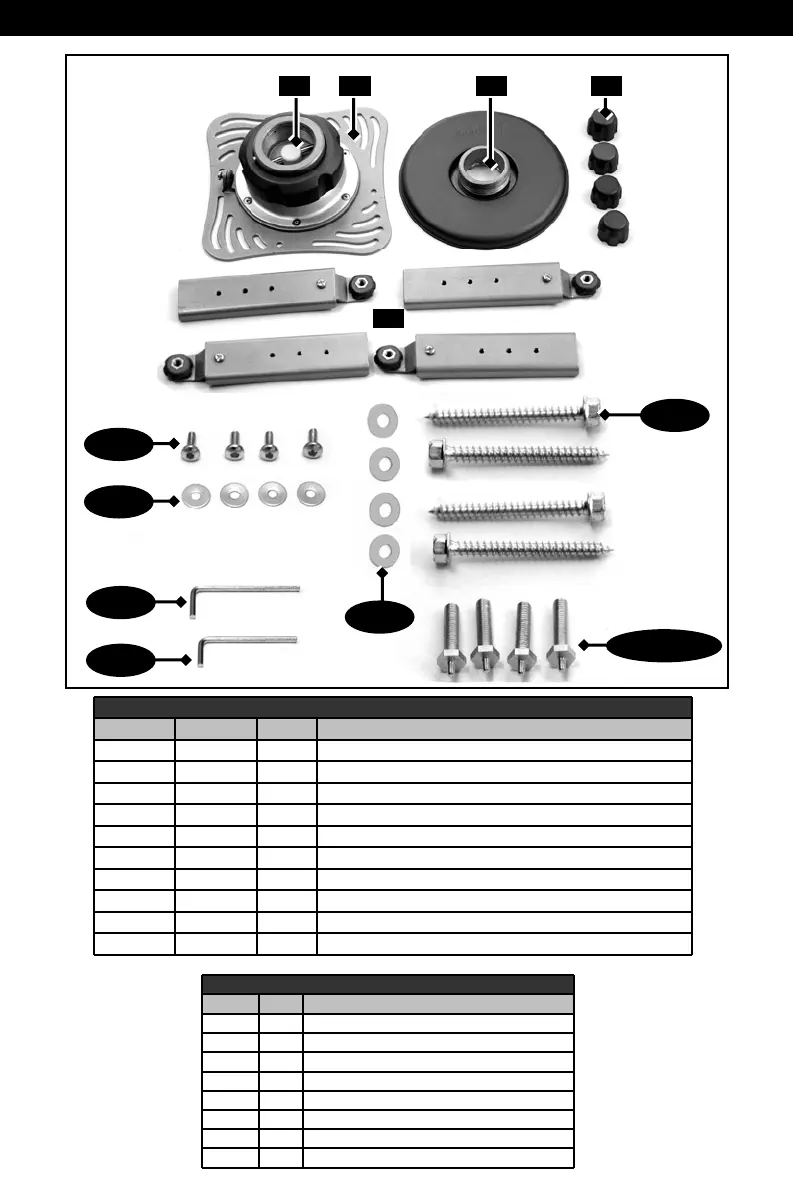

Contents
Contents
Part# Qty Description
1 1 Projector Plate
2 1 Articulation Unit
3 1 Ceiling Plate With Cover
4 4 Leg Post Covers
5 4 Projector Legs
6 1 Phillips Screw M5 x 6mm
7 1 Phillips Screw M5 x 12mm
8 1 Set Screw
OM10131vB
Pouch # Part # Qty Description
1 P-A 4 Leg post 3mm
2 P-B 4 Leg post 4mm
3 P-C 4 Leg post 5mm
4 P-D 4 Leg post 6mm
5 P-E 4 Pinned Hex Screws M5 x 12mm
6 P-F 4 Philips Lag Screws
7 P-G 4 Washer 8.5mm ID x 18mm OD x 1.5mm THK
8 P-H 4 Washer 5mm ID x 15mm OD x 1mm THK
9 P-I 1 Allen Wrench 3mm
10 P-J 1 Allen Wrench 4mm
P-I
P-A – P-D
P-F
12 3 4
5
P-H
P-J
P-E
P-G
