Omnimount OC120FM - STEP 5: Mount Arm Assembly; Attaching Arm to Wall Bracket

PN:888-61-145-W-03 RevF
18

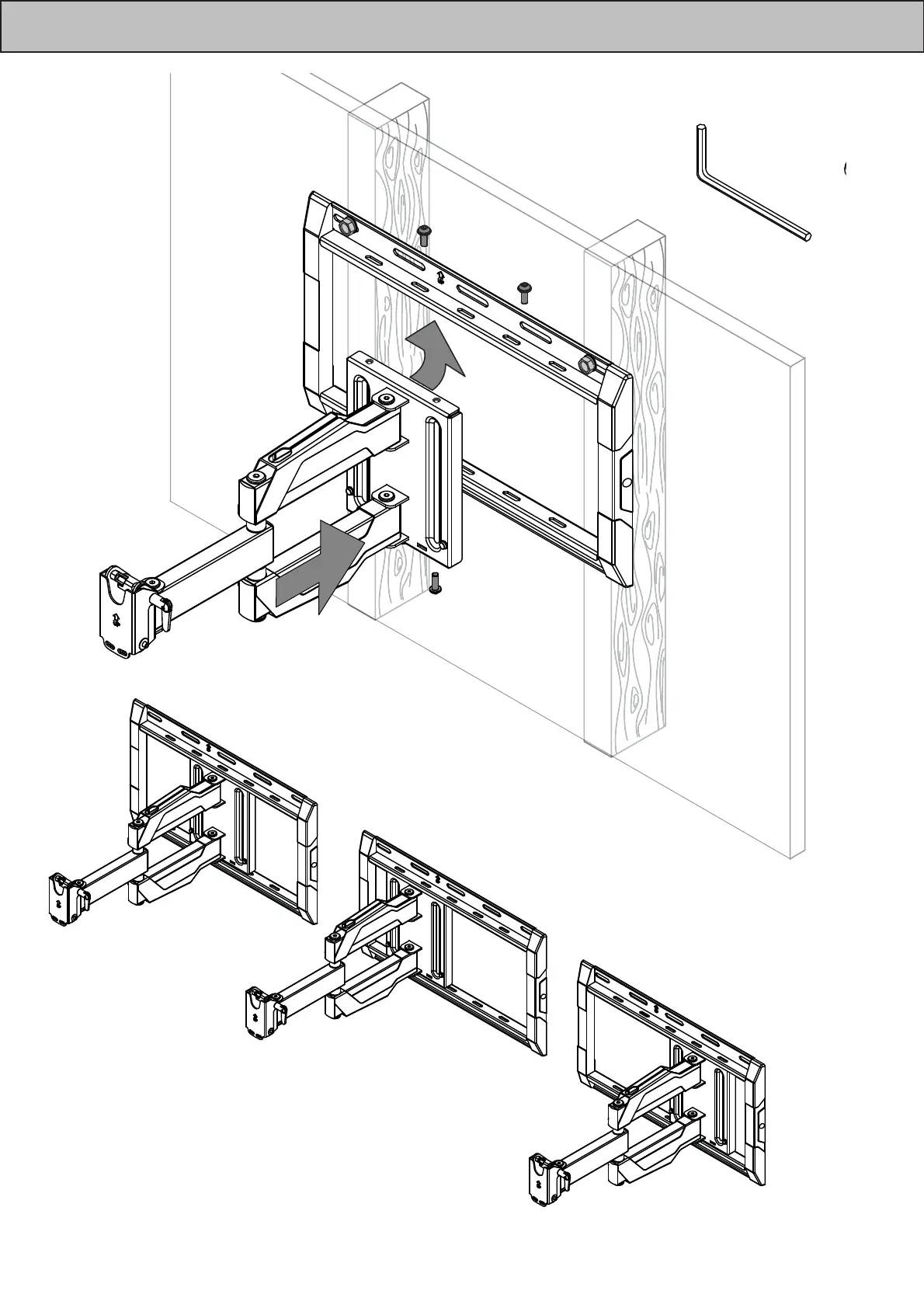

STEP 5
NOTE: For safe and proper installation be sure to install the 4 locking screws as shown.
7
1
2
Center Posititon
Left Posititon
Right Posititon
P-F
