Omnimount OC175T User Manual

PN: 888-61-028-W-00 Rev A
9
Screws / Hardware for Flat Panel
Part # Qty Description
M-A 4 Philips screws M4 x 15mm
M-B 4 Philips screws M4 x 30mm
M-C 4 Philips screws M5 x 15mm
M-D 4 Philips screws M5 x 30mm
M-E 4 Philips screws M6 x 15mm
M-F 4 Philips screws M6 x 30mm
M-G 4 Philips screws M8 x 15mm
M-H 4 Philips screws M8 x 30mm
M-I 4 Round Spacers: M6-M8 x 5mm
M-J 4 Round Spacers: M6-M8 x 10mm
M-K 4 Round Washers: M4-M5
M-L 4 Round Washers: M6-M8
Part # Qty Description
W-A 4 Lag Bolts (8mm x 65mm)
W-B 4 Steel Washer
W-C 4 Wall Anchor (10mm OD x 8mm ID)
Part # Qty Description
P-A 1 Security 4mm Allen Wrench
P-B 1 T-Handle 5mm Allen Wrench

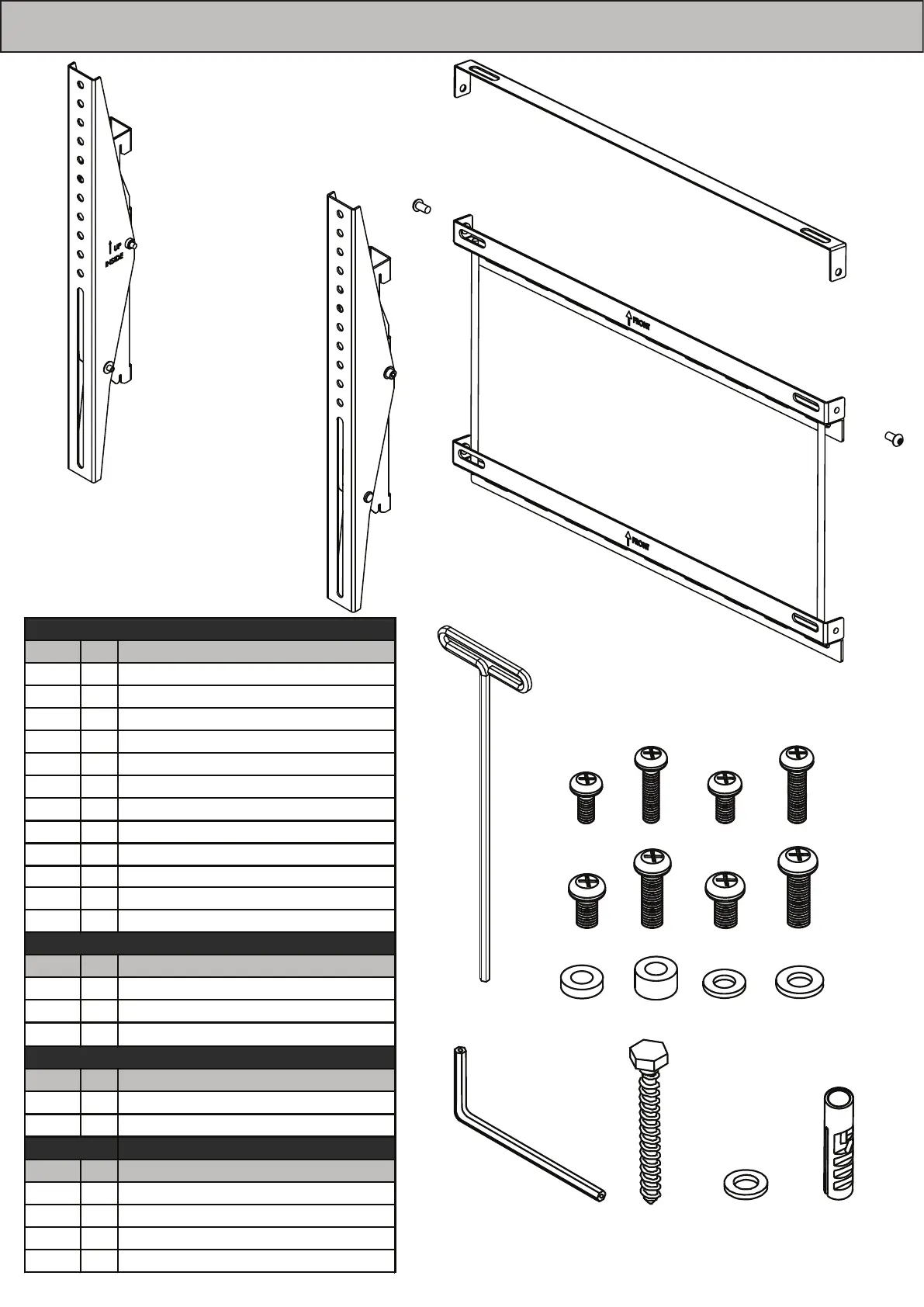

Contents
Part # Qty Description
1 1 Wall Plate
2 2 Vertical Rails
3 1 Locking Bar
4 2 Security Allen Screw
Wall Kit
Specialty Hardware
CONTENTS
2
1
3
M-A M-B M-C
W-A W-B
M-D
M-E M-F M-G M-H
M-I M-J M-K M-L
W-C
4
P-A
P-B

Omnimount OC175T Specifications

General

Mounting type	Wall
Maximum VESA mount	600 x 400 mm
Minimum VESA mount	100 x 100 mm
Maximum screen size	80 \
Minimum screen size	37 \
Maximum weight capacity	79.4 kg
Tilt angle range	0 - 15 °
Certification	UL
Product color	Black
Manual	Yes

Weight and Dimensions

Depth	69 mm
Width	812 mm
Height	533 mm
