12 of 15
888-61-279-W-01 rev. C • 04/19
8
9

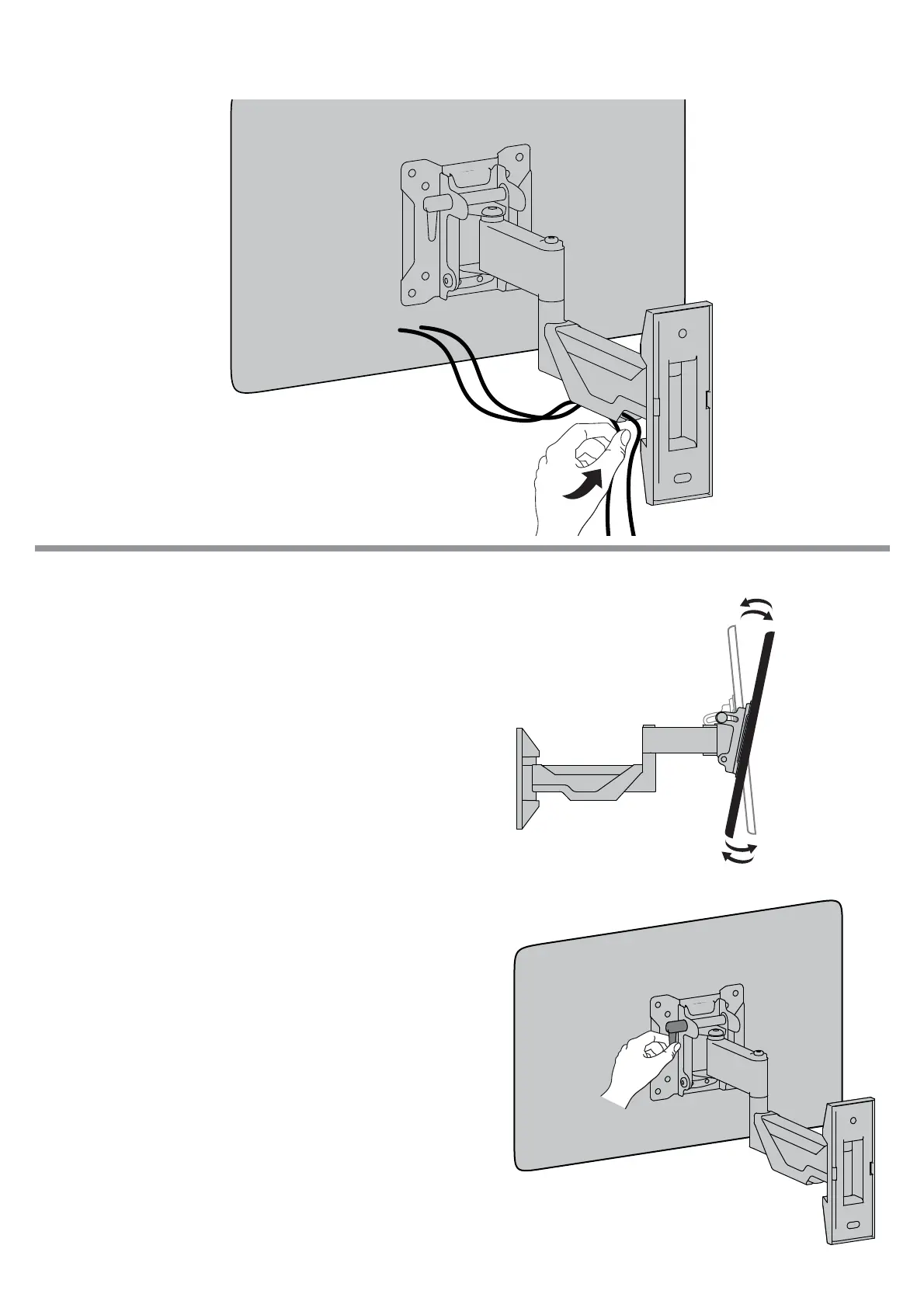

Route your cables through the cable channel attached to the extension.
Be careful of possible pinch points and feel free to use extra cable
bundling or zip ties for a clean installation.
ﺎﮭﻣﺎﻛﺣإ مﺛ ﺎﮭطﺑﺿو ةدﻘﻌﻟا ءﺎﺧرﺈﺑ مﻗ ،لﯾﻣﻟا ﺔﯾواز رﯾﯾﻐﺗﻟ.
Para alterar o ângulo de inclinação, solte o botão, ajuste e
aperte-o novamente.
Для изменения угла наклона ослабьте зажим,
отрегулируйте угол, затяните зажим.
Per modifi care l’angolo di inclinazione, allentare la
manopola, regolare e serrare la manopola.
Zum Verändern des Neigungswinkels den Knopfregler
lockern, einstellen und wieder anziehen.
Pour changer l’angle d’inclinaison, desserrez le bouton,
effectuer l’ajustement et resserrez le bouton.
Para cambiar el ángulo de inclinación, afl oje la perilla, ajuste
la pantalla y apriete la perilla.
To change tilt angle, loosen knob, adjust and tighten knob.
