Omnimount OS120F User Manual

PN:888-60-551-M-01 RevD
9
CONTENTS

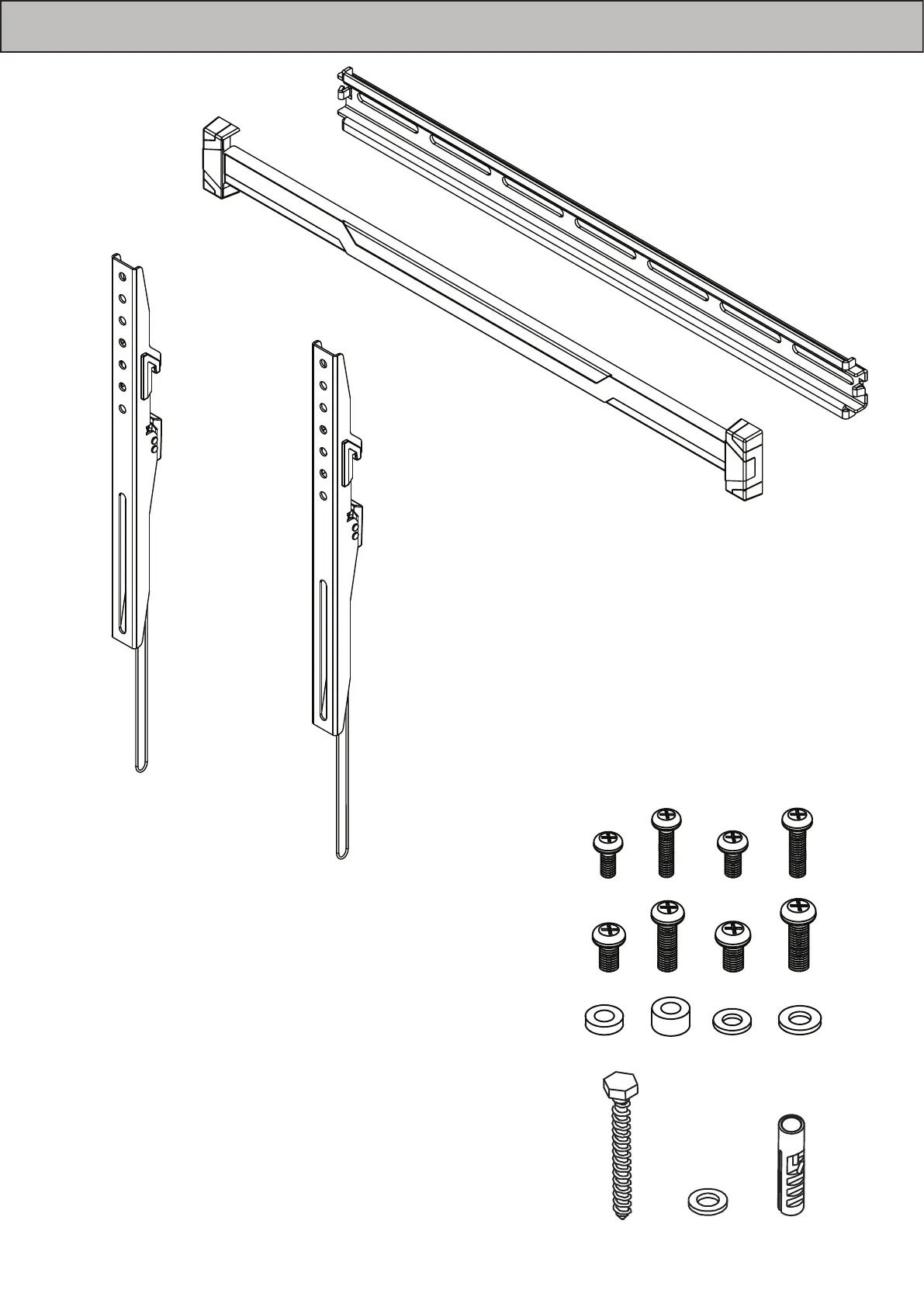

Contents
Part # Qty Description
1 1 Wall Plate
2 1 Wall Plate Cover
3 2 Vertical Rail
4 2 Locking Mechanisms
2
1
3
M-A M-B M-C
W-A W-B
M-D
M-E M-F M-G M-H
M-I M-J M-K M-L
W-C
4
SCREWS/HARDWARE FOR
WALL MOUNTING -
Part # Qty Description
W-A 2 Lag Bolt
W-B 2 Washer
W-C 2 Wall Anchor
3

Omnimount OS120F Specifications

General

Mounting type	Wall
Maximum VESA mount	600 x 400 mm
Minimum VESA mount	100 x 100 mm
Maximum screen size	70 \
Minimum screen size	37 \
Maximum weight capacity	54.4 kg
Certification	UL
Product color	Black
