Omnimount OS120FM User Manual

PN:888-45-273-W-00 RevD

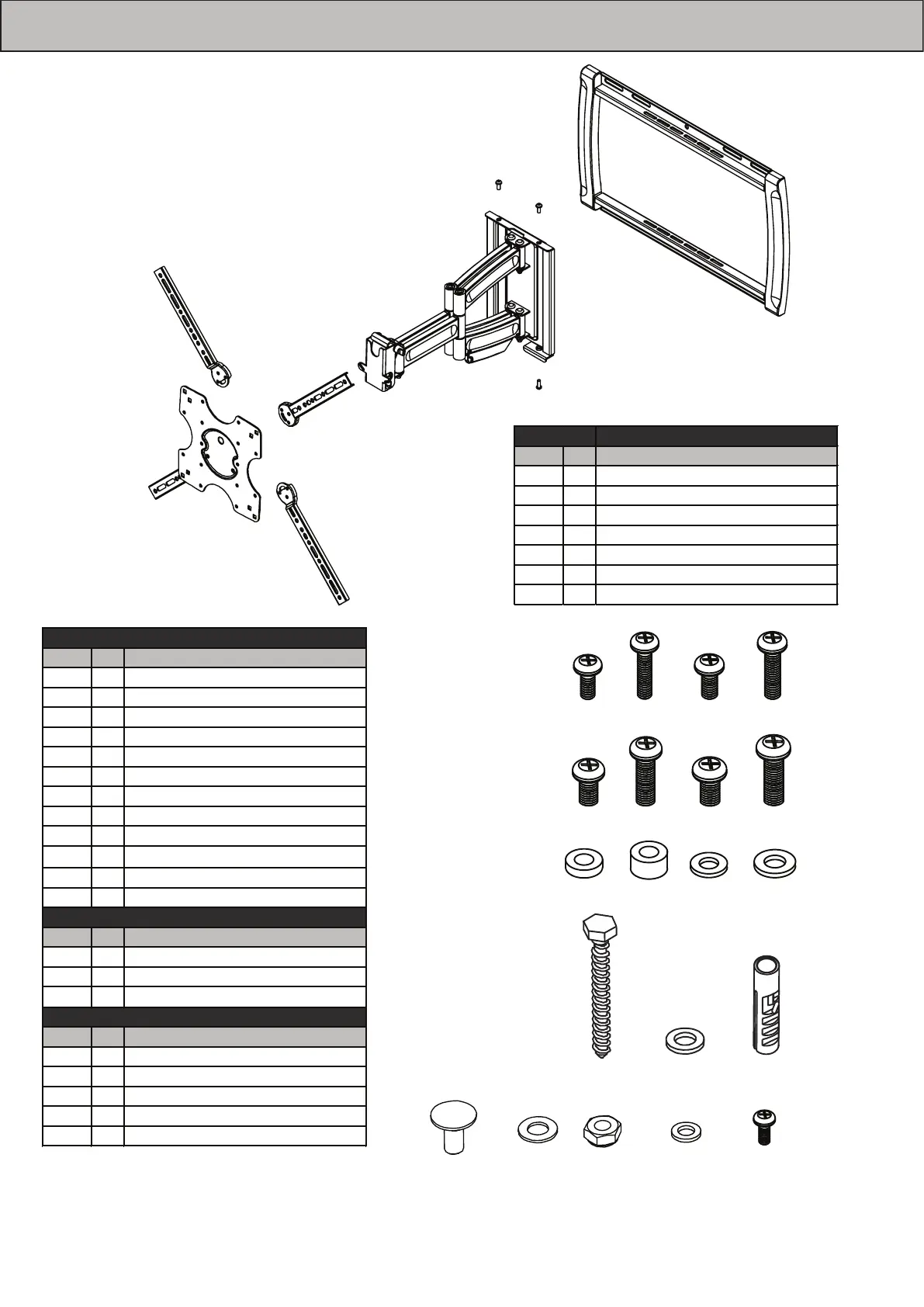

9
Screws / Hardware for Flat Panel
Part # Qty Description
M-A 4 Philips screws M4 x 15mm
M-B 4 Philips screws M4 x 30mm
M-C 4 Philips screws M5 x 15mm
M-D 4 Philips screws M5 x 30mm
M-E 4 Philips screws M6 x 15mm
M-F 4 Philips screws M6 x 30mm
M-G 4 Philips screws M8 x 15mm
M-H 4 Philips screws M8 x 30mm
M-I 4 Round Spacers: M6-M8 x 5mm
M-J 4 Round Spacers: M6-M8 x 10mm
M-K 4 Round Washers: M4-M5
M-L 4 Round Washers: M6-M8
Part # Qty Description
W-A 4 Lag Bolts (8mm x 65mm)
W-B 4 Steel Washer
W-C 4 Wall Anchor (10mm OD x 8mm ID)
Part # Qty Description
P-A 8 Carraige Bolt
P-B 8 Washer
P-C 8 Nylock Nut
P-D 2 M4 Washer
P-E 2 Phillips Screw M4x6mm
Specialty Hardware
Wall Kit
Contents
Part # Qty Description
1 1 Wall Plate
2 1 Arm Assembly
3 1 Cable Management
4 1 Monitor Plate
5 1 Tilt Tension Handle
6 4 Spider 46 Adapters
7 4 Lateral Adjustment Screws
CONTENTS
M-A M-B M-C
W-A W-B
P-A
2
1
3
4
5
7
M-D
M-E M-F M-G M-H
M-I M-J M-K M-L
W-C
P-B P-C P-D P-E
6

Omnimount OS120FM Specifications

General

Mounting type	Wall
Maximum VESA mount	600 x 400 mm
Minimum VESA mount	100 x 100 mm
Maximum screen size	70 \
Minimum screen size	42 \
Maximum weight capacity	54.4 kg
Tilt angle range	-3 - 10 °
Product color	Black
Manual	Yes

Weight and Dimensions

Width	574 mm
Height	329 mm
