Omnimount OS120T User Manual

PN:888-60-552-M-01 RevD
9

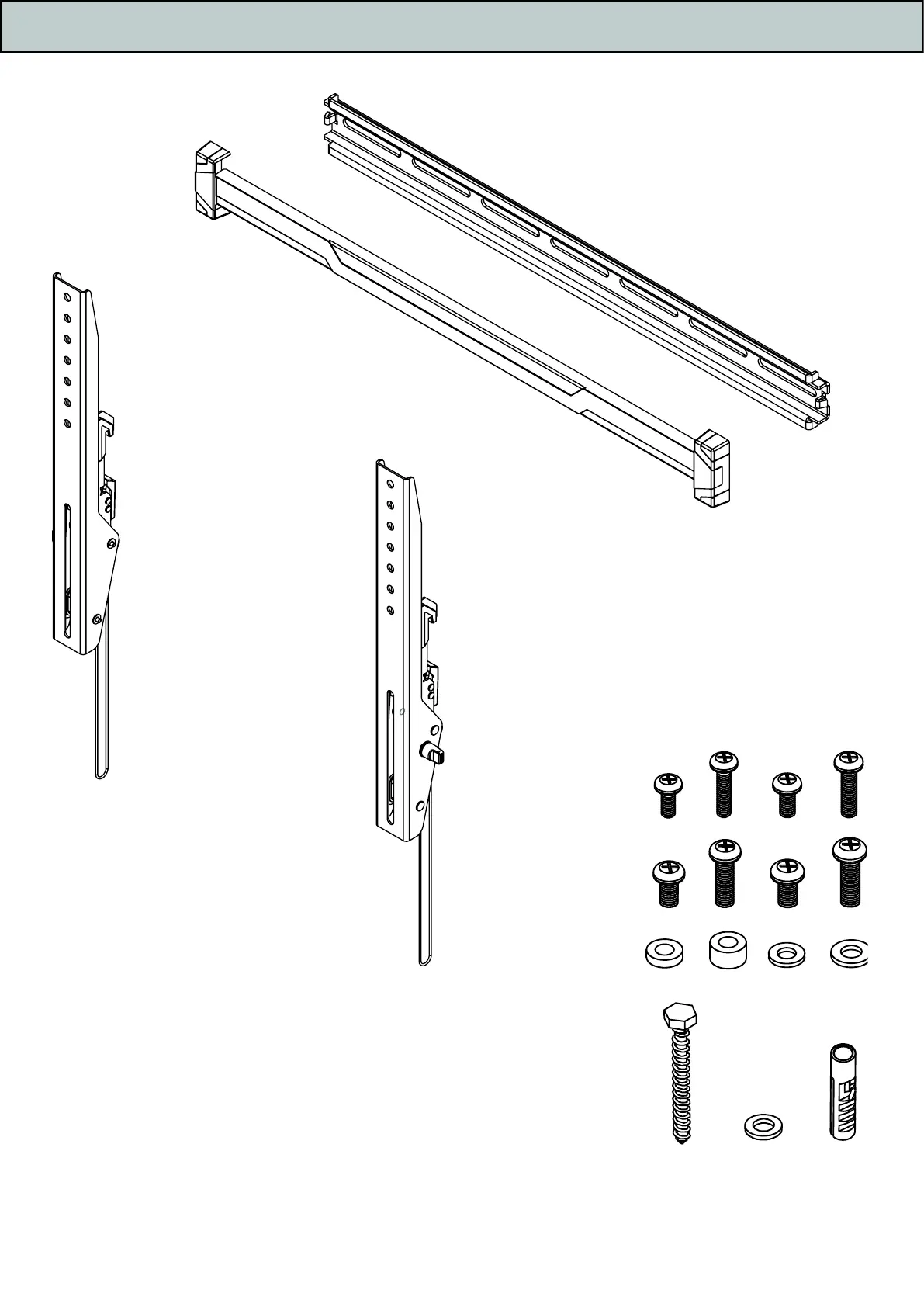

CONTENTS
Contents
Part # Qty Description
1 1 Wall Plate
2 1 Wall Plate Cover
3 1 Right Rail
4 1 Left Rail
5 2 Tilt Tension Knobs
6 2 Locking Mechanisms
2
1
3
M-A M-B M-C
W-A W-B
M-D
M-E M-F M-G M-H
M-I M-J M-K M-L
W-C
4
SCREWS/HARDWARE FOR
WALL MOUNTING
Part # Qty Description
W-A 2 Lag Bolt
W-B 2 Washer
W-C 2 Wall Anchor
5
6

Omnimount OS120T Specifications

General

Brand	Omnimount
Model	OS120T
Category	TV Mount
Language	English
