3 Screw off the phono cartridge system from the support and pull off the connection wires.
4 Tightly screw the new phono cartridge system on the support and put on the wires as follows:
white left channel positive pole
blue left channel negative pole
red right channel positive pole
green right channel negative pole
5 For optimized pick-up the overhang – the distance between the stylus and the axle of the turntable –
should be set to 15 mm. Make sure that the system is centered (correct azimuth) and the screws are
fixed (Fig. 9).
6 After replacing the phono cartridge system, readjust the stylus pressure and the anti-skating value
(chapters 5.3 and 5.4).

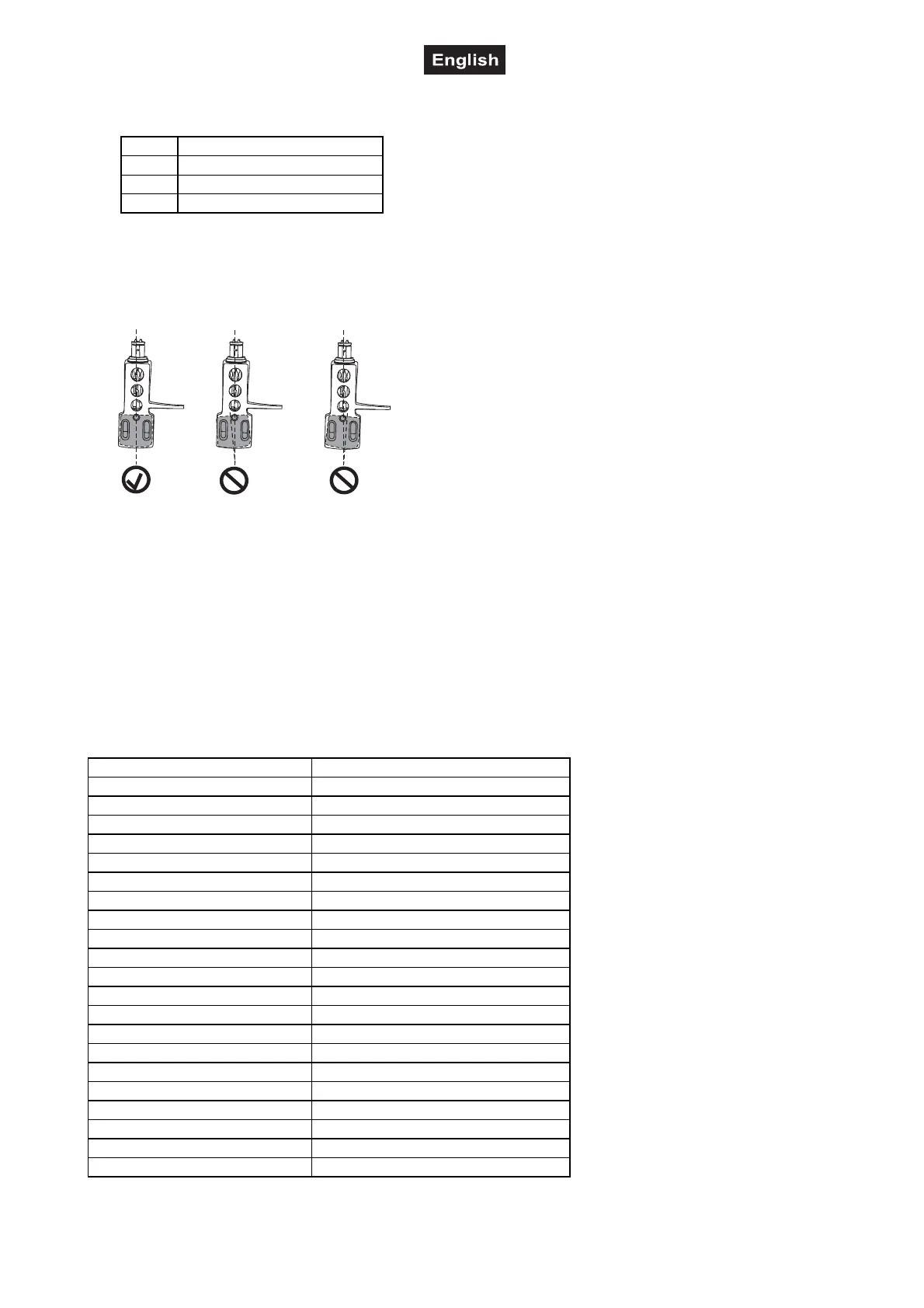

Fig. 9: Adjusting the azimuth
9.2 Replacement headshell
A replacement headshell (e. g. the headshell S-15 from OMNITRONIC) including a phono cartridge system
allows an immediate replacement, if required. The headshell can easily be replaced by unscrewing the
existing one and screwing on the new one. After the replacement readjust the stylus pressure and the anti-
skating value (chapters 5.3 and 5.4).
10. TECHNICAL SPECIFICATIONS
Power supply: 115/230 V AC, 50/60 Hz ~
Starting current: 120 mA max.
Power consumption: 8 W
Type: Manual turntable
Drive method: Belt drive
Motor: DC motor
Platter: plastic, Ø 330 mm
Speed: 33 1/3 RPM and 45 RPM
Change time between speeds: <1 sec
Start time: <1 sec
Stop time: <1 sec
Pitch adjustment: ±10 %
Wow and flutter: <0.25 % W RMS
Rumble: 50 dB DIN B
Tone arm: S-shape with Cardan's suspension
Tone arm length: 220 mm
Overhang: 10 mm
Anti-skating range: 0-4 g
Stylus pressure range: 3-4 g
Applicable cartridge weight: 6-10 g
Dimensions: 450 x 350 x 145 mm
Weight: 4 kg
Please note: Every information is subject to change without prior notice. 12.01.2009 ©
