Omnitronic EX-530 - Page 7

Date: March 9, 2000 Sheet 11 of 15 Size Document Number REV
B OUTPUT.SCH A
Title

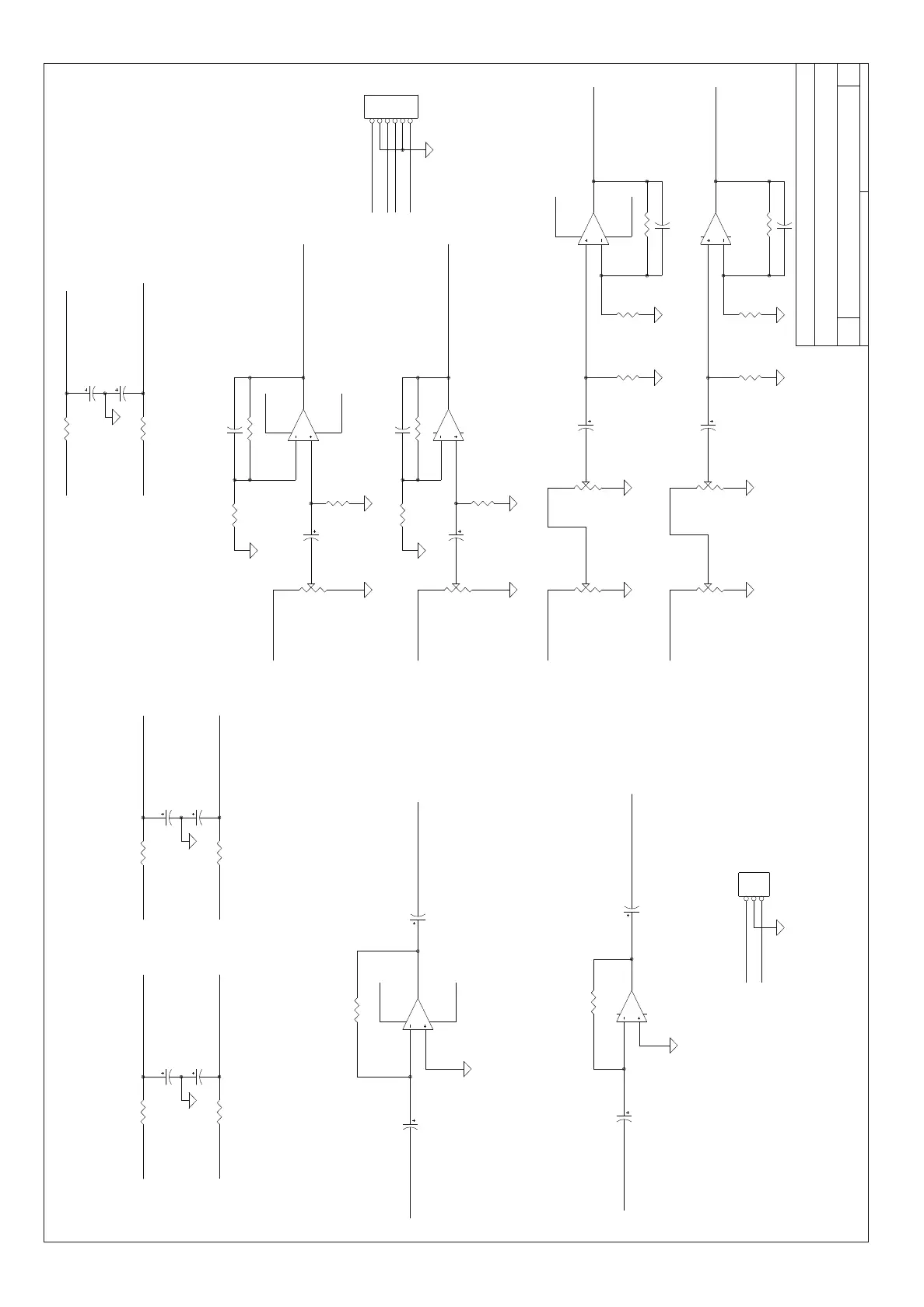

EX530 REC/BTH/MAST OUTPUT
OMNITRONIC
+VPP6 -VPP6
+12V -12V
R709
100 1/4W
R809
100 1/4W
C708 47uF/16V* C808 47uF/16V*
+VPP5+12V
R714
100 1/4W
+VPP4+12V
R702
100 1/4W
-12V
R802
100 1/4W
-VPP4
C703 47uF/16V* C803 47uF/16V*
-12V
R814
100 1/4W
C711 47uF/16V* C811 47uF/16V*
-VPP5
R711
910
C712
39pF
R712 1.8K
BTH_L
3 2
1
8 4
IC703A
4558
-VPP5 +VPP5
REC_L
R710 100K
VR702A
50KA
BOOTH C710
4.7uF/50V*
R705 4.7K
C705
22uF/25V
LL
-VPP4
3 2
1
8 4
IC801A 4558
REC_L
C706
22uF/25V
REC_R
VR702B
50KA
BOOTH
C810
4.7uF/50V*
R811
910
5 6
7
IC703B
4558
C812
39pF
R812 1.8K
BTH_R
1 2 3 4 5 6
P8
HEADER 6
MAST R MAST L BTH R BTH L
+VPP6
R810 100K
REC_L
+VPP4
C805
22uF/25V
RR
R805 4.7K
5 6
7
IC801B 4558
REC_R
C806
22uF/25V
VR703A 50KB BALANCE
3
2
1
VR704A 50KA MASTER
R706 100K
C707
4.7uF/50V*
3 2
1
8 4
IC702A
4558
-VPP6
C709 47pF
R707
1K
R708 7.5K
MAST_L MAST_R
5 6
7
IC702B
4558
R807
1K
R808 7.5K
VR704B 50KA MASTER
R806 100K
C807
4.7uF/50V*
REC_R
VR703B 50KB BALANCE
3
2
1
1 2 3
P3
HEADER 3
REC_L REC_R
C809 47pF
