00053678.DOC, Version 1.2
23/28

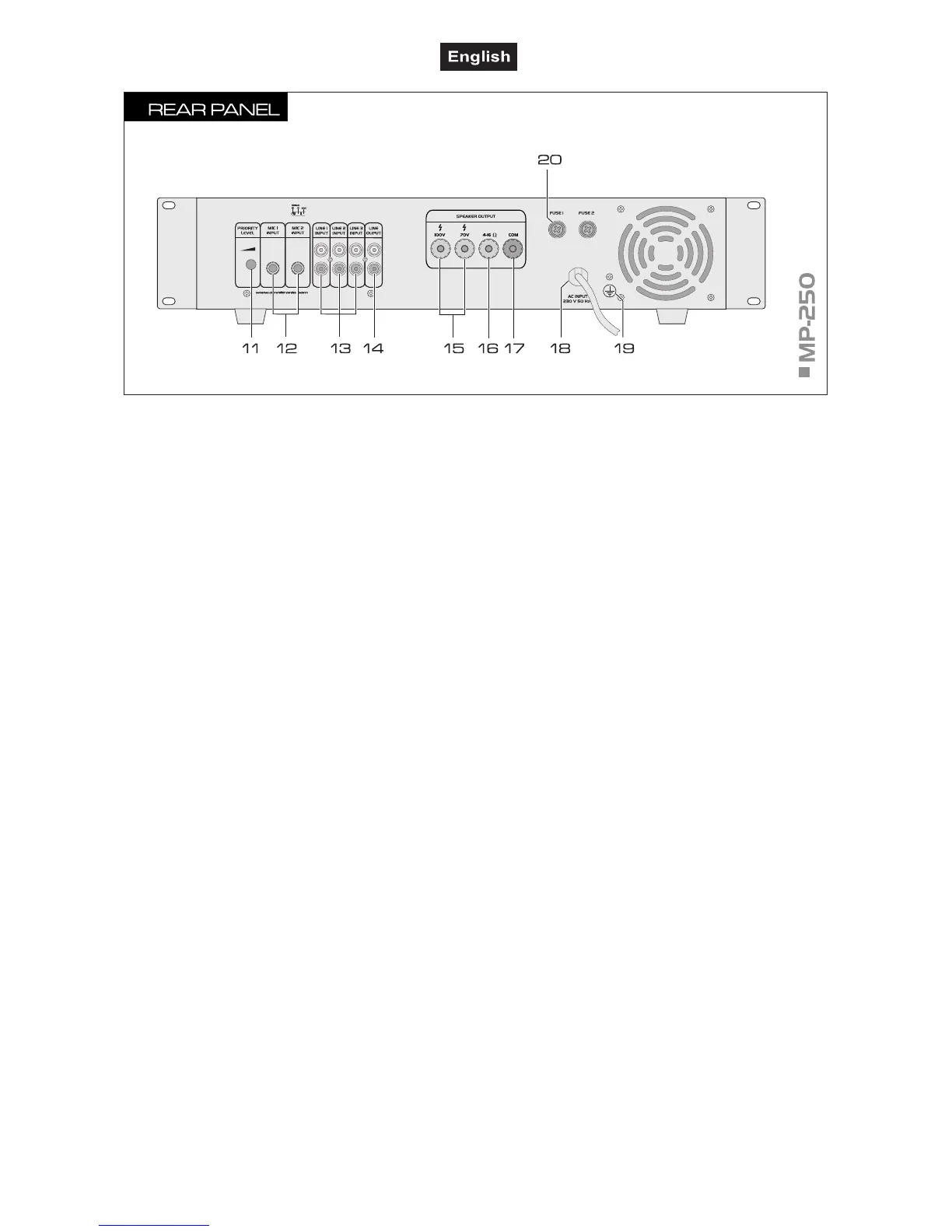

11
Control PRIORITY LEVEL
Adjusts the attenuation level when releasing the chime
and in case of microphone announcements via
microphone channel 3.
12 Inputs MIC 1 and MIC 2
6.3 mm jacks for connecting dynamic microphones.
13 Inputs LINE 1 to 3
Stereo RCA inputs for connecting units with line level
(e.g. CD player).
14 Output LINE
Stereo RCA output for connection to units with line
level inputs (e.g. mixer, amplifier).
15 Screw connectors for 70 V and 100 V speakers
16
Screw connector for 4 to 16 speakers
17 Common ground connection COM for all
speakers
18 Mains cable
For connection to a mains outlet.
19 Clamping screw
For a potential ground connection.
20 Mains fuse 1 and 2
Only replace fuses when the unit is disconnected from the
mains. Only use fuses of the same rating and power. The
correct fuse value is specified on the rear panel.
