Great for crossbows
& vertical bows!

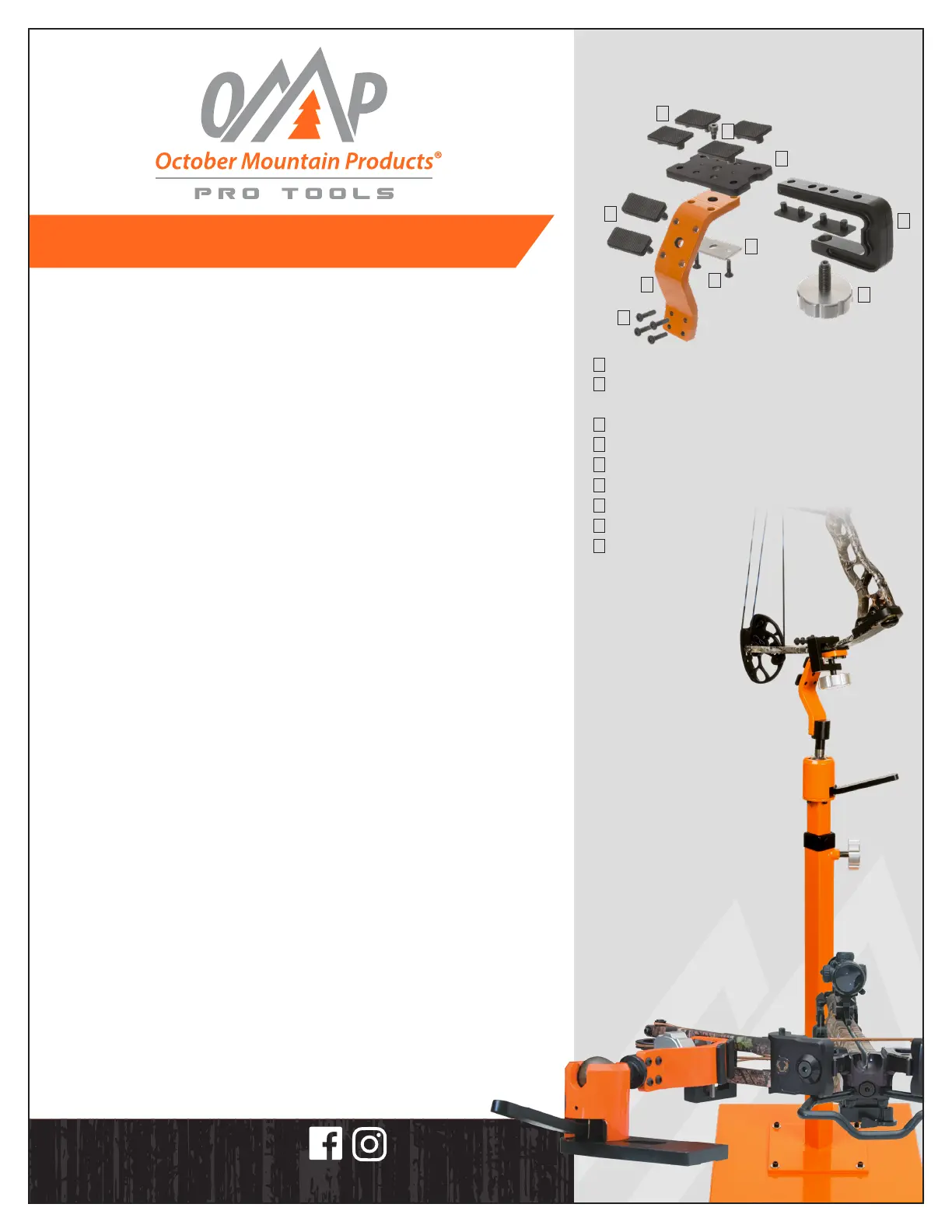

Main Beam
Main Beam Screws
(4, 10-32 x 7/8" Button Head Screws)
Guide Plate
Cushioning Pads
C-Frame
Mounting Plate
Tightening Knob
Shoulder Screw
Countersunk Screws
(2, 10-32 x 5/8)
1
1
7
5
4
9
2
6
4
8
3
1
2
3
4
5
6
7
8
9
Versa-Cradle Wide Limb Adapter
Assembly Instructions
Remove Narrow Limb Clamp Assembly
*
:
1. Access the Shoulder Screw (8) through the top of the C-Bracket’s Shoulder Screw
access hole. Hold the Tightening Knob (7) tightly and completely remove the
Shoulder Screw. Once the Shoulder Screw is removed the clamp assembly can
be removed from the Main Beam (1).
2. Reinstall the Shoulder Screw into the Tightening Knob to reassemble the unit.
Store for future use.
3. Remove the limb pads from the Main Beam.
*
requires 1/8” hex wrench (included)
Install the Wide Limb Adapter
*
:
1. Align the Main Beam (1) top front and the Guide Plate (3) bottom side cutout so
that the two components align.
2. While holding the Guide Plate in place, position the Mounting Plate (6) on
the bottom side of the Main Beam and align the ( 2, 10-32 x 5/8 ) holes.
3. Fasten the Guide Plate, Main Beam and Mounting Plate together using the
two ( 2, 10-32 x 5/8 ) fasteners (tighten until snug, up to ¼" turn to tighten).
4. Remove the Shoulder Screw (8) from the Tightening Knob (7).
5. Slide C-Frame assembly (5) into place and align C-Frame with Wide Limb
Adapter C-Frame guide cutout.
6. Insert the Shoulder Screw and tighten.
7. Test the unit for smoothness of operation, ensuring the assembly does
nothave catch points.
*requires 1/8” hex wrench (included)
To Mount the Bow Vise:
The Versa-Cradle Archery Bow Vise can be mounted using either the four wood screws
(provided), or using bolts. (If leather or rubber is used under the base to help protect the nish
of ne benches or counter tops, please make sure that it is secure before mounting a bow.)
To Mount the Bow:
1. Simply loosen the Tightening Knob (7) and slide one of the limbs between the opposing
Cushioning Pads (4) as shown. Make sure that the bow is centered and straight, and that
nothing on the limb will interfere with the clamping mechanism.
2. Tighten the knob until it holds the bow rmly. Always hold the bow with one hand while
tightening or loosening the Handle and Tightening Knob. You are now free to move your
bow to almost any position.
