Omron 3G3MX2-A4015-V1 Replacing Guide

13
AE015 110 189 159.4 98 176 Φ5 AB015-V1 108 128 170.5 96 118 Φ4.5
AE022 110 189 159.4 98 176 Φ5 AB022-V1 108 128 170.5 96 118 Φ4.5
*1. When using 3G3JX-AE□ with 3-phase 200 V input, select from 3G3MX2-V1 3-phase 200 V input
specifications.
*2. When using 3G3JX-AE□ with single-phase 200 V input, select from 3G3MX2-V1 single-phase 200 V
input specifications.

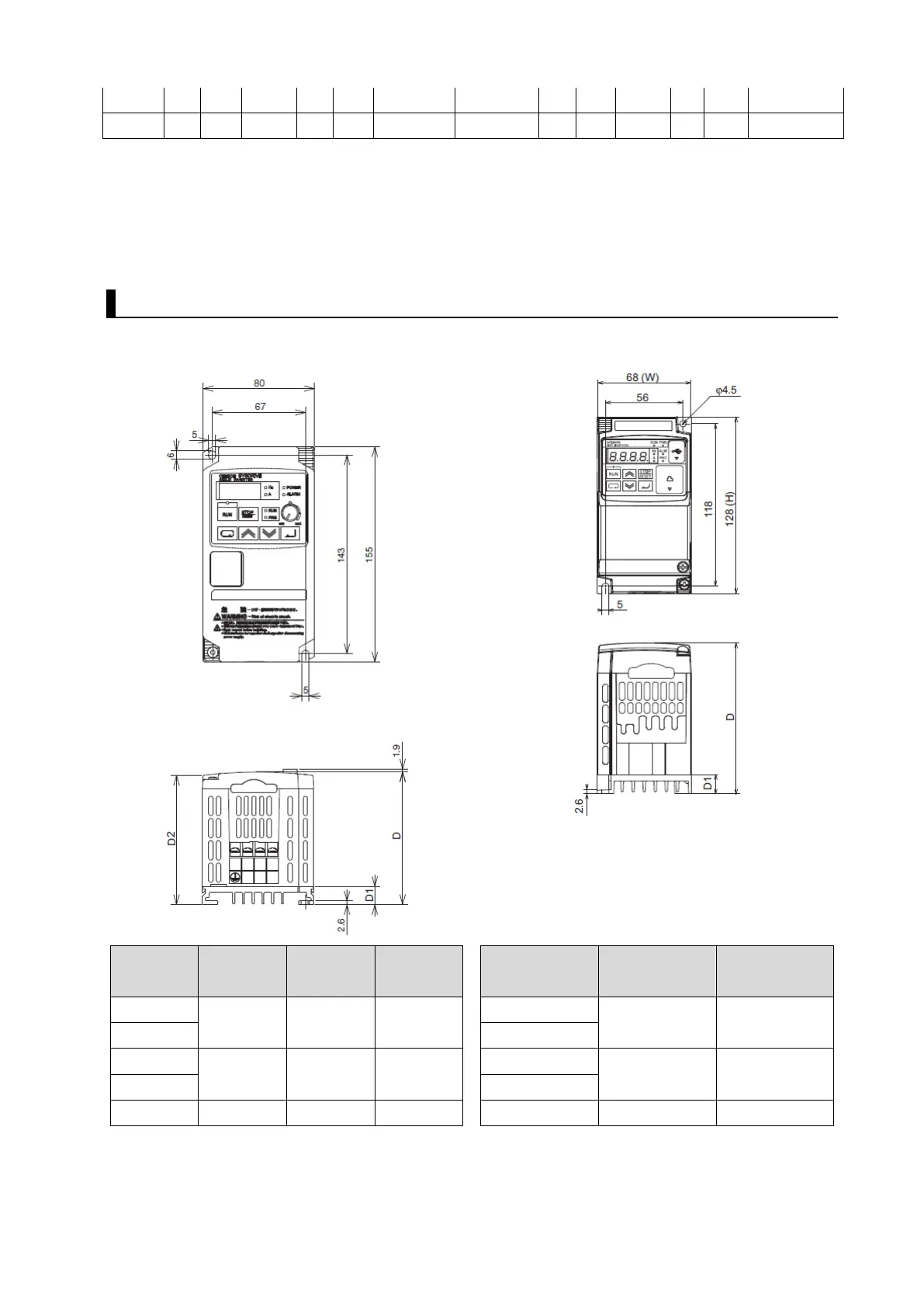

3.2.
External Dimensions
3G3JX Series 3G3MX2-V1 Series
Model
3G3JX-
D [mm]
D1 [mm]
D2 [mm]
A2002
95.5 13 93
AE002
A2004
109.5 27 107
AE004
A2007 132 50 130
Model
3G3MX2-
D [mm]
D1 [mm]
A2002-V1
109 13.5
AB002-V1
A2004-V1
122.5 27
AB004-V1
A2007-V1 145.5 50
